Suzuki DF 15 Parts Listings - 1998
S/N 01501F-861001 to 01501F-86XXXX

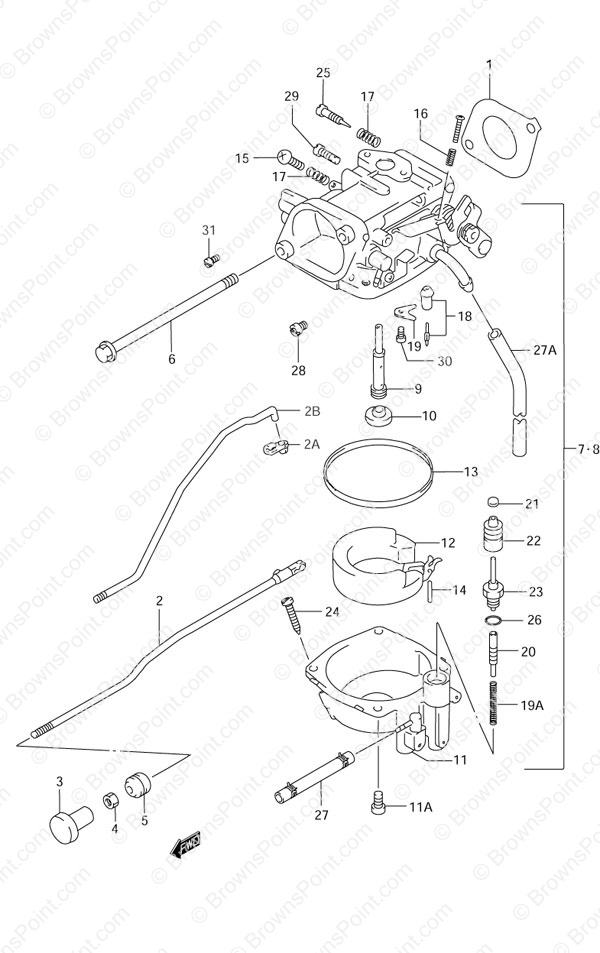

Fig. 8 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13125-95D30 Carburetor Gasket
SKU: 13125-95D30 Weight: 0.060000 Brand: Price: $ 4.18 |
Carburetor Gasket | 1 | $ 4.18 | ||
| 2A | 09403-04306 Connector (NLA)
SKU: 09403-04306 Weight: 0.060000 Brand: Price: $ 2.15 |
Connector (NLA) | 1 | $ 2.15 | ||
| 2B | 13413-93E10 Choke Rod (NLA)
SKU: 13413-93E10 Weight: 0.100000 Brand: Price: $ 6.90 |
Choke Rod (NLA) | 1 | $ 6.90 | ||
| 3 | 13631-93501 Starter Knob
SKU: 13631-93501 Weight: 0.060000 Brand: Price: $ 4.52 |
Starter Knob | 1 | $ 4.52 | ||
| 4 | 09140-04007 Nut
SKU: 09140-04007 Weight: 0.060000 Brand: Price: $ 2.28 |
Nut | 1 | $ 2.28 | ||
| 5 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 1 | $ 1.60 | ||
| 6 | 01550-06957 BOLT
SKU: 01550-06957 Weight: 0.060000 Brand: Price: $ 3.89 |
BOLT | 2 | $ 3.89 | ||
| 8 | 13200-93E51 Carburetor Assembly
SKU: 13200-93E51 Weight: 1.000000 Brand: Price: $ 505.82 |
Carburetor Assembly | 1 | $ 505.82 | ||
| 9 | 13235-95D20 Main Nozzle
SKU: 13235-95D20 Weight: 0.060000 Brand: Price: $ 23.38 |
Main Nozzle | 1 | $ 23.38 | ||
| 10 | 13239-95D00 Main Nozzle Cap
SKU: 13239-95D00 Weight: 0.060000 Brand: Price: $ 4.89 |
Main Nozzle Cap | 1 | $ 4.89 | ||
| 11 | 13245-93E01 Float Chamber
SKU: 13245-93E01 Weight: 0.250000 Brand: Price: $ 106.61 |
Float Chamber | 1 | $ 106.61 | ||
| 11A | 13249-89J00 Screw (NLA)
SKU: 13249-89J00 Weight: 0.100000 Brand: Price: $ 2.93 |
Screw (NLA) | 4 | $ 2.93 | ||
| 12 | 13250-95D01 Carburetor Float
SKU: 13250-95D01 Weight: 0.060000 Brand: Price: $ 28.86 |
Carburetor Float | 1 | $ 28.86 | ||
| 13 | 13251-95D00 Float Chamber Gasket
SKU: 13251-95D00 Weight: 0.060000 Brand: Price: $ 8.02 |
Float Chamber Gasket | 1 | $ 8.02 | ||
| 14 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 15 | 13267-93900 Screw
SKU: 13267-93900 Weight: 0.060000 Brand: Price: $ 3.29 |
Screw | 1 | $ 3.29 | ||
| 16 | 13268-92910 Spring
SKU: 13268-92910 Weight: 0.060000 Brand: Price: $ 2.44 |
Spring | 1 | $ 2.44 | ||
| 17 | 13268-96111 Spring
SKU: 13268-96111 Weight: 0.060000 Brand: Price: $ 4.61 |
Spring | 2 | $ 4.61 | ||
| 18 | 13370-95D00 Needle Valve
SKU: 13370-95D00 Weight: 0.060000 Brand: Price: $ 46.53 |
Needle Valve | 1 | $ 46.53 | ||
| 19 | 13373-46710 Needle Valve Plate
SKU: 13373-46710 Weight: 0.200000 Brand: Price: $ 5.53 |
Needle Valve Plate | 1 | $ 5.53 | ||
| 19A | 13441-89J00 Spring
SKU: 13441-89J00 Weight: 0.060000 Brand: Price: $ 2.94 |
Spring | 1 | $ 2.94 | ||
| 20 | 13493-20E20 Plunger
SKU: 13493-20E20 Weight: 0.060000 Brand: Price: $ 9.10 |
Plunger | 1 | $ 9.10 | ||
| 21 | 13495-09400 Cap
SKU: 13495-09400 Weight: 0.060000 Brand: Price: $ 3.17 |
Cap | 1 | $ 3.17 | ||
| 22 | 13495-18E00 Cap
SKU: 13495-18E00 Weight: 0.060000 Brand: Price: $ 11.45 |
Cap | 1 | $ 11.45 | ||
| 23 | 13496-20E20 Holder Guide
SKU: 13496-20E20 Weight: 0.060000 Brand: Price: $ 13.26 |
Holder Guide | 1 | $ 13.26 | ||
| 24 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 1 | $ 6.36 | ||
| 25 | 13662-93E10 Adjuster
SKU: 13662-93E10 Weight: 0.060000 Brand: Price: $ 9.37 |
Adjuster | 1 | $ 9.37 | ||
| 26 | 09280-08014 O-Ring
SKU: 09280-08014 Weight: 0.060000 Brand: Price: $ 1.91 |
O-Ring | 1 | $ 1.91 | ||
| 27 | 13651-93E01 HOSE
SKU: 13651-93E01 Weight: 0.000000 Brand: Price: $ 5.19 |
HOSE | 1 | $ 5.19 | ||
| 27A | 09352-30503-600 Hose
SKU: 09352-30503-600 Weight: 0.060000 Brand: Price: $ 5.50 |
Hose | 1 | $ 5.50 | L:600->200 | |
| 28 | 09491-24022 Main Jet #123.8
SKU: 09491-24022 Weight: 0.060000 Brand: Price: $ 15.59 |
Main Jet #123.8 | 1 | $ 15.59 | ||
| 29 | 09492-47020 Pilot Jet #47.5
SKU: 09492-47020 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #47.5 | 1 | $ 15.58 | ||
| 30 | 02112-0306B SCREW
SKU: 02112-0306B Weight: 0.060000 Brand: Price: $ 1.60 |
SCREW | 1 | $ 1.60 | ||
| 31 | 09493-24007 Air Jet #1.2
SKU: 09493-24007 Weight: 0.060000 Brand: Price: $ 14.52 |
Air Jet #1.2 | 1 | $ 14.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
