Suzuki DF 15 Parts Listings - 1996
S/N 01501F-651001 to 01501F-65XXXX

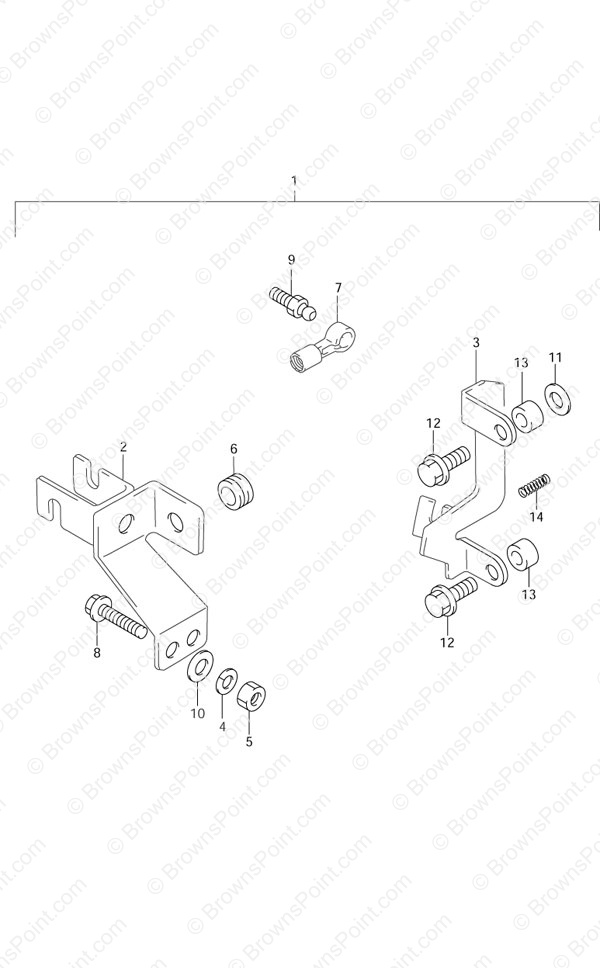

Fig. 49 - Opt: Remote Control Parts S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67130-93E01 Remote Control Parts Kit
SKU: 67130-93E01 Weight: 5.000000 Brand: Price: $ 257.02 |
Remote Control Parts Kit | 1 | $ 257.02 | ||
| 2 | 67340-93E00 Remocon Cable Holder (NLA)
SKU: 67340-93E00 Weight: 0.100000 Brand: Price: $ 71.31 |
Remocon Cable Holder (NLA) | 1 | $ 71.31 | ||
| 3 | 67350-93E20 Throttle Cable Holder
SKU: 67350-93E20 Weight: 0.250000 Brand: Price: $ 29.96 |
Throttle Cable Holder | 1 | $ 29.96 | ||
| 4 | 09162-06006 Lock Washer
SKU: 09162-06006 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer | 2 | $ 1.49 | ||
| 5 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 2 | $ 1.82 | ||
| 6 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | ||
| 7 | 67466-95200 Cable Connector
SKU: 67466-95200 Weight: 0.060000 Brand: Price: $ 5.35 |
Cable Connector | 2 | $ 5.35 | ||
| 8 | 09100-06121 Bolt (6x30) (NLA)
SKU: 09100-06121 Weight: 0.060000 Brand: Price: $ 1.22 |
Bolt (6x30) (NLA) | 2 | $ 1.22 | ||
| 9 | 09119-06047 Pivot Ball
SKU: 09119-06047 Weight: 0.060000 Brand: Price: $ 6.99 |
Pivot Ball | 1 | $ 6.99 | ||
| 10 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 4 | $ 1.44 | ||
| 11 | 09160-08059 Washer (8.5x18x1.6)
SKU: 09160-08059 Weight: 0.060000 Brand: Price: $ 1.69 |
Washer (8.5x18x1.6) | 1 | $ 1.69 | ||
| 12 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 13 | 09180-08132 Spacer (NLA)
SKU: 09180-08132 Weight: 0.100000 Brand: Price: $ 2.61 |
Spacer (NLA) | 2 | $ 2.61 | ||
| 14 | 09440-07021 Spring
SKU: 09440-07021 Weight: 0.060000 Brand: Price: $ 1.56 |
Spring | 1 | $ 1.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
