Suzuki DF 15 Parts Listings - 1996
S/N 01501F-651001 to 01501F-65XXXX

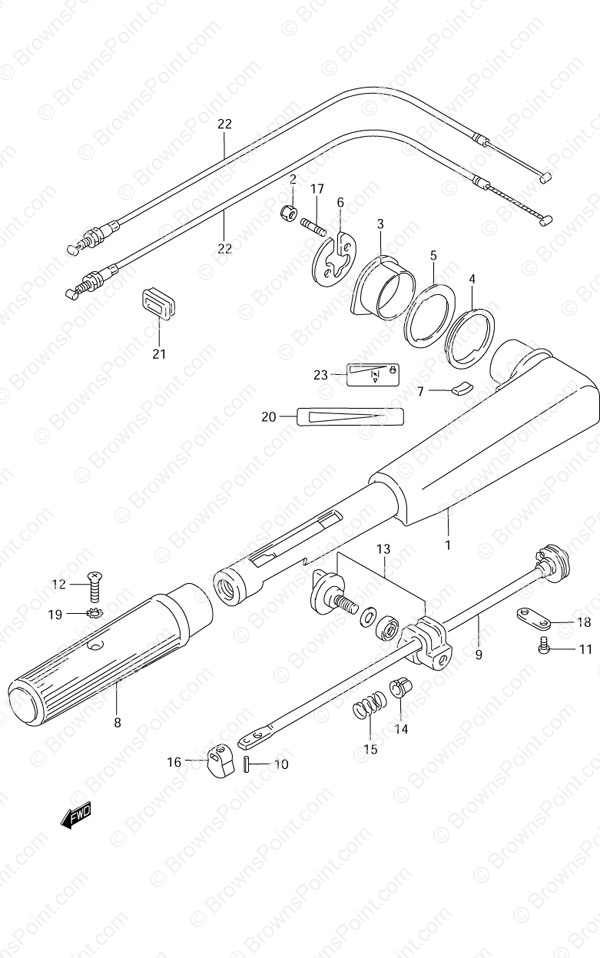

Fig. 39 - Tiller Handle S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-92D10-Z11 Tiller Handle (NLA)
SKU: 63111-92D10-Z11 Weight: 2.000000 Brand: Price: $ 90.36 |
Tiller Handle (NLA) | 1 | $ 90.36 | ||
| 2 | 09159-06079 Nut
SKU: 09159-06079 Weight: 0.250000 Brand: Price: $ 2.71 |
Nut | 2 | $ 2.71 | ||
| 3 | 63115-92D01 Tiller Handle Bushing
SKU: 63115-92D01 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Bushing | 1 | $ 5.38 | ||
| 4 | 63116-92D01 Tiller Handle Bushing
SKU: 63116-92D01 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Bushing | 1 | $ 5.38 | ||
| 5 | 63117-92D00 Tiller Handle Shim
SKU: 63117-92D00 Weight: 0.060000 Brand: Price: $ 5.38 |
Tiller Handle Shim | 1 | $ 5.38 | ||
| 6 | 63125-92D01 Tiller Handle Plate (NLA)
SKU: 63125-92D01 Weight: 0.060000 Brand: Price: $ 8.44 |
Tiller Handle Plate (NLA) | 1 | $ 8.44 | ||
| 7 | 63129-93E10 Tiller Handle Spacer (NLA)
SKU: 63129-93E10 Weight: 0.100000 Brand: Price: $ 6.07 |
Tiller Handle Spacer (NLA) | 1 | $ 6.07 | ||
| 8 | 63210-93E30 Handle Grip
SKU: 63210-93E30 Weight: 1.500000 Brand: Price: $ 34.82 |
Handle Grip | 1 | $ 34.82 | ||
| 9 | 63220-92D03 Handle Rod (NLA)
SKU: 63220-92D03 Weight: 0.500000 Brand: Price: $ 38.48 |
Handle Rod (NLA) | 1 | $ 38.48 | ||
| 10 | 63227-93200 Handle Rod Pin
SKU: 63227-93200 Weight: 0.062500 Brand: Price: $ 2.18 |
Handle Rod Pin | 1 | $ 2.18 | ||
| 11 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 12 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 13 | 63240-96300 Handle Grip Adjuster
SKU: 63240-96300 Weight: 0.060000 Brand: Price: $ 13.03 |
Handle Grip Adjuster | 1 | $ 13.03 | ||
| 14 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 15 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 16 | 63223-89E00 Handle Rod Stopper (NLA)
SKU: 63223-89E00 Weight: 0.100000 Brand: Price: $ 3.77 |
Handle Rod Stopper (NLA) | 1 | $ 3.77 | ||
| 17 | 09108-06060 Stud Bolt (6x18)
SKU: 09108-06060 Weight: 0.060000 Brand: Price: $ 1.74 |
Stud Bolt (6x18) | 2 | $ 1.74 | ||
| 18 | 63241-92D00 Handle Rod Support (NLA)
SKU: 63241-92D00 Weight: 0.060000 Brand: Price: $ 3.18 |
Handle Rod Support (NLA) | 1 | $ 3.18 | ||
| 19 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 20 | 63215-93110 Handle Grip Mark
SKU: 63215-93110 Weight: 0.060000 Brand: Price: $ 3.19 |
Handle Grip Mark | 1 | $ 3.19 | ||
| 21 | 63625-96300 Throttle Cable Grommet
SKU: 63625-96300 Weight: 0.180000 Brand: Price: $ 3.21 |
Throttle Cable Grommet | 1 | $ 3.21 | ||
| 22 | 63610-93E00 Throttle Cable Assembly
SKU: 63610-93E00 Weight: 0.100000 Brand: Price: $ 19.07 |
Throttle Cable Assembly | 2 | $ 19.07 | ||
| 23 | 69714-93E11 Engine Start Mark
SKU: 69714-93E11 Weight: 0.060000 Brand: Price: $ 3.91 |
Engine Start Mark | 1 | $ 3.91 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
