Suzuki DF 15 Parts Listings - 1996
S/N 01501F-651001 to 01501F-65XXXX

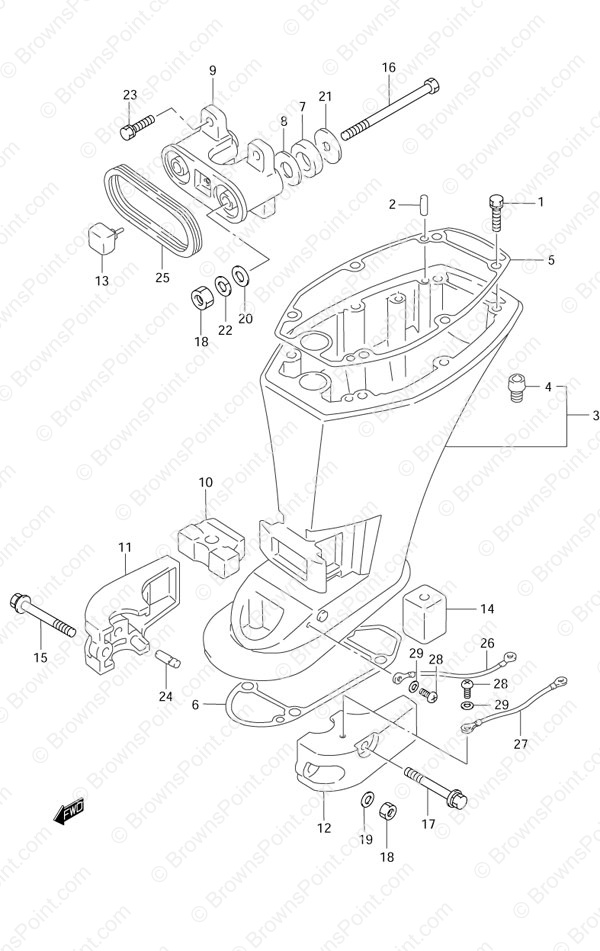

Fig. 29 - Drive Shaft Housing S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 6 | $ 5.05 | ||
| 2 | 09202-06023 Knock Pin (6x10)
SKU: 09202-06023 Weight: 0.060000 Brand: Price: $ 3.00 |
Knock Pin (6x10) | 2 | $ 3.00 | ||
| 3-1 | 52100-93844-Z11 Driveshaft Housing (S) (NLA)
SKU: 52100-93844-Z11 Weight: 0.100000 Brand: Price: $ 462.83 |
Driveshaft Housing (S) (NLA) | 1 | $ 462.83 | w/Transom (S) | |
| 3-2 | 52100-93831-Z11 Driveshaft Housing (L) (NLA)
SKU: 52100-93831-Z11 Weight: 10.000000 Brand: Price: $ 335.54 |
Driveshaft Housing (L) (NLA) | 1 | $ 335.54 | w/Transom (L) | |
| 4 | 43112-93E00 Driveshaft Housing Pipe
SKU: 43112-93E00 Weight: 0.060000 Brand: Price: $ 3.82 |
Driveshaft Housing Pipe | 1 | $ 3.82 | ||
| 5 | 52113-93E10 Drive Shaft Housing Gasket
SKU: 52113-93E10 Weight: 0.125000 Brand: Price: $ 13.69 |
Drive Shaft Housing Gasket | 1 | $ 13.69 | ||
| 6 | 55113-93E00 Gear Case Gasket
SKU: 55113-93E00 Weight: 0.060000 Brand: Price: $ 10.64 |
Gear Case Gasket | 1 | $ 10.64 | ||
| 7 | 54121-93E00 Upper Mount Cushion (NLA)
SKU: 54121-93E00 Weight: 0.100000 Brand: Price: $ 3.49 |
Upper Mount Cushion (NLA) | 2 | $ 3.49 | ||
| 8 | 09160-15046 Upper Mount Washer (NLA)
SKU: 09160-15046 Weight: 0.100000 Brand: Price: $ 1.63 |
Upper Mount Washer (NLA) | 2 | $ 1.63 | ||
| 9 | 54130-93E00 Upper Mount (NLA)
SKU: 54130-93E00 Weight: 1.000000 Brand: Price: $ 47.08 |
Upper Mount (NLA) | 2 | $ 47.08 | ||
| 10 | 54151-93900 Lower Thrust Mount
SKU: 54151-93900 Weight: 0.100000 Brand: Price: $ 11.53 |
Lower Thrust Mount | 1 | $ 11.53 | ||
| 11 | 54211-93911-Z11 Stbd Lower Mount Cover (NLA)
SKU: 54211-93911-Z11 Weight: 0.460000 Brand: Price: $ 49.33 |
Stbd Lower Mount Cover (NLA) | 1 | $ 49.33 | ||
| 12 | 54221-93911-Z11 Port Lower Mount Cover (NLA)
SKU: 54221-93911-Z11 Weight: 0.500000 Brand: Price: $ 49.33 |
Port Lower Mount Cover (NLA) | 1 | $ 49.33 | ||
| 13 | 54125-93E00 Upper Thrust Reverse Mount (NLA)
SKU: 54125-93E00 Weight: 0.100000 Brand: Price: $ 4.20 |
Upper Thrust Reverse Mount (NLA) | 1 | $ 4.20 | ||
| 14 | 54167-93E00 Lower Side Mount (NLA)
SKU: 54167-93E00 Weight: 0.100000 Brand: Price: $ 9.87 |
Lower Side Mount (NLA) | 2 | $ 9.87 | ||
| 15 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 1 | $ 7.86 | ||
| 16 | 09100-08213 Bolt (8x100)
SKU: 09100-08213 Weight: 0.100000 Brand: Price: $ 5.17 |
Bolt (8x100) | 2 | $ 5.17 | ||
| 17 | 09118-08137 Bolt (8x70) (NLA)
SKU: 09118-08137 Weight: 0.100000 Brand: Price: $ 5.57 |
Bolt (8x70) (NLA) | 2 | $ 5.57 | ||
| 18 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 3 | $ 2.52 | ||
| 19 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 20 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 21 | 09160-08116 Washer (NLA)
SKU: 09160-08116 Weight: 0.100000 Brand: Price: $ 2.26 |
Washer (NLA) | 2 | $ 2.26 | ||
| 22 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 3 | $ 1.49 | ||
| 23 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 4 | $ 5.05 | ||
| 24 | 54213-93901 Knock Pin
SKU: 54213-93901 Weight: 0.060000 Brand: Price: $ 8.19 |
Knock Pin | 2 | $ 8.19 | ||
| 25 | 54144-93E00 Upper Mount Port Seal
SKU: 54144-93E00 Weight: 0.100000 Brand: Price: $ 7.45 |
Upper Mount Port Seal | 1 | $ 7.45 | ||
| 26 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | Mount to Housing | |
| 27 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | Swivel to Mount | |
| 28 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 3 | $ 1.88 | ||
| 29 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 3 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
