Suzuki DF 15 Parts Listings - 1996
S/N 01501F-651001 to 01501F-65XXXX

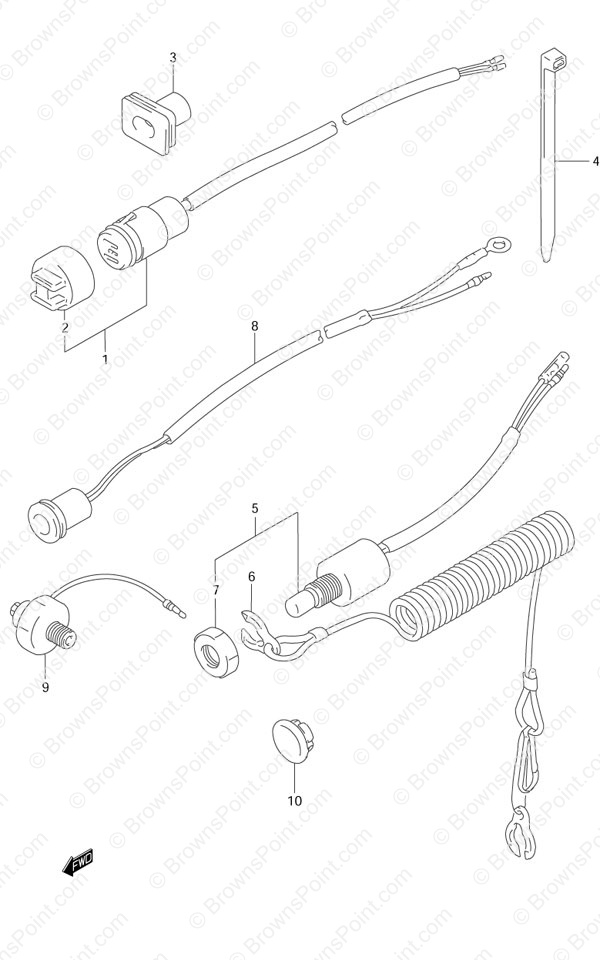

Fig. 24 - Electrical (1) S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 39601-95D00 Lighting Receptacle Assembly
SKU: 39601-95D00 Weight: 0.250000 Brand: Price: $ 39.79 |
Lighting Receptacle Assembly | 1 | $ 39.79 | w/Manual Starter | |
| 2 | 36634-93910 Connector Cap
SKU: 36634-93910 Weight: 0.060000 Brand: Price: $ 4.66 |
Connector Cap | 1 | $ 4.66 | w/Manual Starter | |
| 3 | 39603-94400 Receptacle Grommet (NLA)
SKU: 39603-94400 Weight: 0.100000 Brand: Price: $ 6.73 |
Receptacle Grommet (NLA) | 1 | $ 6.73 | w/Manual Starter | |
| 4-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | w/Manual Starter | |
| 4-2 | 09407-25402 Clamp (L:248)
SKU: 09407-25402 Weight: 0.100000 Brand: Price: $ 4.73 |
Clamp (L:248) | 1 | $ 4.73 | w/Manual Starter | |
| 5 | 37830-95D03 Emergency Stop Switch Assembly
SKU: 37830-95D03 Weight: 0.250000 Brand: Price: $ 45.92 |
Emergency Stop Switch Assembly | 1 | $ 45.92 | ||
| 6 | 37823-92E02 Stop Switch Lanyard
SKU: 37823-92E02 Weight: 0.250000 Brand: Price: $ 19.68 |
Stop Switch Lanyard | 1 | $ 19.68 | ||
| 7 | 37826-92E00 Nut
SKU: 37826-92E00 Weight: 0.060000 Brand: Price: $ 5.77 |
Nut | 1 | $ 5.77 | ||
| 8 | 36360-93E00 Oil Level Indicator (NLA)
SKU: 36360-93E00 Weight: 0.100000 Brand: Price: $ 31.72 |
Oil Level Indicator (NLA) | 1 | $ 31.72 | ||
| 9 | 37820-80002 Oil Pressure Switch Assembly
SKU: 37820-80002 Weight: 0.250000 Brand: Price: $ 21.02 |
Oil Pressure Switch Assembly | 1 | $ 21.02 | ||
| 10 | 09250-13005 Plug (NLA)
SKU: 09250-13005 Weight: 0.100000 Brand: Price: $ 2.03 |
Plug (NLA) | 1 | $ 2.03 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
