Suzuki DF 9.9 Parts Listings - 2000
S/N 00991F-030001 to 00991F-03XXXX

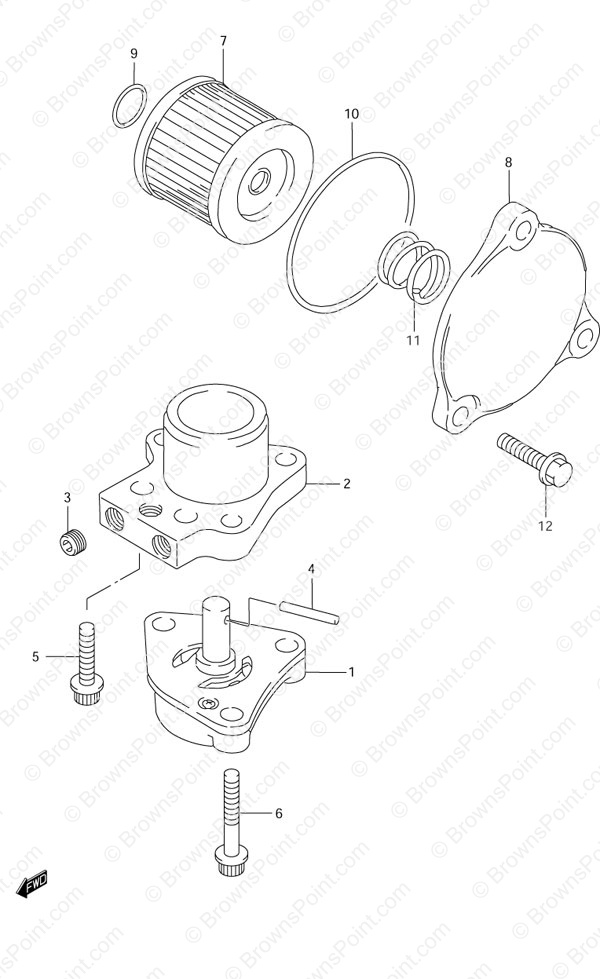

Fig. 15 - Oil Pump

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 16400-93EL0 Oil Pump Assembly 1 $ 163.68
2 16430-93E00 Oil Gallery Block Assembly (NLA) 1 $ 28.80

Not Available

3 09246-04009 Plug 2 $ 3.68
4 09261-03016 Pin (NLA) 1 $ 0.54

Not Available

5 07120-06257 BOLT 1 $ 3.11
6 07120-06357 Bolt (NLA) 3 $ 2.20

Not Available

7 16510-05240 Engine Oil Filter 1 $ 6.64
8 16512-93E00-0EP Oil Filter Cap (NLA) 1 $ 20.05

Not Available

9 09280-13004 Oil Pump O-Ring 1 $ 2.19
10 09280-54001 Oil Filter O-Ring 1 $ 3.82
11 09440-18002 Spring 1 $ 1.11
12 01550-06207 BOLT 3 $ 2.33

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
