Suzuki DF 9.9 Parts Listings - 1998
S/N 00991F-861001 to 00991F-86XXXX

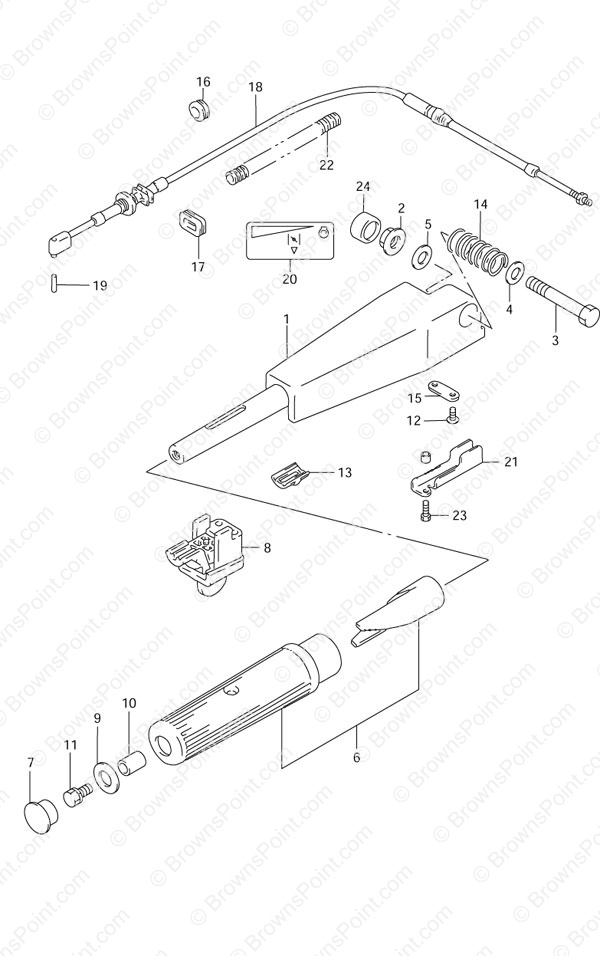

Fig. 40 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 63111-93E10-Z11 Tiller Handle (NLA)
SKU: 63111-93E10-Z11 Weight: 1.000000 Brand: Price: $ 115.21 |
Tiller Handle (NLA) | 1 | $ 115.21 | ||
| 2 | 09159-10050 Nut
SKU: 09159-10050 Weight: 0.060000 Brand: Price: $ 2.59 |
Nut | 1 | $ 2.59 | ||
| 3 | 09100-10208 Bolt (10x70)
SKU: 09100-10208 Weight: 0.200000 Brand: Price: $ 11.13 |
Bolt (10x70) | 1 | $ 11.13 | ||
| 4 | 09160-10097 Washer (10.5x22x2.5)
SKU: 09160-10097 Weight: 0.060000 Brand: Price: $ 2.36 |
Washer (10.5x22x2.5) | 1 | $ 2.36 | ||
| 5 | 09161-10012 Washer (10.5x32x1.5) (NLA)
SKU: 09161-10012 Weight: 0.060000 Brand: Price: $ 2.12 |
Washer (10.5x32x1.5) (NLA) | 1 | $ 2.12 | ||
| 6 | 63200-93E00 Handle Grip Assembly
SKU: 63200-93E00 Weight: 0.460000 Brand: Price: $ 41.87 |
Handle Grip Assembly | 1 | $ 41.87 | ||
| 7 | 63213-94400 Stop Switch Cap
SKU: 63213-94400 Weight: 0.060000 Brand: Price: $ 7.13 |
Stop Switch Cap | 1 | $ 7.13 | ||
| 8 | 63240-93E00 Handle Grip Adjuster
SKU: 63240-93E00 Weight: 0.120000 Brand: Price: $ 41.00 |
Handle Grip Adjuster | 1 | $ 41.00 | ||
| 9 | 09160-08081 Washer (8.5x23x1.5)
SKU: 09160-08081 Weight: 0.060000 Brand: Price: $ 2.68 |
Washer (8.5x23x1.5) | 1 | $ 2.68 | ||
| 10 | 09180-08173 Spacer
SKU: 09180-08173 Weight: 0.060000 Brand: Price: $ 7.57 |
Spacer | 1 | $ 7.57 | ||
| 11 | 09117-08071 Bolt (8x35)
SKU: 09117-08071 Weight: 0.060000 Brand: Price: $ 6.05 |
Bolt (8x35) | 1 | $ 6.05 | ||
| 12 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 13 | 63241-93E00 Handle Grip Adjuster
SKU: 63241-93E00 Weight: 0.060000 Brand: Price: $ 4.10 |
Handle Grip Adjuster | 1 | $ 4.10 | ||
| 14 | 09440-22008 Spring
SKU: 09440-22008 Weight: 0.060000 Brand: Price: $ 11.89 |
Spring | 1 | $ 11.89 | ||
| 15 | 63241-92D00 Handle Rod Support (NLA)
SKU: 63241-92D00 Weight: 0.060000 Brand: Price: $ 3.18 |
Handle Rod Support (NLA) | 1 | $ 3.18 | ||
| 16 | 09308-08013 Grommet
SKU: 09308-08013 Weight: 0.060000 Brand: Price: $ 1.26 |
Grommet | 1 | $ 1.26 | ||
| 17 | 63625-94300 Throttle Cable Cap
SKU: 63625-94300 Weight: 0.060000 Brand: Price: $ 3.35 |
Throttle Cable Cap | 1 | $ 3.35 | w/Remote Control | |
| 18 | 63610-93E20 Throttle Cable Assembly
SKU: 63610-93E20 Weight: 0.260000 Brand: Price: $ 92.51 |
Throttle Cable Assembly | 1 | $ 92.51 | ||
| 19 | 63216-93E00 Throttle Cable Pin
SKU: 63216-93E00 Weight: 0.060000 Brand: Price: $ 3.68 |
Throttle Cable Pin | 1 | $ 3.68 | ||
| 20 | 69714-93E11 Engine Start Mark
SKU: 69714-93E11 Weight: 0.060000 Brand: Price: $ 3.91 |
Engine Start Mark | 1 | $ 3.91 | ||
| 21 | 63125-93E01 Tiller Handle Stopper
SKU: 63125-93E01 Weight: 1.400000 Brand: Price: $ 8.86 |
Tiller Handle Stopper | 1 | $ 8.86 | ||
| 22 | 63615-93E00 Throttle Cable Tube
SKU: 63615-93E00 Weight: 0.060000 Brand: Price: $ 3.77 |
Throttle Cable Tube | 1 | $ 3.77 | ||
| 23 | 09100-06131 Bolt (6x12)
SKU: 09100-06131 Weight: 0.060000 Brand: Price: $ 2.10 |
Bolt (6x12) | 1 | $ 2.10 | ||
| 24 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 1 | $ 3.56 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
