Suzuki DF 9.9 Parts Listings - 1997
S/N 00991F-751001 to 00991F-75XXXX

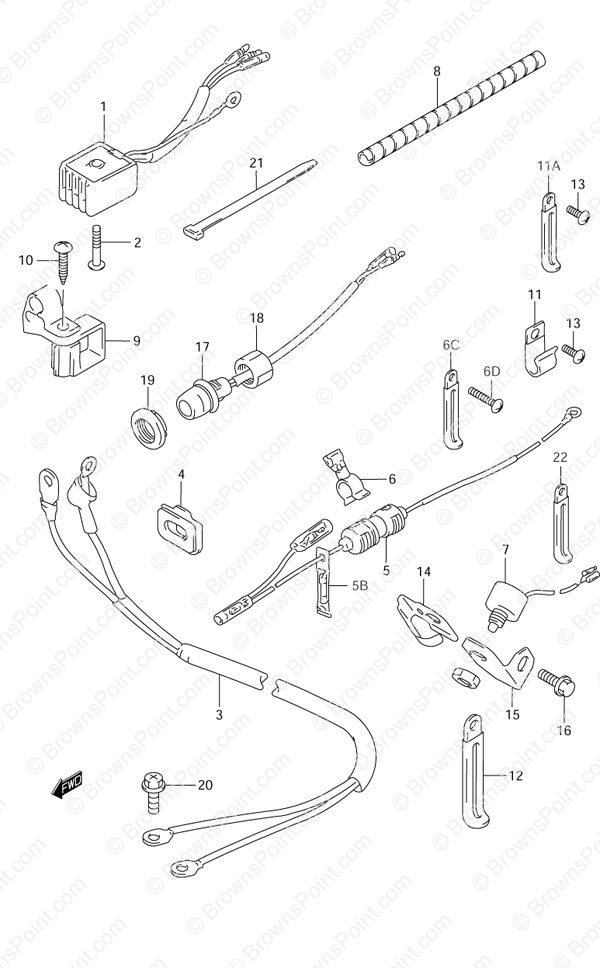

Fig. 23 - Rectifier
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | w/Electric Starter | |
| 2 | 02142-05307 SCREW
SKU: 02142-05307 Weight: 0.060000 Brand: Price: $ 2.37 |
SCREW | 1 | $ 2.37 | w/Electric Starter | |
| 3 | 33810-93E02 Starter Motor Cable
SKU: 33810-93E02 Weight: 2.000000 Brand: Price: $ 98.87 |
Starter Motor Cable | 1 | $ 98.87 | w/Electric Starter | |
| 4 | 33811-96300 Grommet (NLA)
SKU: 33811-96300 Weight: 0.100000 Brand: Price: $ 1.94 |
Grommet (NLA) | 1 | $ 1.94 | w/Electric Starter | |
| 5 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | w/Electric Starter | |
| 5B | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 6D | 02142-05127 SCREW
SKU: 02142-05127 Weight: 0.200000 Brand: Price: $ 1.97 |
SCREW | 1 | $ 1.97 | ||
| 7 | 37721-93E03 Neutral Switch Assembly
SKU: 37721-93E03 Weight: 0.120000 Brand: Price: $ 33.62 |
Neutral Switch Assembly | 1 | $ 33.62 | ||
| 8 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 9 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | w/Remote Control | |
| 10 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | w/Remote Control | |
| 11 | 09403-16411 Clamp (NLA)
SKU: 09403-16411 Weight: 0.100000 Brand: Price: $ 2.90 |
Clamp (NLA) | 1 | $ 2.90 | ||
| 12 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | w/Electric Starter | |
| 13 | 09125-06069 Screw (6x12)
SKU: 09125-06069 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x12) | 2 | $ 2.09 | ||
| 14 | 37725-94302 Neutral Switch Actuator
SKU: 37725-94302 Weight: 0.060000 Brand: Price: $ 5.35 |
Neutral Switch Actuator | 1 | $ 5.35 | ||
| 15 | 37726-95D02 Switch Bracket
SKU: 37726-95D02 Weight: 0.100000 Brand: Price: $ 6.21 |
Switch Bracket | 1 | $ 6.21 | ||
| 16 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 17 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | w/Electric Starter | |
| 18 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | w/Electric Starter | |
| 19 | 09250-15010 Plug
SKU: 09250-15010 Weight: 0.060000 Brand: Price: $ 1.88 |
Plug | 1 | $ 1.88 | ||
| 20 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 21 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | w/Electric Starter |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
