Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

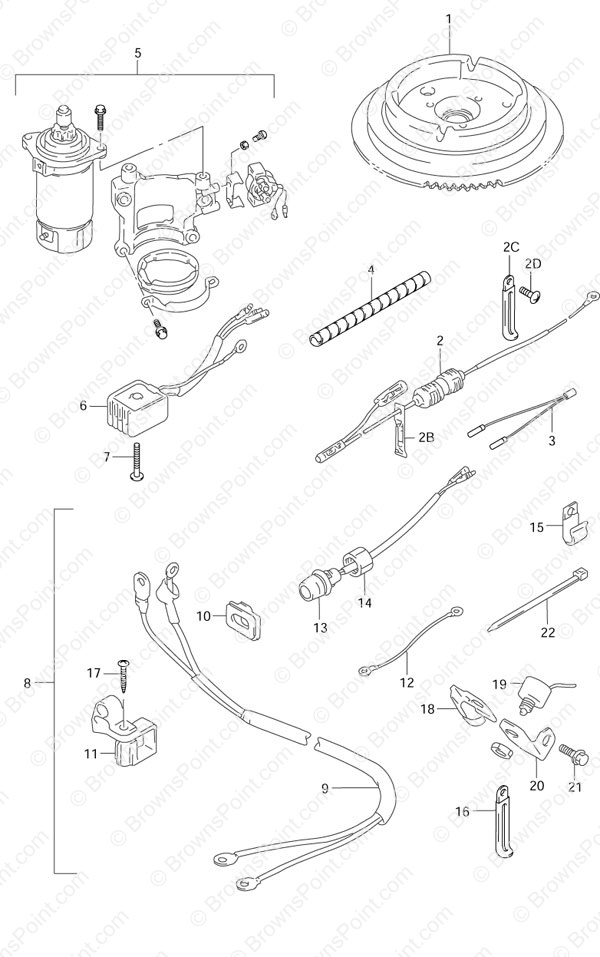

Fig. 45 - Opt: Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-93E00 Flywheel (NLA)
SKU: 32102-93E00 Weight: 0.100000 Brand: Price: $ 256.90 |
Flywheel (NLA) | 1 | $ 256.90 | ||
| 2 | 36740-94771 Fuse Case Assembly (NLA)
SKU: 36740-94771 Weight: 0.100000 Brand: Price: $ 25.52 |
Fuse Case Assembly (NLA) | 1 | $ 25.52 | Electric Starter | |
| 2B | 09481-25001 25 Amp Fuse
SKU: 09481-25001 Weight: 0.060000 Brand: Price: $ 2.06 |
25 Amp Fuse | 1 | $ 2.06 | ||
| 2C | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | ||
| 2D | 02142-05127 SCREW
SKU: 02142-05127 Weight: 0.200000 Brand: Price: $ 1.97 |
SCREW | 1 | $ 1.97 | ||
| 3 | 36810-93E20 Neutral Limit Lead (NLA)
SKU: 36810-93E20 Weight: 0.100000 Brand: Price: $ 5.96 |
Neutral Limit Lead (NLA) | 1 | $ 5.96 | S/N 652501 to 65XXXX | |
| 4 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 2 | $ 7.13 | ||
| 6 | 32800-95D02 Rectifier & Regulator Assembly
SKU: 32800-95D02 Weight: 0.250000 Brand: Price: $ 89.98 |
Rectifier & Regulator Assembly | 1 | $ 89.98 | ||
| 7 | 02142-05307 SCREW
SKU: 02142-05307 Weight: 0.060000 Brand: Price: $ 2.37 |
SCREW | 1 | $ 2.37 | ||
| 8-1 | 33800-93E00 Cable & Switch Set (NLA)
SKU: 33800-93E00 Weight: 0.100000 Brand: Price: $ 119.90 |
Cable & Switch Set (NLA) | 1 | $ 119.90 | S/N 651001 to 652500 | |
| 8-2 | 33800-93E10 Cable & Switch Set (NLA)
SKU: 33800-93E10 Weight: 5.000000 Brand: Price: $ 83.62 |
Cable & Switch Set (NLA) | 1 | $ 83.62 | S/N 652501 to 65XXXX | |
| 9 | 33810-93E02 Starter Motor Cable
SKU: 33810-93E02 Weight: 2.000000 Brand: Price: $ 98.87 |
Starter Motor Cable | 1 | $ 98.87 | ||
| 10 | 33811-96300 Grommet (NLA)
SKU: 33811-96300 Weight: 0.100000 Brand: Price: $ 1.94 |
Grommet (NLA) | 1 | $ 1.94 | ||
| 11 | 33816-96300 Cable Clamp
SKU: 33816-96300 Weight: 0.060000 Brand: Price: $ 5.56 |
Cable Clamp | 1 | $ 5.56 | For Ref# 8-1 | |
| 12 | 33820-93E01 Starter Sub Cable (NLA)
SKU: 33820-93E01 Weight: 5.000000 Brand: Price: $ 7.74 |
Starter Sub Cable (NLA) | 1 | $ 7.74 | ||
| 13 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | ||
| 14 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 15 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 1 | $ 1.22 | For Ref# 8-1 | |
| 16-1 | 09404-08205 Clamp (L:62)
SKU: 09404-08205 Weight: 0.062500 Brand: Price: $ 2.06 |
Clamp (L:62) | 1 | $ 2.06 | ||
| 16-2 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 1 | $ 1.86 | For Ref# 8-2 | |
| 17 | 03241-0625A SCREW
SKU: 03241-0625A Weight: 0.100000 Brand: Price: $ 2.08 |
SCREW | 1 | $ 2.08 | For Ref# 8-1 | |
| 18 | 37725-95300 Neutral Switch Actuator
SKU: 37725-95300 Weight: 0.125000 Brand: Price: $ 5.67 |
Neutral Switch Actuator | 1 | $ 5.67 | For Ref# 8-1 | |
| 19 | 37721-94406 Neutral Switch Assembly
SKU: 37721-94406 Weight: 0.200000 Brand: Price: $ 29.49 |
Neutral Switch Assembly | 1 | $ 29.49 | For Ref# 8-1 | |
| 20 | 37726-95D02 Switch Bracket
SKU: 37726-95D02 Weight: 0.100000 Brand: Price: $ 6.21 |
Switch Bracket | 1 | $ 6.21 | For Ref# 8-1 | |
| 21 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | For Ref# 8-1 | |
| 22-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | For Ref# 8-2 | |
| 22-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | For Ref# 8-2 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
