Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

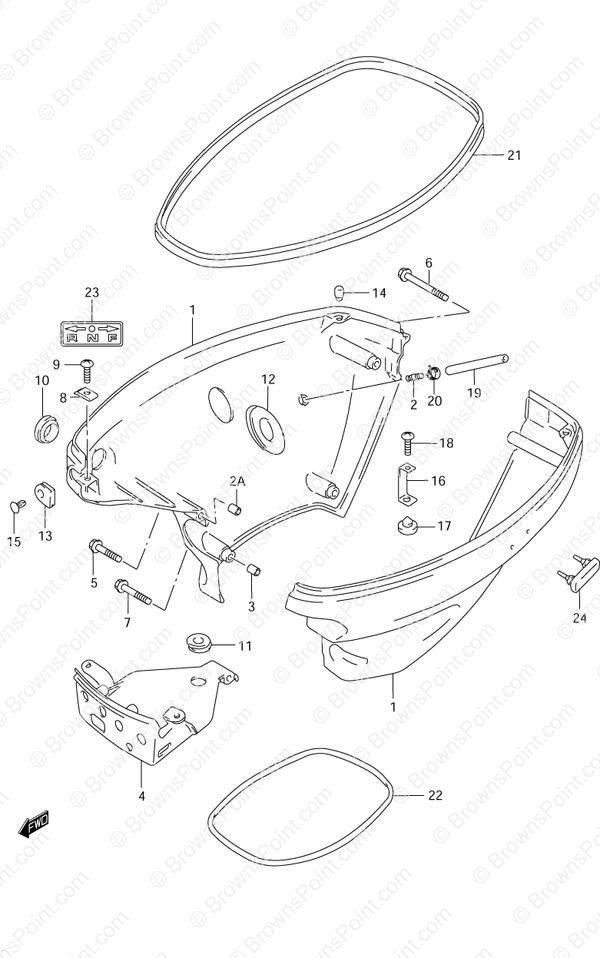

Fig. 33 - Side Cover S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61800-93813-Z11 Engine Side Cover Set (NLA)
SKU: 61800-93813-Z11 Weight: 0.100000 Brand: Price: $ 214.63 |
Engine Side Cover Set (NLA) | 1 | $ 214.63 | Port Starboard | |
| 2 | 61155-94500 Water Inspection Tube
SKU: 61155-94500 Weight: 0.060000 Brand: Price: $ 3.47 |
Water Inspection Tube | 1 | $ 3.47 | ||
| 2A | 61816-93E00 Side Cover Spacer (S) (NLA)
SKU: 61816-93E00 Weight: 0.100000 Brand: Price: $ 5.03 |
Side Cover Spacer (S) (NLA) | 2 | $ 5.03 | w/Transom (S) | |
| 3 | 61816-93E10 Side Cover Spacer (L) (NLA)
SKU: 61816-93E10 Weight: 0.100000 Brand: Price: $ 5.15 |
Side Cover Spacer (L) (NLA) | 3 | $ 5.15 | w/Transom (L) | |
| 4 | 61830-93E01-Z11 Instrument Panel Assy (NLA)
SKU: 61830-93E01-Z11 Weight: 0.100000 Brand: Price: $ 42.93 |
Instrument Panel Assy (NLA) | 1 | $ 42.93 | ||
| 5 | 09136-06128 Bolt (6x45) (NLA)
SKU: 09136-06128 Weight: 0.060000 Brand: Price: $ 1.91 |
Bolt (6x45) (NLA) | 1 | $ 1.91 | ||
| 6 | 09136-06137 Screw (6x55)
SKU: 09136-06137 Weight: 0.060000 Brand: Price: $ 3.91 |
Screw (6x55) | 2 | $ 3.91 | ||
| 7 | 09136-06138 Screw (6x75)
SKU: 09136-06138 Weight: 0.060000 Brand: Price: $ 4.96 |
Screw (6x75) | 1 | $ 4.96 | ||
| 8 | 09148-06015 Nut
SKU: 09148-06015 Weight: 0.060000 Brand: Price: $ 3.09 |
Nut | 2 | $ 3.09 | ||
| 9 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 2 | $ 1.38 | ||
| 10 | 21117-93E00 Clutch Lever Seal (NLA)
SKU: 21117-93E00 Weight: 0.060000 Brand: Price: $ 5.79 |
Clutch Lever Seal (NLA) | 1 | $ 5.79 | ||
| 11 | 61115-93E00 Side Cover Drain Seal
SKU: 61115-93E00 Weight: 0.100000 Brand: Price: $ 7.94 |
Side Cover Drain Seal | 1 | $ 7.94 | ||
| 12 | 61124-93E00 Side Cover Plug
SKU: 61124-93E00 Weight: 0.060000 Brand: Price: $ 8.24 |
Side Cover Plug | 1 | $ 8.24 | ||
| 13 | 67331-93E00 Remocon Cable Grommet
SKU: 67331-93E00 Weight: 0.060000 Brand: Price: $ 7.16 |
Remocon Cable Grommet | 1 | $ 7.16 | ||
| 14 | 09321-05019 Cushion
SKU: 09321-05019 Weight: 0.060000 Brand: Price: $ 2.74 |
Cushion | 2 | $ 2.74 | ||
| 15 | 09409-11301 Remocon Cable Cap (NLA)
SKU: 09409-11301 Weight: 0.100000 Brand: Price: $ 0.98 |
Remocon Cable Cap (NLA) | 1 | $ 0.98 | ||
| 16 | 61827-93E00 Side Cover Holder (NLA)
SKU: 61827-93E00 Weight: 0.100000 Brand: Price: $ 6.97 |
Side Cover Holder (NLA) | 1 | $ 6.97 | ||
| 17 | 09321-08020 Side Cover Cushion
SKU: 09321-08020 Weight: 0.100000 Brand: Price: $ 2.91 |
Side Cover Cushion | 1 | $ 2.91 | ||
| 18 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.38 |
6 X 16 CROSS SC | 1 | $ 1.38 | ||
| 19 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->180 | |
| 20 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 2 | $ 1.78 | ||
| 21 | 61112-93930 Lower Engine Cover Rubber
SKU: 61112-93930 Weight: 0.600000 Brand: Price: $ 44.91 |
Lower Engine Cover Rubber | 1 | $ 44.91 | ||
| 22 | 61134-93E00 Side Cover Seal
SKU: 61134-93E00 Weight: 0.060000 Brand: Price: $ 8.91 |
Side Cover Seal | 1 | $ 8.91 | ||
| 23 | 21131-94J00-YAY Clutch Shift Mark
SKU: 21131-94J00-YAY Weight: 0.060000 Brand: Price: $ 1.46 |
Clutch Shift Mark | 1 | $ 1.46 | ||
| 24 | 61851-93E00 Engine Cover Protector
SKU: 61851-93E00 Weight: 0.060000 Brand: Price: $ 8.19 |
Engine Cover Protector | 1 | $ 8.19 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
