Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

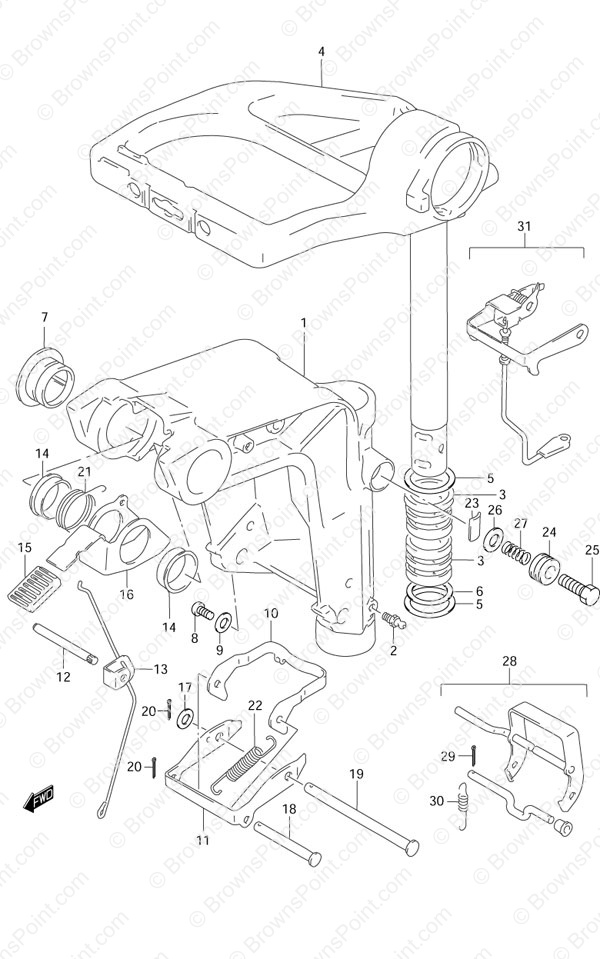

Fig. 27 - Swivel Bracket S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 43111-93931-Z11 Swivel Bracket (NLA)
SKU: 43111-93931-Z11 Weight: 10.000000 Brand: Price: $ 203.18 |
Swivel Bracket (NLA) | 1 | $ 203.18 | ||
| 2 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 5 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 7 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9 | 09161-06120 Washer (6.3x12.5x1.0) (NLA)
SKU: 09161-06120 Weight: 0.060000 Brand: Price: $ 1.41 |
Washer (6.3x12.5x1.0) (NLA) | 1 | $ 1.41 | ||
| 10 | 45231-93901 Reverse Lock Arm (NLA)
SKU: 45231-93901 Weight: 0.100000 Brand: Price: $ 0.00 |
Reverse Lock Arm (NLA) | 1 | $ 0.00 | ||
| 11 | 45241-90L00 Reverse Lock Arm Link
SKU: 45241-90L00 Weight: 0.250000 Brand: Price: $ 8.17 |
Reverse Lock Arm Link | 1 | $ 8.17 | ||
| 12 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 13 | 45250-89E01 Release Link (NLA)
SKU: 45250-89E01 Weight: 0.100000 Brand: Price: $ 13.78 |
Release Link (NLA) | 1 | $ 13.78 | ||
| 14 | 09306-22006 Bushing
SKU: 09306-22006 Weight: 0.060000 Brand: Price: $ 1.26 |
Bushing | 1 | $ 1.26 | ||
| 15 | 45255-93001 Release Lever Rubber
SKU: 45255-93001 Weight: 0.100000 Brand: Price: $ 4.20 |
Release Lever Rubber | 1 | $ 4.20 | ||
| 16 | 45261-92L00 Release Lever
SKU: 45261-92L00 Weight: 0.250000 Brand: Price: $ 8.42 |
Release Lever | 1 | $ 8.42 | ||
| 17 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 18 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 19 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 20 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 21 | 09448-29018 Spring
SKU: 09448-29018 Weight: 0.100000 Brand: Price: $ 3.40 |
Spring | 1 | $ 3.40 | ||
| 22 | 45212-94J01 Reverse Lock Spring
SKU: 45212-94J01 Weight: 0.060000 Brand: Price: $ 5.26 |
Reverse Lock Spring | 2 | $ 5.26 | ||
| 23 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 24 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 25 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 26 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 27 | 09440-11022 Spring
SKU: 09440-11022 Weight: 0.060000 Brand: Price: $ 2.20 |
Spring | 1 | $ 2.20 | ||
| 28 | 45700-93E01 Shallow Water Drive Assy
SKU: 45700-93E01 Weight: 0.340000 Brand: Price: $ 59.43 |
Shallow Water Drive Assy | 1 | $ 59.43 | Optional | |
| 29 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 30 | 09443-08031 Spring
SKU: 09443-08031 Weight: 0.060000 Brand: Price: $ 7.57 |
Spring | 1 | $ 7.57 | ||
| 31 | 45200-93901 Reverse Lock Set (NLA)
SKU: 45200-93901 Weight: 0.100000 Brand: Price: $ 94.83 |
Reverse Lock Set (NLA) | 1 | $ 94.83 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
