Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

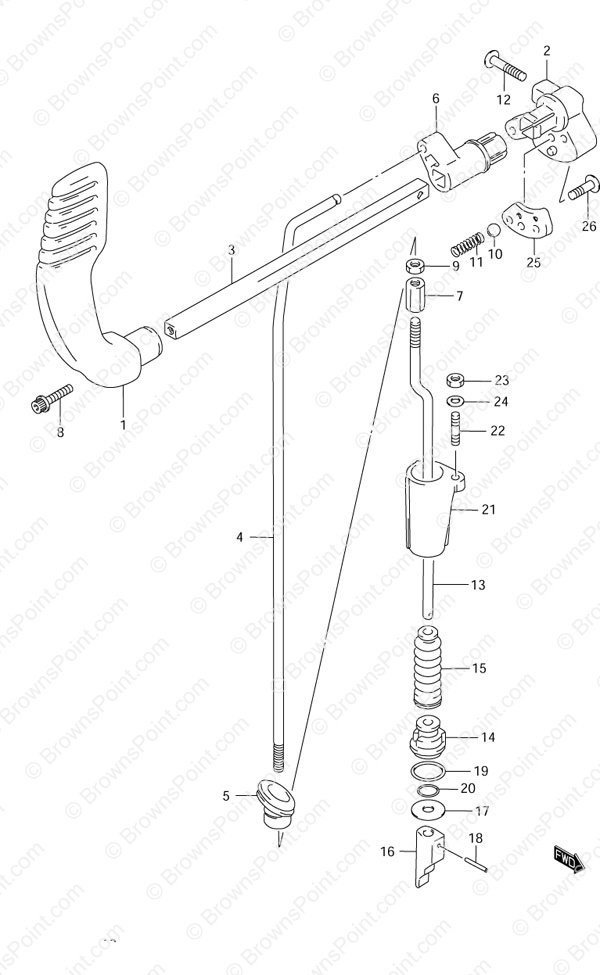

Fig. 18 - Clutch S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21111-93E00 Clutch Lever (NLA)
SKU: 21111-93E00 Weight: 0.100000 Brand: Price: $ 8.42 |
Clutch Lever (NLA) | 1 | $ 8.42 | ||
| 2 | 21120-93E10 Clutch Notch Lever
SKU: 21120-93E10 Weight: 0.080000 Brand: Price: $ 10.34 |
Clutch Notch Lever | 1 | $ 10.34 | ||
| 3 | 21211-93E00 Clutch Lever Shaft (NLA)
SKU: 21211-93E00 Weight: 0.100000 Brand: Price: $ 12.87 |
Clutch Lever Shaft (NLA) | 1 | $ 12.87 | ||
| 4 | 23111-93E00 Clutch Rod
SKU: 23111-93E00 Weight: 0.200000 Brand: Price: $ 14.23 |
Clutch Rod | 1 | $ 14.23 | ||
| 5 | 23131-95L00 Clutch Rod Boot
SKU: 23131-95L00 Weight: 0.060000 Brand: Price: $ 4.55 |
Clutch Rod Boot | 1 | $ 4.55 | ||
| 6 | 23211-93E01 Clutch Rod Arm
SKU: 23211-93E01 Weight: 0.060000 Brand: Price: $ 7.01 |
Clutch Rod Arm | 1 | $ 7.01 | ||
| 7 | 23311-95DL0 Clutch Rod Connector
SKU: 23311-95DL0 Weight: 0.060000 Brand: Price: $ 9.12 |
Clutch Rod Connector | 1 | $ 9.12 | ||
| 8 | 09106-06084 Bolt (NLA)
SKU: 09106-06084 Weight: 0.100000 Brand: Price: $ 2.78 |
Bolt (NLA) | 1 | $ 2.78 | ||
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 10 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 11 | 09440-07021 Spring
SKU: 09440-07021 Weight: 0.060000 Brand: Price: $ 1.56 |
Spring | 1 | $ 1.56 | ||
| 12 | 02142-06257 SCREW
SKU: 02142-06257 Weight: 0.060000 Brand: Price: $ 0.26 |
SCREW | 1 | $ 0.26 | ||
| 13-1 | 25100-93810 Shift Rod Set (S)
SKU: 25100-93810 Weight: 0.250000 Brand: Price: $ 35.63 |
Shift Rod Set (S) | 1 | $ 35.63 | w/Transom (S) | |
| 13-2 | 25100-93820 Shift Rod Set (L)
SKU: 25100-93820 Weight: 0.500000 Brand: Price: $ 37.28 |
Shift Rod Set (L) | 1 | $ 37.28 | w/Transom (L) | |
| 14 | 25211-93901 Shift Rod Guide
SKU: 25211-93901 Weight: 0.060000 Brand: Price: $ 5.83 |
Shift Rod Guide | 1 | $ 5.83 | ||
| 15 | 25222-93902 Shift Rod Boot
SKU: 25222-93902 Weight: 0.060000 Brand: Price: $ 7.90 |
Shift Rod Boot | 1 | $ 7.90 | ||
| 16 | 25311-93E10 Shift Cam (NLA)
SKU: 25311-93E10 Weight: 0.100000 Brand: Price: $ 11.96 |
Shift Cam (NLA) | 1 | $ 11.96 | Use Ref# 13 | |
| 17 | 09160-05047 Washer (5.5x24x1.6)
SKU: 09160-05047 Weight: 0.100000 Brand: Price: $ 2.06 |
Washer (5.5x24x1.6) | 1 | $ 2.06 | ||
| 18 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 2 | $ 1.07 | ||
| 19 | 59291-94J00 O-Ring
SKU: 59291-94J00 Weight: 0.060000 Brand: Price: $ 3.77 |
O-Ring | 1 | $ 3.77 | ||
| 20 | 09280-05005 O-Ring
SKU: 09280-05005 Weight: 0.060000 Brand: Price: $ 1.52 |
O-Ring | 1 | $ 1.52 | ||
| 21 | 25215-94J00 Shift Rod Guide Stopper
SKU: 25215-94J00 Weight: 0.060000 Brand: Price: $ 6.74 |
Shift Rod Guide Stopper | 1 | $ 6.74 | ||
| 22 | 09108-05007 Stud Bolt
SKU: 09108-05007 Weight: 0.100000 Brand: Price: $ 2.28 |
Stud Bolt | 1 | $ 2.28 | ||
| 23 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 24 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 25 | 21122-93E00 Clutch Notch Plate (NLA)
SKU: 21122-93E00 Weight: 0.100000 Brand: Price: $ 10.74 |
Clutch Notch Plate (NLA) | 1 | $ 10.74 | ||
| 26 | 02142-06207 SCREW 6X20
SKU: 02142-06207 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X20 | 2 | $ 1.38 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
