Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

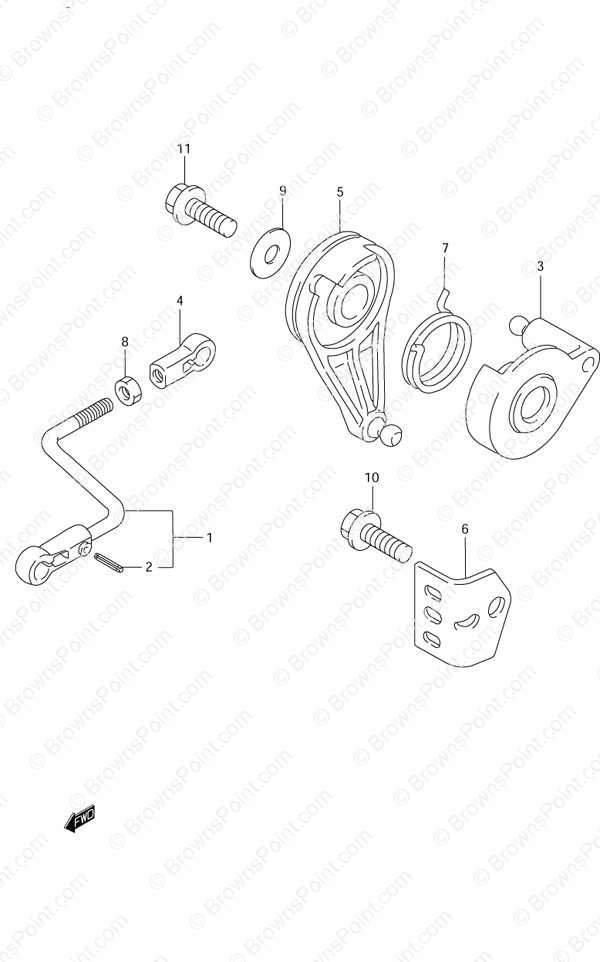

Fig. 13 - Throttle Control S/N 651001 to 652500
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13510-93E01 Throttle Rod Assembly
SKU: 13510-93E01 Weight: 0.060000 Brand: Price: $ 13.84 |
Throttle Rod Assembly | 1 | $ 13.84 | ||
| 2 | 09205-02006 Spring Pin (2x12)
SKU: 09205-02006 Weight: 0.060000 Brand: Price: $ 1.07 |
Spring Pin (2x12) | 1 | $ 1.07 | ||
| 3 | 19121-93E00 Throttle Control Lever
SKU: 19121-93E00 Weight: 0.100000 Brand: Price: $ 9.25 |
Throttle Control Lever | 1 | $ 9.25 | ||
| 4 | 19131-95502 Connector
SKU: 19131-95502 Weight: 0.060000 Brand: Price: $ 4.52 |
Connector | 1 | $ 4.52 | ||
| 5 | 19148-93E10 Throttle Drum
SKU: 19148-93E10 Weight: 0.100000 Brand: Price: $ 9.64 |
Throttle Drum | 1 | $ 9.64 | ||
| 6 | 19184-89E00 Throttle Cable Bracket (NLA)
SKU: 19184-89E00 Weight: 0.100000 Brand: Price: $ 3.37 |
Throttle Cable Bracket (NLA) | 1 | $ 3.37 | ||
| 7 | 19185-93E00 Throttle Lever Spring
SKU: 19185-93E00 Weight: 0.100000 Brand: Price: $ 5.75 |
Throttle Lever Spring | 1 | $ 5.75 | ||
| 8 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 1 | $ 2.65 | ||
| 9 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 | ||
| 10 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
