Suzuki DF 9.9 Parts Listings - 1996
S/N 00991F-650001 to 00991F-65XXXX

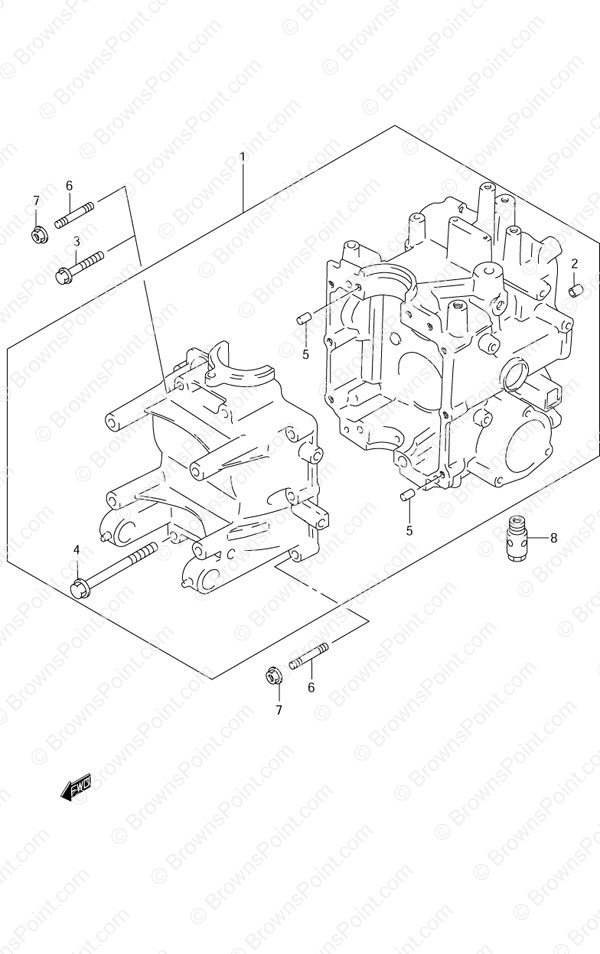

Fig. 2 - Cylinder Block
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 11301-93E00-Z11 Cylinder Black Assembly (NLA)
SKU: 11301-93E00-Z11 Weight: 0.100000 Brand: Price: $ 701.50 |
Cylinder Black Assembly (NLA) | 1 | $ 701.50 | S/N 651001 to 651599 | |
| 1-2 | 11301-93E02-Z11 Cylinder Black Assembly (NLA)
SKU: 11301-93E02-Z11 Weight: 50.000000 Brand: Price: $ 813.04 |
Cylinder Black Assembly (NLA) | 1 | $ 813.04 | S/N 651600 to 65XXXX | |
| 2 | 09205-10006 Pin (10.2x10)
SKU: 09205-10006 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (10.2x10) | 1 | $ 4.47 | ||
| 3-1 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 6 | $ 2.82 | S/N 651001 to 652500 | |
| 3-2 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 4 | $ 2.82 | S/N 652501 to 65XXXX | |
| 4 | 01560-08757 BOLT
SKU: 01560-08757 Weight: 0.080000 Brand: Price: $ 3.98 |
BOLT | 4 | $ 3.98 | ||
| 5-1 | 04221-06129 PIN 6X12
SKU: 04221-06129 Weight: 0.060000 Brand: Price: $ 1.49 |
PIN 6X12 | 2 | $ 1.49 | For Ref# 1-1 | |
| 5-2 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 2 | $ 1.78 | S/N 651600 to 65XXXX | |
| 6 | 01421-06307 BOLTSTUD
SKU: 01421-06307 Weight: 0.200000 Brand: Price: $ 2.62 |
BOLTSTUD | 2 | $ 2.62 | S/N 652501 to 65XXXX | |
| 7 | 08316-10067 Nut
SKU: 08316-10067 Weight: 0.060000 Brand: Price: $ 2.25 |
Nut | 2 | $ 2.25 | S/N 652501 to 65XXXX | |
| 8 | 16440-11D00 Engine Oil Regulator
SKU: 16440-11D00 Weight: 0.100000 Brand: Price: $ 53.04 |
Engine Oil Regulator | 1 | $ 53.04 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
