Suzuki DF 9.9A Parts Listings - 2011
S/N 00994F-110001 to 00994F-11XXXX

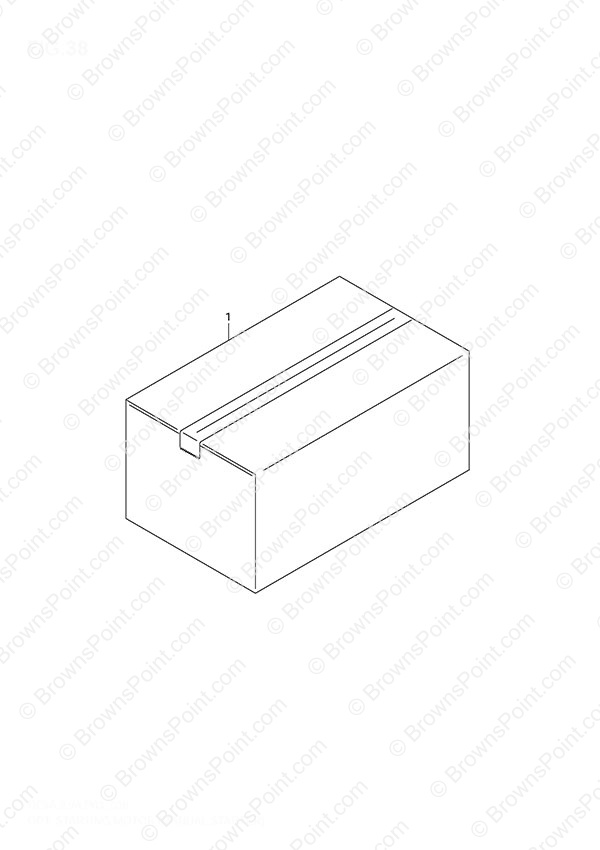

Fig. 38 - Opt: Starting Motor w/Manual Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31000-99J00 Electric Starter Kit
SKU: 31000-99J00 Weight: 0.100000 Brand: Price: $ 1,467.25 |
Electric Starter Kit | 1 | $ 1,467.25 | ||
| 2 | 12625-99J00 Stator Base
SKU: 12625-99J00 Weight: 0.100000 Brand: Price: $ 59.65 |
Stator Base | 1 | $ 59.65 | ||
| 3 | 31101-99J00 Starting Motor Set
SKU: 31101-99J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Starting Motor Set | 1 | $ 0.00 | ||
| 4 | 31100-94J22 Starter Motor Assembly
SKU: 31100-94J22 Weight: 6.540000 Brand: Price: $ 864.04 |
Starter Motor Assembly | 1 | $ 864.04 | ||
| 6 | 31918-94J00 Lower Damper
SKU: 31918-94J00 Weight: 0.100000 Brand: Price: $ 7.47 |
Lower Damper | 1 | $ 7.47 | ||
| 7 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 8 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 9 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 10 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 11 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 12 | 32104-99J00 Magneto Set
SKU: 32104-99J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Magneto Set | 1 | $ 0.00 | ||
| 14 | 32120-99J00 Stator & Pulser Coil
SKU: 32120-99J00 Weight: 1.000000 Brand: Price: $ 274.18 |
Stator & Pulser Coil | 1 | $ 274.18 | ||
| 15 | 09125-06035 Screw (6x25)
SKU: 09125-06035 Weight: 0.060000 Brand: Price: $ 1.93 |
Screw (6x25) | 3 | $ 1.93 | ||
| 16 | 32801-99J00 Rectifier/Regulator Set
SKU: 32801-99J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Rectifier/Regulator Set | 1 | $ 0.00 | ||
| 17 | 32800-99J00 Rectifier/Regulator Assembly
SKU: 32800-99J00 Weight: 1.000000 Brand: Price: $ 222.23 |
Rectifier/Regulator Assembly | 1 | $ 222.23 | ||
| 18 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 19 | 32900-99J00 CDI Unit
SKU: 32900-99J00 Weight: 1.000000 Brand: Price: $ 347.16 |
CDI Unit | 1 | $ 347.16 | ||
| 20 | 33800-99J00 Starting Cable Set
SKU: 33800-99J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Starting Cable Set | 1 | $ 0.00 | ||
| 21 | 33810-99J00 Starter Motor Cable
SKU: 33810-99J00 Weight: 5.000000 Brand: Price: $ 67.10 |
Starter Motor Cable | 1 | $ 67.10 | ||
| 22 | 36655-99J00 Cable Grommet Plate
SKU: 36655-99J00 Weight: 0.250000 Brand: Price: $ 0.00 |
Cable Grommet Plate | 1 | $ 0.00 | ||
| 23 | 36656-99J20 Cable Grommet
SKU: 36656-99J20 Weight: 0.250000 Brand: Price: $ 0.00 |
Cable Grommet | 1 | $ 0.00 | ||
| 24 | 37161-89E13 Start Switch Assembly
SKU: 37161-89E13 Weight: 0.250000 Brand: Price: $ 36.22 |
Start Switch Assembly | 1 | $ 36.22 | ||
| 25 | 37721-99J10 Neutral Switch Assembly
SKU: 37721-99J10 Weight: 0.250000 Brand: Price: $ 49.77 |
Neutral Switch Assembly | 1 | $ 49.77 | ||
| 26 | 37724-99J00 Switch Push Rod
SKU: 37724-99J00 Weight: 0.250000 Brand: Price: $ 8.21 |
Switch Push Rod | 1 | $ 8.21 | ||
| 27 | 37726-99J10 Neutral Switch Bracket
SKU: 37726-99J10 Weight: 0.250000 Brand: Price: $ 13.50 |
Neutral Switch Bracket | 1 | $ 13.50 | ||
| 28 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 29 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 1 | $ 3.98 | ||
| 30 | 36610-99J00 Wiring Harness Assembly
SKU: 36610-99J00 Weight: 5.000000 Brand: Price: $ 88.03 |
Wiring Harness Assembly | 1 | $ 88.03 | ||
| 31 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 32 | 09481-20501 20 Amp Fuse
SKU: 09481-20501 Weight: 0.100000 Brand: Price: $ 1.96 |
20 Amp Fuse | 1 | $ 1.96 | ||
| 33 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 2 | $ 2.27 | ||
| 34 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 4 | $ 3.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
