Suzuki DF 9.9A Parts Listings - 2011
S/N 00994F-110001 to 00994F-11XXXX

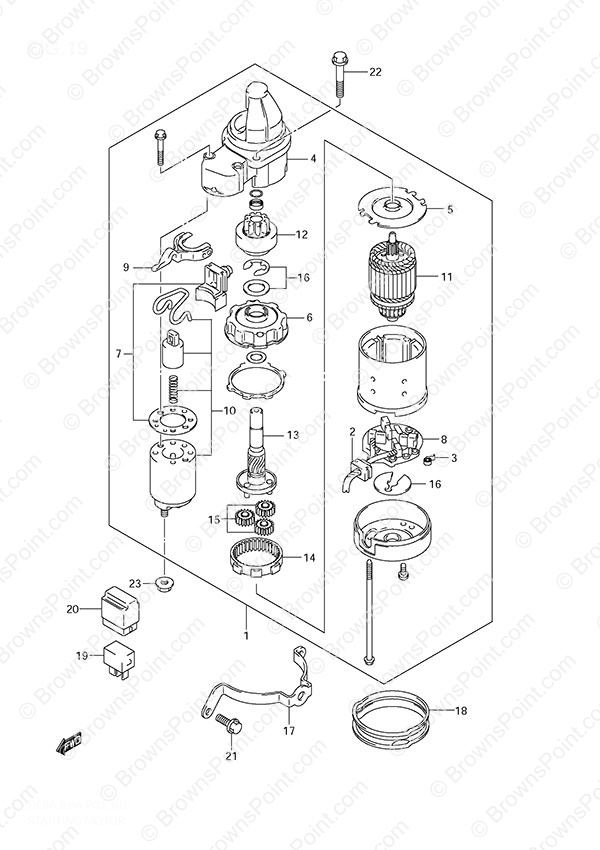

Fig. 19 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 31100-94J22 Starter Motor Assembly
SKU: 31100-94J22 Weight: 6.540000 Brand: Price: $ 864.04 |
Starter Motor Assembly | 1 | $ 864.04 | ||
| 2 | 31131-94J00 Plus Brush Set
SKU: 31131-94J00 Weight: 0.100000 Brand: Price: $ 41.56 |
Plus Brush Set | 1 | $ 41.56 | ||
| 3 | 31135-90J00 Spring
SKU: 31135-90J00 Weight: 0.060000 Brand: Price: $ 8.46 |
Spring | 4 | $ 8.46 | ||
| 4 | 31151-94J01 Gear Case
SKU: 31151-94J01 Weight: 1.000000 Brand: Price: $ 172.32 |
Gear Case | 1 | $ 172.32 | ||
| 5 | 31152-90J00 Center Plate (NLA)
SKU: 31152-90J00 Weight: 0.100000 Brand: Price: $ 16.98 |
Center Plate (NLA) | 1 | $ 16.98 | ||
| 6 | 31153-90J00 Planet Gear Bracket (NLA)
SKU: 31153-90J00 Weight: 0.100000 Brand: Price: $ 29.89 |
Planet Gear Bracket (NLA) | 1 | $ 29.89 | ||
| 7 | 31171-96J00 Dust Cover Kit
SKU: 31171-96J00 Weight: 0.100000 Brand: Price: $ 18.24 |
Dust Cover Kit | 1 | $ 18.24 | ||
| 8 | 31173-94J01 Brush Holder
SKU: 31173-94J01 Weight: 0.500000 Brand: Price: $ 123.57 |
Brush Holder | 1 | $ 123.57 | ||
| 9 | 31191-96J00 Shift Lever (NLA)
SKU: 31191-96J00 Weight: 0.100000 Brand: Price: $ 15.49 |
Shift Lever (NLA) | 1 | $ 15.49 | ||
| 10 | 31220-94J00 Magnet Switch
SKU: 31220-94J00 Weight: 0.500000 Brand: Price: $ 254.81 |
Magnet Switch | 1 | $ 254.81 | ||
| 11 | 31310-90J00 Armature
SKU: 31310-90J00 Weight: 5.000000 Brand: Price: $ 574.14 |
Armature | 1 | $ 574.14 | ||
| 12 | 31320-94J00 Pinion Assembly (NLA)
SKU: 31320-94J00 Weight: 0.600000 Brand: Price: $ 200.83 |
Pinion Assembly (NLA) | 1 | $ 200.83 | ||
| 13 | 31341-94J00 Pinion Shaft (NLA)
SKU: 31341-94J00 Weight: 0.400000 Brand: Price: $ 101.44 |
Pinion Shaft (NLA) | 1 | $ 101.44 | ||
| 14 | 31343-90J00 Internal Gear (NLA)
SKU: 31343-90J00 Weight: 0.100000 Brand: Price: $ 63.52 |
Internal Gear (NLA) | 1 | $ 63.52 | ||
| 15 | 31344-90J00 Planetary Gear (NLA)
SKU: 31344-90J00 Weight: 0.100000 Brand: Price: $ 27.77 |
Planetary Gear (NLA) | 3 | $ 27.77 | ||
| 16 | 31360-93J01 Washer Set
SKU: 31360-93J01 Weight: 0.100000 Brand: Price: $ 13.71 |
Washer Set | 1 | $ 13.71 | ||
| 18 | 31918-94J00 Lower Damper
SKU: 31918-94J00 Weight: 0.100000 Brand: Price: $ 7.47 |
Lower Damper | 1 | $ 7.47 | ||
| 19 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 20 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 21 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | Lower | |
| 22 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | Upper | |
| 23 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
