Suzuki DF 9.9A Parts Listings - 2010
S/N 00994F-010001 to 00994F-01XXXX

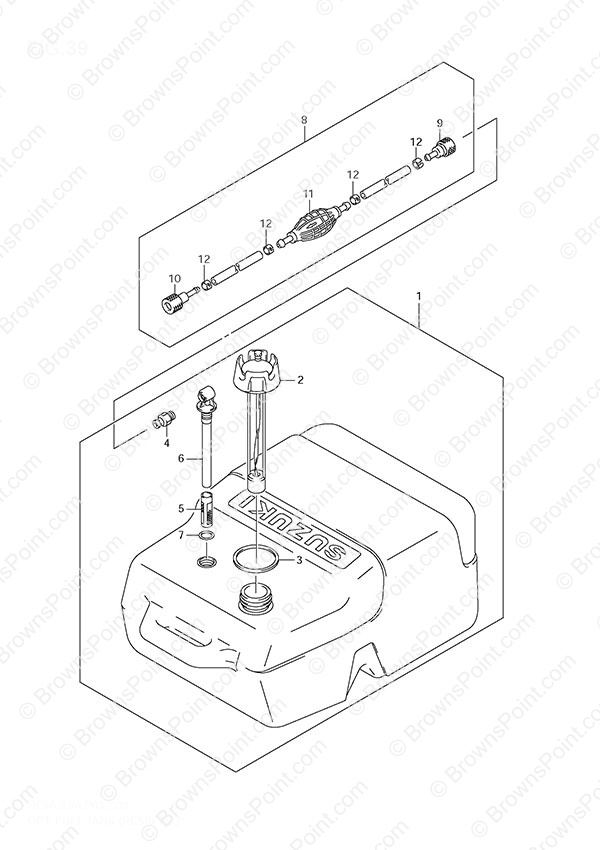

Fig. 39 - Opt: Fuel Tank
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65000-95D01 6 Gallon Suzuki Fuel Tank (NLA)
SKU: 65000-95D01 Weight: 7.000000 Brand: Price: $ 64.87 |
6 Gallon Suzuki Fuel Tank (NLA) | 1 | $ 64.87 | ||
| 2 | 65520-95D00 Fuel Tank Cap Assembly (NLA)
SKU: 65520-95D00 Weight: 0.250000 Brand: Price: $ 10.30 |
Fuel Tank Cap Assembly (NLA) | 1 | $ 10.30 | ||
| 3 | 65561-95D00 Fuel Tank Cap Gasket
SKU: 65561-95D00 Weight: 0.125000 Brand: Price: $ 1.96 |
Fuel Tank Cap Gasket | 1 | $ 1.96 | ||
| 4 | 65740-95D01 Fuel Tank Connector (13mm)
SKU: 65740-95D01 Weight: 0.060000 Brand: Price: $ 40.01 |
Fuel Tank Connector (13mm) | 1 | $ 40.01 | ||
| 5 | 65831-95D00 Fuel Outlet Filter
SKU: 65831-95D00 Weight: 0.060000 Brand: Price: $ 13.54 |
Fuel Outlet Filter | 1 | $ 13.54 | ||
| 6 | 65890-95D00 Outlet Assembly
SKU: 65890-95D00 Weight: 0.150000 Brand: Price: $ 5.56 |
Outlet Assembly | 1 | $ 5.56 | ||
| 7 | 65892-95D00 Fuel Outlet O-Ring
SKU: 65892-95D00 Weight: 0.060000 Brand: Price: $ 4.66 |
Fuel Outlet O-Ring | 1 | $ 4.66 | ||
| 8 | 65700-87J28 Fuel Hose
SKU: 65700-87J28 Weight: 2.000000 Brand: Price: $ 297.93 |
Fuel Hose | 1 | $ 297.93 | ||
| 9 | 65750-87J11 Fuel Hose Connector
SKU: 65750-87J11 Weight: 0.200000 Brand: Price: $ 20.94 |
Fuel Hose Connector | 1 | $ 20.94 | ||
| 10 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | ||
| 11 | 65770-95505 Squeeze Pump (NLA)
SKU: 65770-95505 Weight: 0.150000 Brand: Price: $ 21.34 |
Squeeze Pump (NLA) | 1 | $ 21.34 | ||
| 12 | 65781-98500 Hose Clip
SKU: 65781-98500 Weight: 0.060000 Brand: Price: $ 2.90 |
Hose Clip | 4 | $ 2.90 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
