Suzuki DF 9.9A Parts Listings - 2010
S/N 00994F-010001 to 00994F-01XXXX

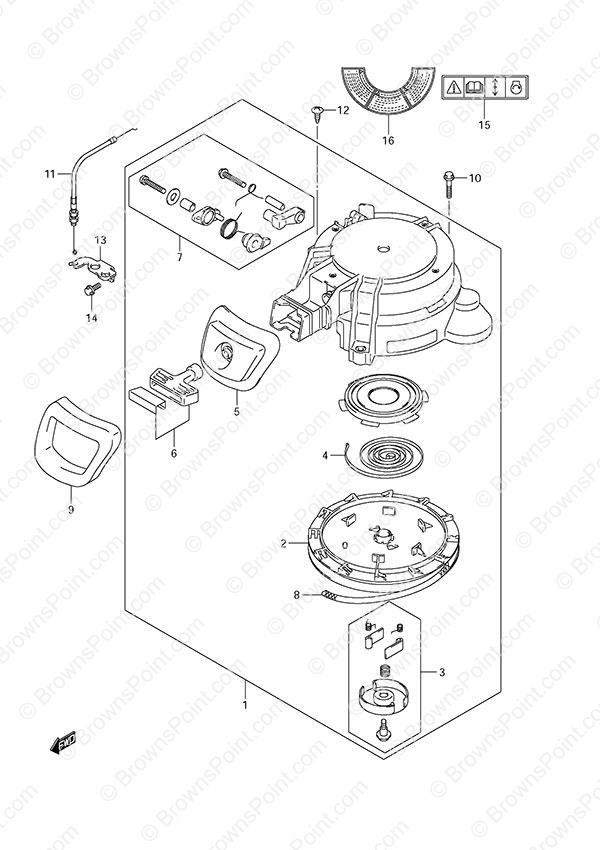

Fig. 11 - Recoil Starter
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 18100-99J00 Recoil Starter Assembly
SKU: 18100-99J00 Weight: 10.000000 Brand: Price: $ 295.40 |
Recoil Starter Assembly | 1 | $ 295.40 | ||
| 2 | 18120-99J00 Reel
SKU: 18120-99J00 Weight: 0.250000 Brand: Price: $ 76.88 |
Reel | 1 | $ 76.88 | ||
| 3 | 18130-99J00 Ratchet Set
SKU: 18130-99J00 Weight: 0.250000 Brand: Price: $ 43.69 |
Ratchet Set | 1 | $ 43.69 | ||
| 4 | 18142-98600 Recoil Spring
SKU: 18142-98600 Weight: 0.500000 Brand: Price: $ 27.58 |
Recoil Spring | 1 | $ 27.58 | ||
| 5 | 18181-99J00 Rope Guide (NLA)
SKU: 18181-99J00 Weight: 0.250000 Brand: Price: $ 63.52 |
Rope Guide (NLA) | 1 | $ 63.52 | ||
| 6 | 18210-99J00 Grip Assembly
SKU: 18210-99J00 Weight: 0.250000 Brand: Price: $ 43.15 |
Grip Assembly | 1 | $ 43.15 | ||
| 7 | 18280-99J00 NSI Set
SKU: 18280-99J00 Weight: 0.080000 Brand: Price: $ 88.01 |
NSI Set | 1 | $ 88.01 | ||
| 8 | 99000-81158-50M Starter Rope
SKU: 99000-81158-50M Weight: 10.000000 Brand: Price: $ 277.34 |
Starter Rope | 1 | $ 277.34 | Optional L:50000->1650 | |
| 9 | 18193-99J00 Recoil Starter Seal
SKU: 18193-99J00 Weight: 0.250000 Brand: Price: $ 37.96 |
Recoil Starter Seal | 1 | $ 37.96 | ||
| 10 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.88 |
BOLT | 3 | $ 2.88 | ||
| 11 | 18290-99J00 NSI Cable Assembly
SKU: 18290-99J00 Weight: 0.250000 Brand: Price: $ 5.08 |
NSI Cable Assembly | 1 | $ 5.08 | ||
| 12 | 03542-06129 SCREW
SKU: 03542-06129 Weight: 0.100000 Brand: Price: $ 2.31 |
SCREW | 2 | $ 2.31 | ||
| 13 | 37726-99J00 NSI Cable Bracket
SKU: 37726-99J00 Weight: 0.250000 Brand: Price: $ 33.10 |
NSI Cable Bracket | 1 | $ 33.10 | ||
| 14 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 2 | $ 2.45 | ||
| 15 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.61 |
Label (S.I.G.P) | 1 | $ 4.61 | ||
| 16 | 61472-93E20 Recoil Starter Label (NLA)
SKU: 61472-93E20 Weight: 0.125000 Brand: Price: $ 6.11 |
Recoil Starter Label (NLA) | 1 | $ 6.11 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
