Suzuki DF 8A Parts Listings - 2011
S/N 00801F-110001 to 00801F-11XXXX

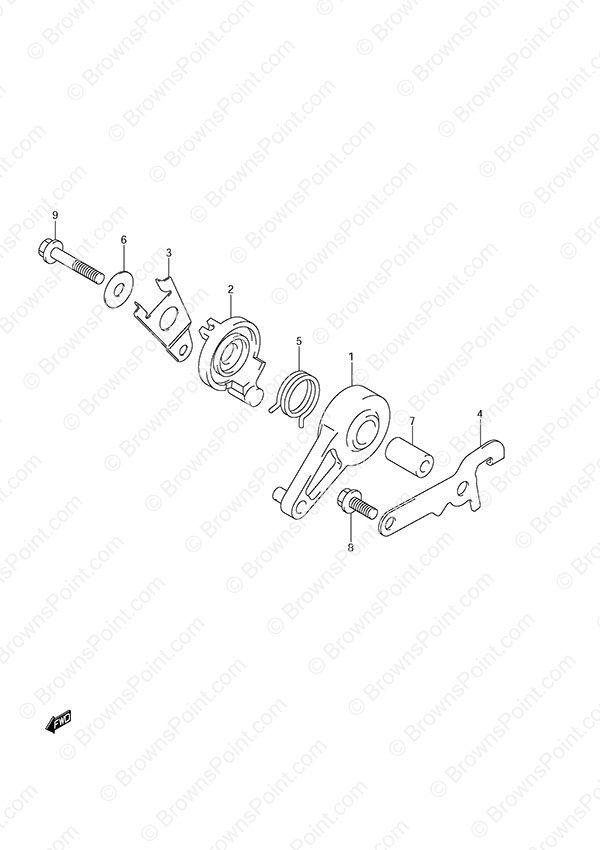

Fig. 13 - Throttle Control w/Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 19120-99J11 Throttle Control Lever
SKU: 19120-99J11 Weight: 0.250000 Brand: Price: $ 6.84 |
Throttle Control Lever | 1 | $ 6.84 | ||
| 2 | 19122-99J00 Interlink Throttle Lever No 2
SKU: 19122-99J00 Weight: 0.250000 Brand: Price: $ 11.11 |
Interlink Throttle Lever No 2 | 1 | $ 11.11 | ||
| 3 | 19148-99J10 Interlink Throttle Lever
SKU: 19148-99J10 Weight: 0.250000 Brand: Price: $ 10.09 |
Interlink Throttle Lever | 1 | $ 10.09 | ||
| 4 | 19184-99J10 Throttle Link Plate
SKU: 19184-99J10 Weight: 0.250000 Brand: Price: $ 15.47 |
Throttle Link Plate | 1 | $ 15.47 | ||
| 5 | 19185-99J00 Throttle Lever Spring
SKU: 19185-99J00 Weight: 0.250000 Brand: Price: $ 6.49 |
Throttle Lever Spring | 1 | $ 6.49 | ||
| 6 | 09160-06046 Washer (6.5x20x1.5)
SKU: 09160-06046 Weight: 0.060000 Brand: Price: $ 1.99 |
Washer (6.5x20x1.5) | 1 | $ 1.99 | ||
| 7 | 09180-06186 Spacer (6.2x12.6x21)
SKU: 09180-06186 Weight: 0.060000 Brand: Price: $ 7.02 |
Spacer (6.2x12.6x21) | 1 | $ 7.02 | ||
| 8 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 1 | $ 2.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
