Suzuki DF 8A Parts Listings - 2010
S/N 00801F-010001 to 00801F-01XXXX

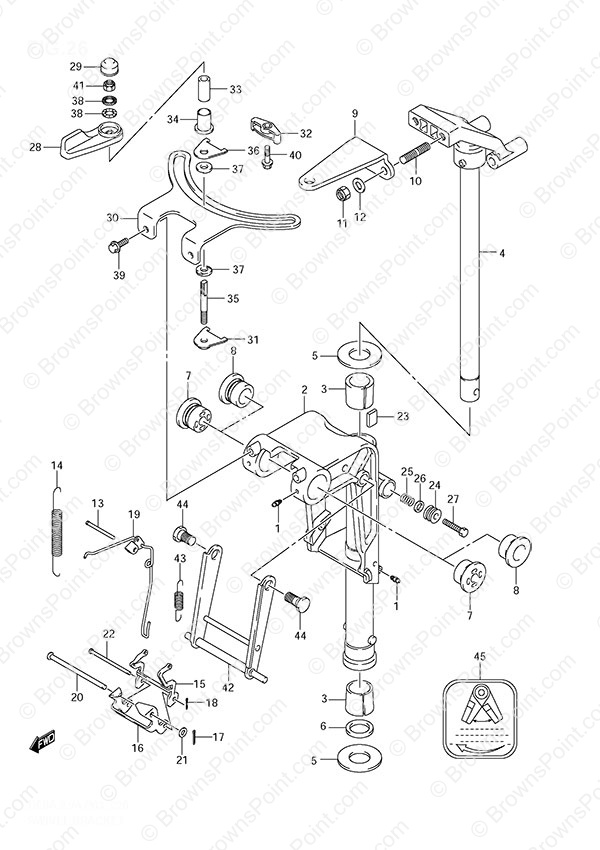

Fig. 26 - Swivel Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 3 | $ 3.36 | ||
| 2-1 | 43111-99J00-0EP Swivel Bracket (S)
SKU: 43111-99J00-0EP Weight: 5.000000 Brand: Price: $ 364.18 |
Swivel Bracket (S) | 1 | $ 364.18 | w/Transom (S) | |
| 2-2 | 43111-99J10-0EP Swivel Bracket (L)
SKU: 43111-99J10-0EP Weight: 5.000000 Brand: Price: $ 302.61 |
Swivel Bracket (L) | 1 | $ 302.61 | w/Transom (L) | |
| 3 | 43711-99J00 Steering Bushing
SKU: 43711-99J00 Weight: 0.250000 Brand: Price: $ 14.52 |
Steering Bushing | 2 | $ 14.52 | ||
| 4-1 | 43750-99J00-0EP Steering Bracket (S)
SKU: 43750-99J00-0EP Weight: 5.000000 Brand: Price: $ 916.29 |
Steering Bracket (S) | 1 | $ 916.29 | w/Transom (S) | |
| 4-2 | 43750-99J10-0EP Steering Bracket (L)
SKU: 43750-99J10-0EP Weight: 5.000000 Brand: Price: $ 945.30 |
Steering Bracket (L) | 1 | $ 945.30 | w/Transom (L) | |
| 5 | 09160-27013 Washer
SKU: 09160-27013 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer | 2 | $ 3.72 | ||
| 6 | 09282-27002 Oil Seal (26x39x5)
SKU: 09282-27002 Weight: 0.250000 Brand: Price: $ 14.52 |
Oil Seal (26x39x5) | 1 | $ 14.52 | ||
| 7 | 43211-99J00 Swivel Bracket Bushing
SKU: 43211-99J00 Weight: 0.250000 Brand: Price: $ 14.39 |
Swivel Bracket Bushing | 2 | $ 14.39 | Non-Remote Control | |
| 8 | 43211-87J00 Swivel Bracket Bushing
SKU: 43211-87J00 Weight: 0.100000 Brand: Price: $ 9.18 |
Swivel Bracket Bushing | 2 | $ 9.18 | w/Remote Control | |
| 9 | 43755-99J01 ATTACHMENT,STEE
SKU: 43755-99J01 Weight: 0.000000 Brand: Price: $ 105.14 |
ATTACHMENT,STEE | 1 | $ 105.14 | w/Remote Control | |
| 10 | 09108-08286 Stud Bolt
SKU: 09108-08286 Weight: 0.060000 Brand: Price: $ 14.70 |
Stud Bolt | 2 | $ 14.70 | w/Remote Control | |
| 11 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 2 | $ 5.21 | w/Remote Control | |
| 12 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | w/Remote Control | |
| 13 | 41225-94502 Release Arm Pin
SKU: 41225-94502 Weight: 0.060000 Brand: Price: $ 5.64 |
Release Arm Pin | 1 | $ 5.64 | ||
| 14 | 45212-99JL0 Reverse Lock Arm Spring
SKU: 45212-99JL0 Weight: 0.200000 Brand: Price: $ 6.70 |
Reverse Lock Arm Spring | 2 | $ 6.70 | ||
| 15 | 45231-99J10 Reverse Lock Arm
SKU: 45231-99J10 Weight: 0.100000 Brand: Price: $ 19.28 |
Reverse Lock Arm | 1 | $ 19.28 | ||
| 16 | 45241-99JL1 Reverse Lock Arm Link (NLA)
SKU: 45241-99JL1 Weight: 0.100000 Brand: Price: $ 38.87 |
Reverse Lock Arm Link (NLA) | 1 | $ 38.87 | ||
| 17 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 1 | $ 1.70 | ||
| 18 | 45247-99J00 Reverse Lock Arm Cotter Pin
SKU: 45247-99J00 Weight: 0.250000 Brand: Price: $ 2.53 |
Reverse Lock Arm Cotter Pin | 1 | $ 2.53 | ||
| 19 | 45250-94J00 Release Link
SKU: 45250-94J00 Weight: 0.250000 Brand: Price: $ 20.41 |
Release Link | 1 | $ 20.41 | ||
| 20 | 09200-06061 Pin
SKU: 09200-06061 Weight: 0.060000 Brand: Price: $ 8.40 |
Pin | 1 | $ 8.40 | ||
| 21 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 22 | 09200-05014 Pin
SKU: 09200-05014 Weight: 0.100000 Brand: Price: $ 3.00 |
Pin | 1 | $ 3.00 | ||
| 23 | 43411-939L0 Steering Adjuster Plate
SKU: 43411-939L0 Weight: 0.100000 Brand: Price: $ 3.31 |
Steering Adjuster Plate | 1 | $ 3.31 | ||
| 24 | 43412-93901 COVER,STEERING
SKU: 43412-93901 Weight: 0.000000 Brand: Price: $ 2.60 |
COVER,STEERING | 1 | $ 2.60 | ||
| 25 | 29440-93J00 Steering Adjuster Spring
SKU: 29440-93J00 Weight: 0.100000 Brand: Price: $ 2.24 |
Steering Adjuster Spring | 1 | $ 2.24 | ||
| 26 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 27 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 1 | $ 3.57 | ||
| 28 | 43410-99J00 Steering Adjust Lever (NLA)
SKU: 43410-99J00 Weight: 0.250000 Brand: Price: $ 46.00 |
Steering Adjust Lever (NLA) | 1 | $ 46.00 | Non-Remote Control | |
| 29 | 43412-99J00 Steering Adjust Cover
SKU: 43412-99J00 Weight: 0.250000 Brand: Price: $ 10.63 |
Steering Adjust Cover | 1 | $ 10.63 | Non-Remote Control | |
| 30 | 43415-99J00 Steering Adjust Plate
SKU: 43415-99J00 Weight: 0.250000 Brand: Price: $ 150.49 |
Steering Adjust Plate | 1 | $ 150.49 | Non-Remote Control | |
| 31 | 43420-99J10 Adjust Friction Plate (NLA)
SKU: 43420-99J10 Weight: 0.250000 Brand: Price: $ 22.76 |
Adjust Friction Plate (NLA) | 1 | $ 22.76 | Non-Remote Control | |
| 32 | 43424-99J00 Adjust Nut Holder (NLA)
SKU: 43424-99J00 Weight: 0.250000 Brand: Price: $ 19.69 |
Adjust Nut Holder (NLA) | 1 | $ 19.69 | Non-Remote Control | |
| 33 | 43427-99J00 Adjust Nut Spacer (NLA)
SKU: 43427-99J00 Weight: 0.250000 Brand: Price: $ 19.69 |
Adjust Nut Spacer (NLA) | 1 | $ 19.69 | Non-Remote Control | |
| 34 | 43428-99J00 Adjust Nut Bushing (NLA)
SKU: 43428-99J00 Weight: 0.250000 Brand: Price: $ 10.43 |
Adjust Nut Bushing (NLA) | 1 | $ 10.43 | Non-Remote Control | |
| 35 | 43512-99J00 Adjust Thread Shaft (NLA)
SKU: 43512-99J00 Weight: 0.250000 Brand: Price: $ 24.65 |
Adjust Thread Shaft (NLA) | 1 | $ 24.65 | Non-Remote Control | |
| 36 | 43514-94J00 Steering Adjuster Plate
SKU: 43514-94J00 Weight: 0.060000 Brand: Price: $ 6.18 |
Steering Adjuster Plate | 1 | $ 6.18 | Non-Remote Control | |
| 37 | 43514-99J00 Friction Plate Washer
SKU: 43514-99J00 Weight: 0.250000 Brand: Price: $ 3.71 |
Friction Plate Washer | 1 | $ 3.71 | Non-Remote Control | |
| 38 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | Non-Remote Control | |
| 39 | 09116-06094 Bolt (6x15)
SKU: 09116-06094 Weight: 0.060000 Brand: Price: $ 2.28 |
Bolt (6x15) | 2 | $ 2.28 | Non-Remote Control | |
| 40 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 1 | $ 2.72 | Non-Remote Control | |
| 41 | 09159-08059 Nut
SKU: 09159-08059 Weight: 0.060000 Brand: Price: $ 5.21 |
Nut | 1 | $ 5.21 | Non-Remote Control | |
| 42 | 45710-99JL1 Shallow Water Drive Assembly
SKU: 45710-99JL1 Weight: 0.500000 Brand: Price: $ 38.44 |
Shallow Water Drive Assembly | 1 | $ 38.44 | ||
| 43 | 45722-94J11 Shallow Water Drive Spring
SKU: 45722-94J11 Weight: 0.060000 Brand: Price: $ 20.04 |
Shallow Water Drive Spring | 1 | $ 20.04 | ||
| 44 | 09111-10067 Bolt (10x20.4)
SKU: 09111-10067 Weight: 0.060000 Brand: Price: $ 6.13 |
Bolt (10x20.4) | 2 | $ 6.13 | ||
| 45 | 45269-99J00 Steering Adjust Mark (NLA)
SKU: 45269-99J00 Weight: 0.250000 Brand: Price: $ 4.16 |
Steering Adjust Mark (NLA) | 1 | $ 4.16 | Non-Remote Control |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
