Suzuki DF 200 Parts Listings 2004 to S/N 20002F-11XXXX 2004 to S/N 20002Z-11XXXX

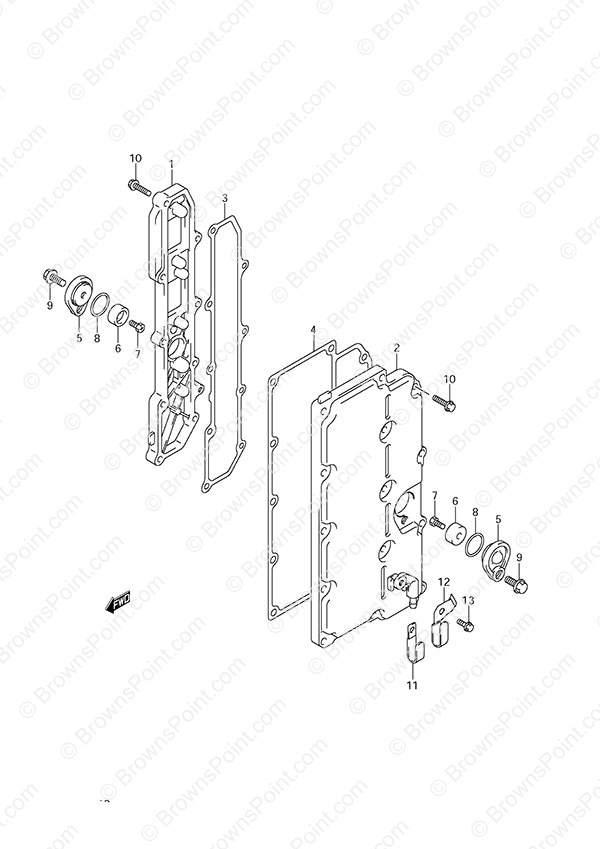

Fig. 12 - Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 14141-93J01 Starboard Exhaust Cover
SKU: 14141-93J01 Weight: 1.000000 Brand: Price: $ 88.91 |
Starboard Exhaust Cover | 1 | $ 88.91 | ||
| 2-1 | 14142-93J02 Port Exhaust Cover
SKU: 14142-93J02 Weight: 2.000000 Brand: Price: $ 98.33 |
Port Exhaust Cover | 1 | $ 98.33 | Requires Ref# 12 | |
| 2-2 | 14142-93J02 Port Exhaust Cover
SKU: 14142-93J02 Weight: 2.000000 Brand: Price: $ 98.33 |
Port Exhaust Cover | 1 | $ 98.33 | DF200T: S/N 780053 Newer DF200Z: S/N 780005 Newer | |
| 2-3 | 14140-98J01 Port Exhaust Cover
SKU: 14140-98J01 Weight: 2.000000 Brand: Price: $ 145.58 |
Port Exhaust Cover | 1 | $ 145.58 | 2008 Newer | |
| 3 | 14151-93J00 Starboard Exhaust Cover Gasket
SKU: 14151-93J00 Weight: 0.200000 Brand: Price: $ 9.24 |
Starboard Exhaust Cover Gasket | 1 | $ 9.24 | ||
| 4 | 14152-93J00 Port Exhaust Cover Gasket
SKU: 14152-93J00 Weight: 0.150000 Brand: Price: $ 20.53 |
Port Exhaust Cover Gasket | 1 | $ 20.53 | ||
| 5 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 6 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 7-1 | 09128-06021 Bolt (6x14)
SKU: 09128-06021 Weight: 0.060000 Brand: Price: $ 1.91 |
Bolt (6x14) | 2 | $ 1.91 | ||
| 7-2 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | 2006 Newer | |
| 8 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 9 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 10 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 23 | $ 2.33 | ||
| 11 | 09403-17303 Clamp (NLA)
SKU: 09403-17303 Weight: 0.100000 Brand: Price: $ 2.29 |
Clamp (NLA) | 1 | $ 2.29 | DF200T: S/N 780052 Older DF200Z: S/N 780004 Older | |
| 12 | 17713-98J01 HOLDER,WATER HO
SKU: 17713-98J01 Weight: 0.000000 Brand: Price: $ 4.94 |
HOLDER,WATER HO | 1 | $ 4.94 | DF200T: S/N 780053 Newer DF200Z: S/N 780005 Newer | |
| 13 | 01550-08127 BOLT 8 X 12
SKU: 01550-08127 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 8 X 12 | 1 | $ 2.84 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
