Suzuki DF 100 Parts Listings 2009 to S/N 10002F-11XXXX

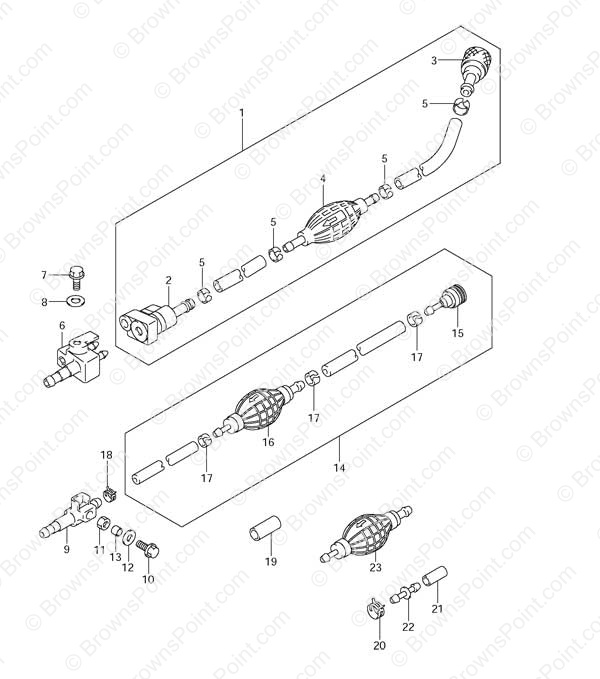

Fig. 48 - Fuel Hose

Ref# Part Number Description Req Qty* Price Each Order Remarks
20 09401-11423 Clip 1 $ 2.09
21 09251-07003 Cap 1 $ 2.20
22 09367-08001 Hose Joint 1 $ 3.61
23 65770-95505 Squeeze Pump (NLA) 1 $ 21.34

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
