Suzuki DF 100 Parts Listings 2009 to S/N 10002F-11XXXX

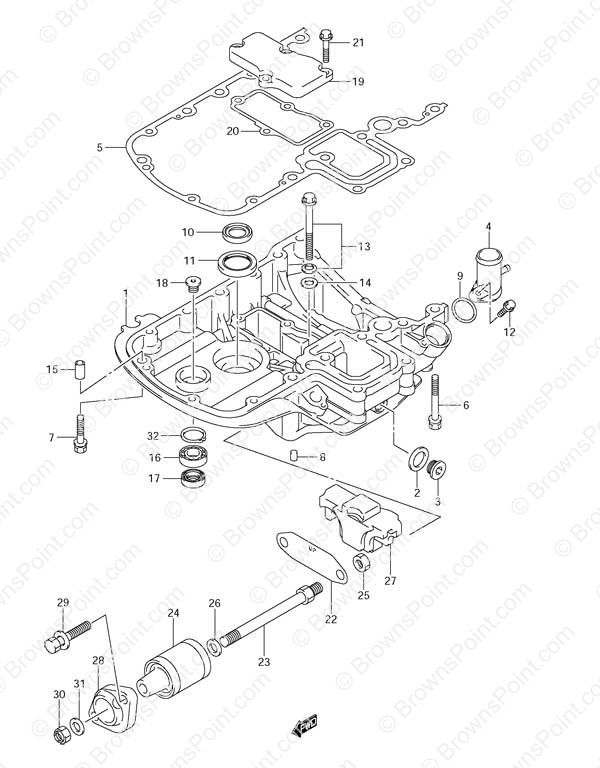

Fig. 39 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 51110-90843-0EP Engine Holder Set
SKU: 51110-90843-0EP Weight: 15.000000 Brand: Price: $ 839.14 |
Engine Holder Set | 1 | $ 839.14 | Requires Ref# 33 | |
| 4 | 51115-90J00 Water Return Union
SKU: 51115-90J00 Weight: 0.080000 Brand: Price: $ 12.23 |
Water Return Union | 1 | $ 12.23 | ||
| 5 | 51211-90J22 Engine Holder Gasket
SKU: 51211-90J22 Weight: 0.300000 Brand: Price: $ 68.40 |
Engine Holder Gasket | 1 | $ 68.40 | ||
| 6 | 09116-08160 Bolt (8x70)
SKU: 09116-08160 Weight: 0.125000 Brand: Price: $ 12.77 |
Bolt (8x70) | 4 | $ 12.77 | ||
| 7 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 4 | $ 4.11 | ||
| 8 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 9 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 10 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | ||
| 11 | 09283-32044 Oil Seal (32x47x6)
SKU: 09283-32044 Weight: 0.060000 Brand: Price: $ 19.24 |
Oil Seal (32x47x6) | 1 | $ 19.24 | ||
| 12 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13 | 29117-93J10 Bolt (8x45) w/Washer
SKU: 29117-93J10 Weight: 0.150000 Brand: Price: $ 4.99 |
Bolt (8x45) w/Washer | 1 | $ 4.99 | ||
| 14 | 09160-08059 Washer (8.5x18x1.6)
SKU: 09160-08059 Weight: 0.060000 Brand: Price: $ 1.69 |
Washer (8.5x18x1.6) | 1 | $ 1.69 | ||
| 15 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 3 | $ 1.78 | ||
| 16 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 17 | 09289-18001 Clutch Shaft Seal
SKU: 09289-18001 Weight: 0.060000 Brand: Price: $ 22.80 |
Clutch Shaft Seal | 1 | $ 22.80 | ||
| 18 | 09248-12005 Plug
SKU: 09248-12005 Weight: 0.060000 Brand: Price: $ 3.54 |
Plug | 1 | $ 3.54 | ||
| 19 | 51122-90J00 Mount Case Cover
SKU: 51122-90J00 Weight: 0.100000 Brand: Price: $ 69.78 |
Mount Case Cover | 1 | $ 69.78 | ||
| 20 | 51123-90J01 Mount Case Cover Gasket
SKU: 51123-90J01 Weight: 0.060000 Brand: Price: $ 9.12 |
Mount Case Cover Gasket | 1 | $ 9.12 | ||
| 21 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 22 | 54123-90J01 Upper Mount Plate
SKU: 54123-90J01 Weight: 0.250000 Brand: Price: $ 14.12 |
Upper Mount Plate | 1 | $ 14.12 | ||
| 23 | 54112-90J21 Upper Mount Bolt
SKU: 54112-90J21 Weight: 0.400000 Brand: Price: $ 49.44 |
Upper Mount Bolt | 2 | $ 49.44 | ||
| 24 | 54130-90J40 Upper Mount
SKU: 54130-90J40 Weight: 0.500000 Brand: Price: $ 50.94 |
Upper Mount | 2 | $ 50.94 | ||
| 25 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 26 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 27 | 54125-90J11 Upper Thrust Mount
SKU: 54125-90J11 Weight: 1.000000 Brand: Price: $ 12.69 |
Upper Thrust Mount | 1 | $ 12.69 | ||
| 28 | 54148-90J11-0EP Upper Mount Cover
SKU: 54148-90J11-0EP Weight: 0.500000 Brand: Price: $ 83.10 |
Upper Mount Cover | 2 | $ 83.10 | ||
| 29 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | ||
| 30 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 31 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 2 | $ 3.79 | ||
| 32 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.27 |
Circlip | 1 | $ 2.27 | ||
| 33 | 54123-90J01 Upper Mount Plate
SKU: 54123-90J01 Weight: 0.250000 Brand: Price: $ 14.12 |
Upper Mount Plate | 1 | $ 14.12 | Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
