Suzuki DF 100 Parts Listings 2009 to S/N 10002F-11XXXX

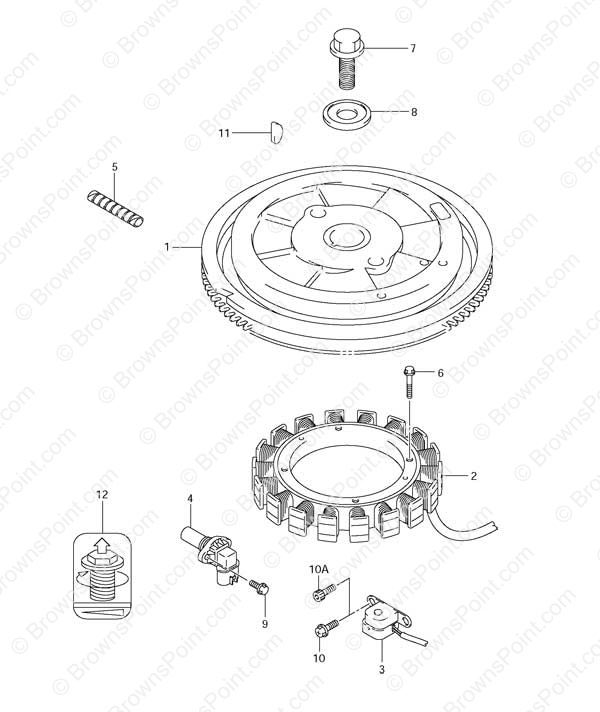

Fig. 27 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-92J10 Flywheel
SKU: 32102-92J10 Weight: 15.000000 Brand: Price: $ 1,177.28 |
Flywheel | 1 | $ 1,177.28 | ||
| 2 | 32120-90J20 Battery Charge Coil
SKU: 32120-90J20 Weight: 2.000000 Brand: Price: $ 619.35 |
Battery Charge Coil | 1 | $ 619.35 | ||
| 3 | 32160-87L01 CKP/Ignition Timimg Coil
SKU: 32160-87L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 4 | 33220-76G02 Cam Position Sensor
SKU: 33220-76G02 Weight: 0.100000 Brand: Price: $ 118.86 |
Cam Position Sensor | 1 | $ 118.86 | ||
| 5 | 33833-91J00 Tube (6x8x250)
SKU: 33833-91J00 Weight: 0.125000 Brand: Price: $ 7.13 |
Tube (6x8x250) | 1 | $ 7.13 | L:250->100 | |
| 6 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 7 | 09103-16004 Bolt (16x50)
SKU: 09103-16004 Weight: 0.125000 Brand: Price: $ 10.05 |
Bolt (16x50) | 1 | $ 10.05 | ||
| 8 | 09160-16048 Washer (16.5x60x7.0)
SKU: 09160-16048 Weight: 0.350000 Brand: Price: $ 16.68 |
Washer (16.5x60x7.0) | 1 | $ 16.68 | ||
| 9 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 1 | $ 1.66 | ||
| 10 | 02162-05167 BOLT
SKU: 02162-05167 Weight: 0.060000 Brand: Price: $ 2.06 |
BOLT | 2 | $ 2.06 | ||
| 10A | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 1 | $ 2.62 | ||
| 11 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 | ||
| 12 | 32118-90J00 Mag Bolt Label (NLA)
SKU: 32118-90J00 Weight: 0.100000 Brand: Price: $ 2.62 |
Mag Bolt Label (NLA) | 1 | $ 2.62 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
