Suzuki DF 100 Parts Listings 2009 to S/N 10002F-11XXXX

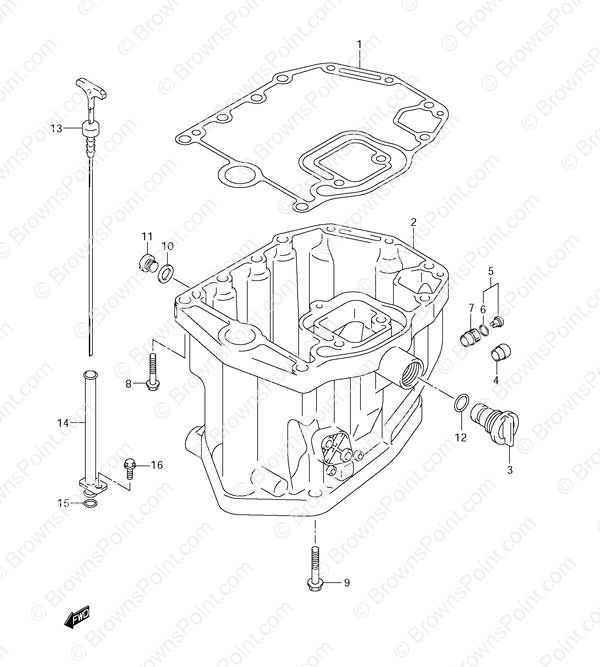

Fig. 19 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-90J00 Oil Pan Gasket
SKU: 11489-90J00 Weight: 0.500000 Brand: Price: $ 39.90 |
Oil Pan Gasket | 1 | $ 39.90 | ||
| 2 | 11501-90J04-0EP Oil Pan
SKU: 11501-90J04-0EP Weight: 12.000000 Brand: Price: $ 748.60 |
Oil Pan | 1 | $ 748.60 | ||
| 3 | 17913-99E12 Water Plug
SKU: 17913-99E12 Weight: 0.150000 Brand: Price: $ 4.47 |
Water Plug | 1 | $ 4.47 | ||
| 4 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 5 | 61150-99E01 Water Indicator Tube Cover
SKU: 61150-99E01 Weight: 0.060000 Brand: Price: $ 8.02 |
Water Indicator Tube Cover | 1 | $ 8.02 | ||
| 6 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 1 | $ 3.76 | ||
| 7 | 61155-99E01 Water Indicator Tube
SKU: 61155-99E01 Weight: 0.060000 Brand: Price: $ 6.34 |
Water Indicator Tube | 1 | $ 6.34 | ||
| 8 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 3 | $ 4.11 | ||
| 9 | 09116-10129 Bolt (10x160)
SKU: 09116-10129 Weight: 0.200000 Brand: Price: $ 18.97 |
Bolt (10x160) | 8 | $ 18.97 | ||
| 10 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 11 | 09248-12009 Oil Drain Plug
SKU: 09248-12009 Weight: 0.060000 Brand: Price: $ 5.88 |
Oil Drain Plug | 1 | $ 5.88 | ||
| 12 | 09280-13005 O-Ring
SKU: 09280-13005 Weight: 0.060000 Brand: Price: $ 1.86 |
O-Ring | 1 | $ 1.86 | ||
| 13 | 16910-90J10 Oil Level Gauge
SKU: 16910-90J10 Weight: 0.060000 Brand: Price: $ 17.26 |
Oil Level Gauge | 1 | $ 17.26 | ||
| 14 | 16930-90J01 Oil Level Gauge Guide
SKU: 16930-90J01 Weight: 0.500000 Brand: Price: $ 16.43 |
Oil Level Gauge Guide | 1 | $ 16.43 | ||
| 15 | 09280-09008 O-Ring
SKU: 09280-09008 Weight: 0.060000 Brand: Price: $ 3.16 |
O-Ring | 1 | $ 3.16 | ||
| 16 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
