Suzuki DF 100 Parts Listings 2009 to S/N 10002F-11XXXX

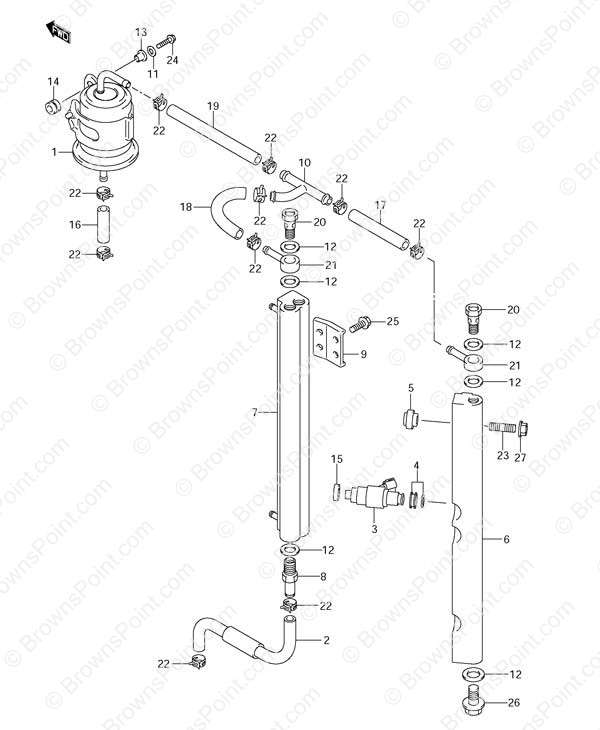

Fig. 11 - Fuel Injector
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15440-90J00 H/P Fuel Filter
SKU: 15440-90J00 Weight: 0.840000 Brand: Price: $ 92.84 |
H/P Fuel Filter | 1 | $ 92.84 | ||
| 2 | 15680-90J01 Fuel Hose
SKU: 15680-90J01 Weight: 0.250000 Brand: Price: $ 31.89 |
Fuel Hose | 1 | $ 31.89 | ||
| 3 | 15710-65D00 Fuel Injector
SKU: 15710-65D00 Weight: 0.250000 Brand: Price: $ 305.07 |
Fuel Injector | 4 | $ 305.07 | ||
| 4 | 15716-65DT0 Grommet Set
SKU: 15716-65DT0 Weight: 0.060000 Brand: Price: $ 19.06 |
Grommet Set | 4 | $ 19.06 | ||
| 5 | 15735-58B00 Delivery Pipe Insulator
SKU: 15735-58B00 Weight: 0.250000 Brand: Price: $ 5.35 |
Delivery Pipe Insulator | 2 | $ 5.35 | ||
| 6 | 15751-90J03 Delivery Pipe
SKU: 15751-90J03 Weight: 1.000000 Brand: Price: $ 151.07 |
Delivery Pipe | 1 | $ 151.07 | ||
| 7 | 15770-90J02 Fuel Cooler
SKU: 15770-90J02 Weight: 0.250000 Brand: Price: $ 96.47 |
Fuel Cooler | 1 | $ 96.47 | ||
| 8 | 15773-90J10 UNION,FUEL HOSE
SKU: 15773-90J10 Weight: 0.000000 Brand: Price: $ 18.53 |
UNION,FUEL HOSE | 1 | $ 18.53 | ||
| 9 | 15775-90J00 Fuel Cooler Bracket (NLA)
SKU: 15775-90J00 Weight: 0.100000 Brand: Price: $ 3.45 |
Fuel Cooler Bracket (NLA) | 2 | $ 3.45 | ||
| 10 | 15830-99E00 3 Way Union
SKU: 15830-99E00 Weight: 0.060000 Brand: Price: $ 17.98 |
3 Way Union | 1 | $ 17.98 | ||
| 12 | 09168-12013 Gasket
SKU: 09168-12013 Weight: 0.060000 Brand: Price: $ 3.46 |
Gasket | 6 | $ 3.46 | ||
| 13 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 14 | 09320-08501 Cushion
SKU: 09320-08501 Weight: 0.060000 Brand: Price: $ 3.28 |
Cushion | 2 | $ 3.28 | ||
| 15 | 09320-08062 Cushion
SKU: 09320-08062 Weight: 0.060000 Brand: Price: $ 13.65 |
Cushion | 4 | $ 13.65 | ||
| 16-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Separator to Filter L:600->50 | |
| 16-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | Separator to Filter S/N 110001 Newer L:600->50 | |
| 17-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Delivery Pipe L:600->50 | |
| 17-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | 3 Way to Delivery Pipe S/N 110001 Newer L:600->50 | |
| 18-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | 3 Way to Cooler L:600->50 | |
| 18-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | 3 Way to Cooler S/N 110001 Newer L:600->50 | |
| 19-1 | 09356-75137-600 Fuel Hose (L:600)
SKU: 09356-75137-600 Weight: 0.060000 Brand: Price: $ 110.18 |
Fuel Hose (L:600) | 1 | $ 110.18 | Filter to 3 Way L:600->110 | |
| 19-2 | 09343-75002-600 Hose (7.5x13.5x600)
SKU: 09343-75002-600 Weight: 0.250000 Brand: Price: $ 34.42 |
Hose (7.5x13.5x600) | 1 | $ 34.42 | Filter to 3 Way S/N 110001 Newer L:600->110 | |
| 20 | 09360-12008 Union Bolt
SKU: 09360-12008 Weight: 0.060000 Brand: Price: $ 9.81 |
Union Bolt | 2 | $ 9.81 | ||
| 21 | 09363-08004 Union
SKU: 09363-08004 Weight: 0.060000 Brand: Price: $ 16.69 |
Union | 2 | $ 16.69 | ||
| 22 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 10 | $ 3.46 | ||
| 23 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 2 | $ 4.62 | ||
| 24 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 2 | $ 3.54 | ||
| 25 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 26 | 01550-12167 BOLT
SKU: 01550-12167 Weight: 0.100000 Brand: Price: $ 3.89 |
BOLT | 1 | $ 3.89 | ||
| 27 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 2 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
