Suzuki DF 90 Parts Listings (S/N 680685 & Older)

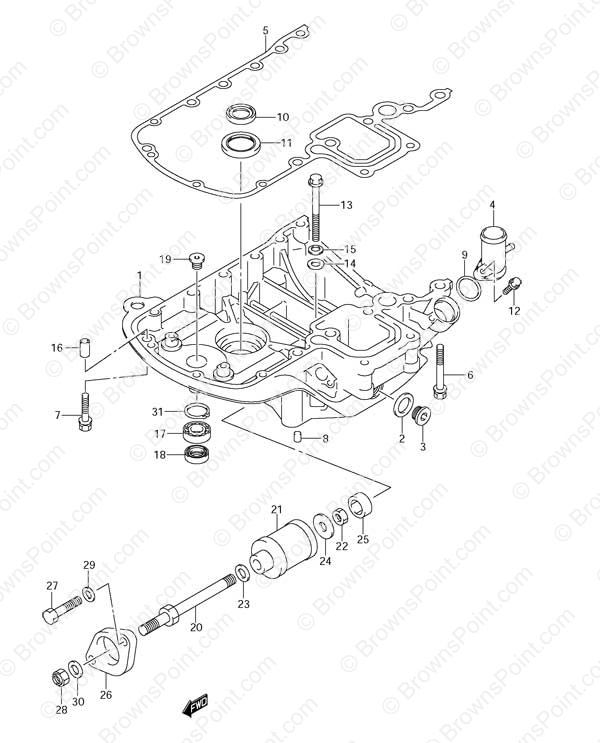

Fig. 38 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 51110-90832-0EP Engine Holder Set (NLA)
SKU: 51110-90832-0EP Weight: 15.000000 Brand: Price: $ 1,013.93 |
Engine Holder Set (NLA) | 1 | $ 1,013.93 | Includes: Ref# 2,3,10,11 from Fig#5 Ref#7 | |
| 1-2 | 51110-90822-0EP Engine Holder Set
SKU: 51110-90822-0EP Weight: 15.000000 Brand: Price: $ 1,201.12 |
Engine Holder Set | 1 | $ 1,201.12 | Includes: Ref# 2,3,10,11,17,18,30 from Fig#5 Ref#7 S/N 372297 Newer | |
| 2 | 09160-18031 Exhaust Plug Gasket
SKU: 09160-18031 Weight: 0.060000 Brand: Price: $ 2.46 |
Exhaust Plug Gasket | 1 | $ 2.46 | ||
| 3-1 | 09248-18006 Exhaust Plug
SKU: 09248-18006 Weight: 0.060000 Brand: Price: $ 6.12 |
Exhaust Plug | 1 | $ 6.12 | ||
| 3-2 | 09248-18010 Exhaust Plug
SKU: 09248-18010 Weight: 0.080000 Brand: Price: $ 8.58 |
Exhaust Plug | 1 | $ 8.58 | S/N 511126 Newer | |
| 4 | 51115-90J00 Water Return Union
SKU: 51115-90J00 Weight: 0.080000 Brand: Price: $ 12.23 |
Water Return Union | 1 | $ 12.23 | ||
| 5 | 51211-90J10 Engine Holder Gasket
SKU: 51211-90J10 Weight: 0.500000 Brand: Price: $ 71.01 |
Engine Holder Gasket | 1 | $ 71.01 | ||
| 6 | 09116-08160 Bolt (8x70)
SKU: 09116-08160 Weight: 0.125000 Brand: Price: $ 12.77 |
Bolt (8x70) | 4 | $ 12.77 | ||
| 7 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 4 | $ 4.11 | ||
| 8 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 9 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 10 | 09282-24003 Oil Seal (24x36x6)
SKU: 09282-24003 Weight: 0.060000 Brand: Price: $ 5.41 |
Oil Seal (24x36x6) | 2 | $ 5.41 | ||
| 11 | 09283-32044 Oil Seal (32x47x6)
SKU: 09283-32044 Weight: 0.060000 Brand: Price: $ 19.24 |
Oil Seal (32x47x6) | 1 | $ 19.24 | ||
| 12 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 13-1 | 01550-08857 BOLT
SKU: 01550-08857 Weight: 0.150000 Brand: Price: $ 3.00 |
BOLT | 1 | $ 3.00 | ||
| 13-2 | 01550-0890B BOLT
SKU: 01550-0890B Weight: 0.060000 Brand: Price: $ 4.64 |
BOLT | 1 | $ 4.64 | S/N 251396 Newer | |
| 14 | 09160-08039 Washer (8.5x19x2.3)
SKU: 09160-08039 Weight: 0.060000 Brand: Price: $ 2.04 |
Washer (8.5x19x2.3) | 1 | $ 2.04 | S/N 251396 Newer | |
| 15 | 09164-08020 Wave Washer
SKU: 09164-08020 Weight: 0.060000 Brand: Price: $ 2.06 |
Wave Washer | 1 | $ 2.06 | S/N 251396 Newer | |
| 16 | 04211-11129 11 X 12 DOWEL P
SKU: 04211-11129 Weight: 0.060000 Brand: Price: $ 1.78 |
11 X 12 DOWEL P | 3 | $ 1.78 | ||
| 17 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | S/N 372297 Newer | |
| 18 | 09289-18001 Clutch Shaft Seal
SKU: 09289-18001 Weight: 0.060000 Brand: Price: $ 22.80 |
Clutch Shaft Seal | 1 | $ 22.80 | S/N 372297 Newer | |
| 19 | 09248-12005 Plug
SKU: 09248-12005 Weight: 0.060000 Brand: Price: $ 3.54 |
Plug | 1 | $ 3.54 | S/N 372297 Newer | |
| 20-1 | 54100-90803 Upper Mount Set
SKU: 54100-90803 Weight: 1.000000 Brand: Price: $ 224.77 |
Upper Mount Set | 1 | $ 224.77 | Starboard Port | |
| 20-2 | 54112-90J10 Upper Mount Bolt
SKU: 54112-90J10 Weight: 0.400000 Brand: Price: $ 39.17 |
Upper Mount Bolt | 2 | $ 39.17 | S/N 251596 Newer | |
| 21-1 | 54100-90803 Upper Mount Set
SKU: 54100-90803 Weight: 1.000000 Brand: Price: $ 224.77 |
Upper Mount Set | 1 | $ 224.77 | Starboard Port S/N 251395 Older | |
| 21-2 | 54100-90810 Upper Mount Set
SKU: 54100-90810 Weight: 1.000000 Brand: Price: $ 99.49 |
Upper Mount Set | 2 | $ 99.49 | S/N 251396 Newer | |
| 21-3 | 54130-90J31 Upper Mount
SKU: 54130-90J31 Weight: 0.500000 Brand: Price: $ 90.40 |
Upper Mount | 2 | $ 90.40 | 2003 to 2006 | |
| 22 | 09140-12029 Nut
SKU: 09140-12029 Weight: 0.060000 Brand: Price: $ 3.08 |
Nut | 2 | $ 3.08 | ||
| 23 | 54113-90J00 Upper Mount Bolt Washer
SKU: 54113-90J00 Weight: 0.060000 Brand: Price: $ 8.33 |
Upper Mount Bolt Washer | 2 | $ 8.33 | ||
| 24-1 | 09160-12097 Washer (12x32x3.0)
SKU: 09160-12097 Weight: 0.060000 Brand: Price: $ 3.72 |
Washer (12x32x3.0) | 2 | $ 3.72 | ||
| 24-2 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 2 | $ 3.79 | 2003 to 2006 | |
| 25 | 54125-90J01 Upper Thrust Rev Mount
SKU: 54125-90J01 Weight: 0.060000 Brand: Price: $ 6.37 |
Upper Thrust Rev Mount | 2 | $ 6.37 | ||
| 26 | 54148-90J11-0EP Upper Mount Cover
SKU: 54148-90J11-0EP Weight: 0.500000 Brand: Price: $ 83.10 |
Upper Mount Cover | 2 | $ 83.10 | ||
| 27-1 | 09100-10157-XC0 Bolt (10x45)
SKU: 09100-10157-XC0 Weight: 0.080000 Brand: Price: $ 7.10 |
Bolt (10x45) | 4 | $ 7.10 | ||
| 27-2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | 2006 | |
| 28 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 29 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 4 | $ 1.63 | 2001 to 2005 | |
| 30 | 09164-13007-XC0 Washer (12.5x22x2.5)
SKU: 09164-13007-XC0 Weight: 0.060000 Brand: Price: $ 4.30 |
Washer (12.5x22x2.5) | 2 | $ 4.30 | ||
| 31 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.27 |
Circlip | 1 | $ 2.27 | S/N 510374 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
