Suzuki DF 6 Parts Listings - 2011
S/N 00602F-110001 to 00602F-11XXXX

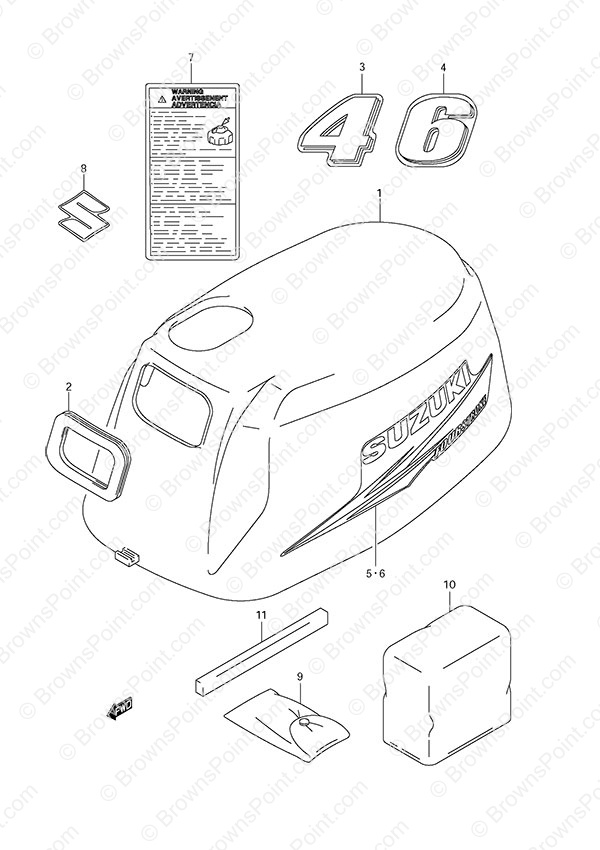

Fig. 27 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61411-91J10-0EP Upper Engine Cover
SKU: 61411-91J10-0EP Weight: 0.100000 Brand: Price: $ 302.71 |
Upper Engine Cover | 1 | $ 302.71 | ||
| 2 | 61622-91J41 Recoil Starter Seal
SKU: 61622-91J41 Weight: 0.060000 Brand: Price: $ 11.03 |
Recoil Starter Seal | 1 | $ 11.03 | ||
| 4 | 61435-91J90 Rear Emblem Mark DF6
SKU: 61435-91J90 Weight: 0.100000 Brand: Price: $ 18.07 |
Rear Emblem Mark DF6 | 1 | $ 18.07 | ||
| 5 | 61443-91J40 Starboard Engine Cover Stripe
SKU: 61443-91J40 Weight: 0.250000 Brand: Price: $ 25.85 |
Starboard Engine Cover Stripe | 1 | $ 25.85 | ||
| 6 | 61453-91J40 Port Engine Cover Stripe
SKU: 61453-91J40 Weight: 0.100000 Brand: Price: $ 25.85 |
Port Engine Cover Stripe | 1 | $ 25.85 | ||
| 7 | 61458-97J10 Engine Cover Label
SKU: 61458-97J10 Weight: 0.125000 Brand: Price: $ 13.74 |
Engine Cover Label | 1 | $ 13.74 | ||
| 8 | 68111-99J00 S Emblem
SKU: 68111-99J00 Weight: 0.100000 Brand: Price: $ 5.37 |
S Emblem | 1 | $ 5.37 | ||
| 9 | 09800-01017 Tool Set
SKU: 09800-01017 Weight: 1.000000 Brand: Price: $ 28.28 |
Tool Set | 1 | $ 28.28 | ||
| 10 | 68110-96110 Weather Cover (NLA)
SKU: 68110-96110 Weight: 0.100000 Brand: Price: $ 17.30 |
Weather Cover (NLA) | 1 | $ 17.30 | ||
| 11 | 61416-91J00 GUARD,AIR INTAK
SKU: 61416-91J00 Weight: 0.000000 Brand: Price: $ 2.07 |
GUARD,AIR INTAK | 1 | $ 2.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
