Suzuki DF 90 Parts Listings 2001 to 2008

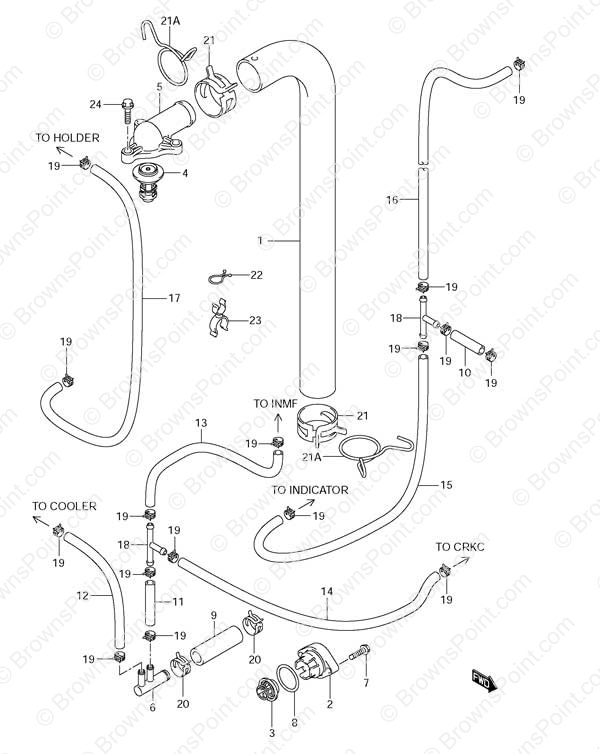

Fig. 16 - Thermostat
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11196-90J00 Water Return Hose
SKU: 11196-90J00 Weight: 0.520000 Brand: Price: $ 29.11 |
Water Return Hose | 1 | $ 29.11 | ||
| 2 | 17611-90J00 Water Pressure Valve Cover
SKU: 17611-90J00 Weight: 0.200000 Brand: Price: $ 34.00 |
Water Pressure Valve Cover | 1 | $ 34.00 | ||
| 3 | 17660-90J00 Water Pressure Valve
SKU: 17660-90J00 Weight: 0.060000 Brand: Price: $ 19.16 |
Water Pressure Valve | 1 | $ 19.16 | ||
| 4-1 | 17670-90J01 Thermostat (60c)
SKU: 17670-90J01 Weight: 0.250000 Brand: Price: $ 62.65 |
Thermostat (60c) | 1 | $ 62.65 | Standard | |
| 4-2 | 17670-90J11 Thermostat (71c)
SKU: 17670-90J11 Weight: 0.120000 Brand: Price: $ 62.65 |
Thermostat (71c) | 1 | $ 62.65 | Optional | |
| 5 | 17681-90J02 Thermostat Cover
SKU: 17681-90J02 Weight: 0.250000 Brand: Price: $ 44.96 |
Thermostat Cover | 1 | $ 44.96 | ||
| 6 | 17711-90J00 Water Hose 3 Way
SKU: 17711-90J00 Weight: 0.060000 Brand: Price: $ 4.14 |
Water Hose 3 Way | 1 | $ 4.14 | ||
| 7 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 8 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Intake Manifold to 3 Way L:600->50 | |
| 11-1 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to 3 Way L:600->50 | |
| 11-2 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to 3 Way S/N 680686 Newer L:600->70 | |
| 12 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->160 | |
| 13 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Intake Manifold L:600->200 | |
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Crankcase Lower L:600->370 | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | 3 Way to Indicator L:600->370 | |
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | Crankcase Upper to 3 Way L:600->450 | |
| 17 | 09352-50006-00B Hose (5x9x2000)
SKU: 09352-50006-00B Weight: 0.250000 Brand: Price: $ 17.89 |
Hose (5x9x2000) | 1 | $ 17.89 | Cooler to Holder L:2000->690 | |
| 18 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 2 | $ 2.65 | ||
| 19 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 16 | $ 2.09 | ||
| 20 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 21 | 09401-31407 Clip
SKU: 09401-31407 Weight: 0.060000 Brand: Price: $ 6.08 |
Clip | 2 | $ 6.08 | 2001 to 2002 - 2005 Newer | |
| 21A | 09401-31201 Clip
SKU: 09401-31201 Weight: 0.060000 Brand: Price: $ 6.36 |
Clip | 2 | $ 6.36 | 2003 to 2004 | |
| 22 | 09408-00024 Clamp
SKU: 09408-00024 Weight: 0.060000 Brand: Price: $ 1.52 |
Clamp | 1 | $ 1.52 | ||
| 23-1 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 1 | $ 2.67 | ||
| 23-2 | 09408-00069 Clamp (NLA)
SKU: 09408-00069 Weight: 0.100000 Brand: Price: $ 1.81 |
Clamp (NLA) | 1 | $ 1.81 | 2003 Newer | |
| 24 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
