Suzuki DF 90 Parts Listings 2001 to 2008

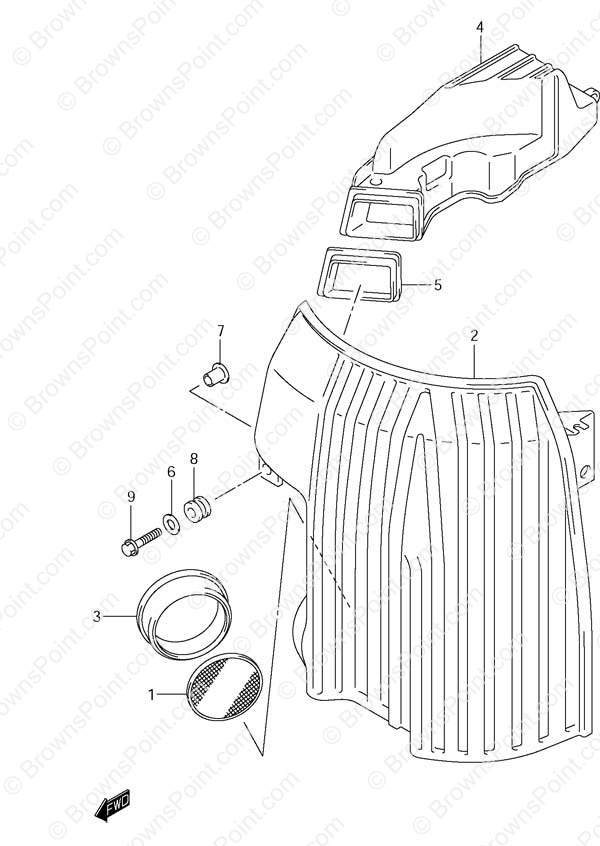

Fig. 8 - Silencer
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13710-99E00 Flame Arrester
SKU: 13710-99E00 Weight: 0.060000 Brand: Price: $ 16.35 |
Flame Arrester | 1 | $ 16.35 | ||
| 2 | 13810-90J01 Silencer Assembly
SKU: 13810-90J01 Weight: 7.000000 Brand: Price: $ 148.87 |
Silencer Assembly | 1 | $ 148.87 | ||
| 3 | 13813-90J01 HOLDER,FLAME AR
SKU: 13813-90J01 Weight: 0.000000 Brand: Price: $ 8.83 |
HOLDER,FLAME AR | 1 | $ 8.83 | ||
| 4 | 13840-90J00 Silencer Duct
SKU: 13840-90J00 Weight: 2.000000 Brand: Price: $ 52.79 |
Silencer Duct | 1 | $ 52.79 | ||
| 5 | 13851-90J01 Silencer Grommet
SKU: 13851-90J01 Weight: 0.060000 Brand: Price: $ 9.16 |
Silencer Grommet | 1 | $ 9.16 | ||
| 6 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 5 | $ 1.78 | S/N 781826 Older | |
| 7 | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 5 | $ 3.19 | ||
| 8 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 5 | $ 3.31 | ||
| 9-1 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 5 | $ 2.74 | ||
| 9-2 | 09116-06215 Bolt (6x30) w/Washer
SKU: 09116-06215 Weight: 0.060000 Brand: Price: $ 3.54 |
Bolt (6x30) w/Washer | 5 | $ 3.54 | S/N 781827 Newer |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
