Suzuki DF 6 Parts Listings - 2007
S/N 00601F-780001 to 00601F-78XXXX

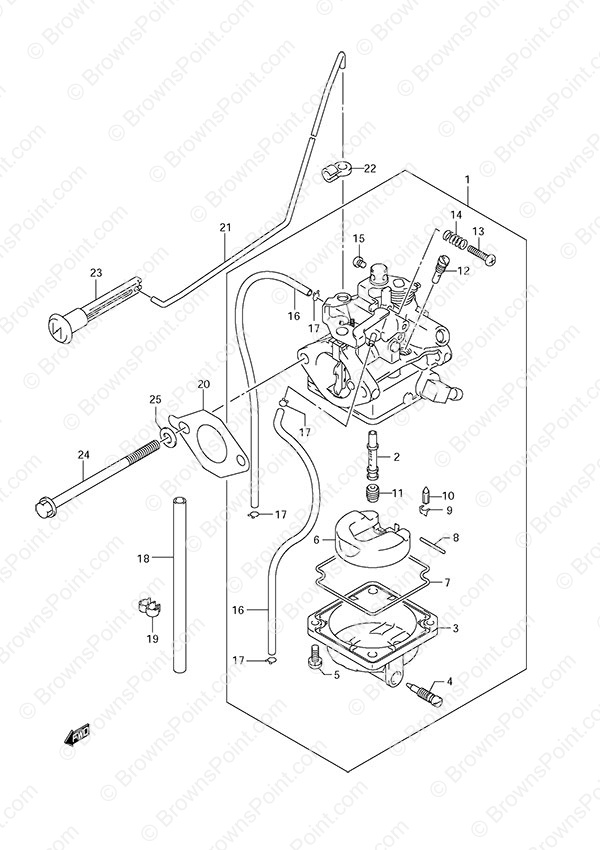

Fig. 7 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-91JB1 Carburetor Assembly
SKU: 13200-91JB1 Weight: 1.000000 Brand: Price: $ 214.08 |
Carburetor Assembly | 1 | $ 214.08 | ||
| 2 | 13236-91J20 Main Nozzle
SKU: 13236-91J20 Weight: 0.060000 Brand: Price: $ 25.12 |
Main Nozzle | 1 | $ 25.12 | ||
| 3 | 13245-91J00 Float Chamber (NLA)
SKU: 13245-91J00 Weight: 0.100000 Brand: Price: $ 44.82 |
Float Chamber (NLA) | 1 | $ 44.82 | ||
| 4 | 13279-91J00 Drain Screw
SKU: 13279-91J00 Weight: 0.060000 Brand: Price: $ 3.42 |
Drain Screw | 1 | $ 3.42 | ||
| 5 | 13247-91J00 Float Chamber Screw (NLA)
SKU: 13247-91J00 Weight: 0.125000 Brand: Price: $ 1.45 |
Float Chamber Screw (NLA) | 2 | $ 1.45 | ||
| 6 | 13250-91J00 Carburetor Float
SKU: 13250-91J00 Weight: 0.060000 Brand: Price: $ 32.46 |
Carburetor Float | 1 | $ 32.46 | ||
| 7 | 13251-91J00 Float Chamber Gasket
SKU: 13251-91J00 Weight: 0.060000 Brand: Price: $ 5.95 |
Float Chamber Gasket | 1 | $ 5.95 | ||
| 8 | 13254-91J00 Float Pin
SKU: 13254-91J00 Weight: 0.060000 Brand: Price: $ 2.77 |
Float Pin | 1 | $ 2.77 | ||
| 9 | 13375-43E00 Valve Clip
SKU: 13375-43E00 Weight: 0.060000 Brand: Price: $ 3.02 |
Valve Clip | 1 | $ 3.02 | ||
| 10 | 13371-91J10 Needle Valve
SKU: 13371-91J10 Weight: 0.060000 Brand: Price: $ 24.19 |
Needle Valve | 1 | $ 24.19 | ||
| 11-1 | 09491-78010 Main Jet #78
SKU: 09491-78010 Weight: 0.060000 Brand: Price: $ 16.18 |
Main Jet #78 | 1 | $ 16.18 | ||
| 12-1 | 09492-38008 Pilot Jet #38
SKU: 09492-38008 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #38 | 1 | $ 15.58 | ||
| 11-2 | 09491-75012 Main Jet #75
SKU: 09491-75012 Weight: 0.100000 Brand: Price: $ 11.45 |
Main Jet #75 | 1 | $ 11.45 | High Altitude Spec | |
| 12-2 | 09492-35029 Pilot Jet #35
SKU: 09492-35029 Weight: 0.060000 Brand: Price: $ 16.18 |
Pilot Jet #35 | 1 | $ 16.18 | High Altitude Spec | |
| 13 | 13534-91J00 Throttle Stop Screw (NLA)
SKU: 13534-91J00 Weight: 0.100000 Brand: Price: $ 2.64 |
Throttle Stop Screw (NLA) | 1 | $ 2.64 | ||
| 14 | 13268-91J10 Stop Screw Spring (NLA)
SKU: 13268-91J10 Weight: 0.100000 Brand: Price: $ 3.09 |
Stop Screw Spring (NLA) | 1 | $ 3.09 | ||
| 15 | 13535-91J00 Screw
SKU: 13535-91J00 Weight: 0.060000 Brand: Price: $ 1.29 |
Screw | 1 | $ 1.29 | ||
| 16 | 13277-91J00 Air Vent Hose
SKU: 13277-91J00 Weight: 0.060000 Brand: Price: $ 7.28 |
Air Vent Hose | 2 | $ 7.28 | ||
| 17 | 13276-91J00 Clip
SKU: 13276-91J00 Weight: 0.100000 Brand: Price: $ 4.10 |
Clip | 4 | $ 4.10 | ||
| 18 | 09351-60802-200 Protector (NLA)
SKU: 09351-60802-200 Weight: 0.100000 Brand: Price: $ 1.67 |
Protector (NLA) | 2 | $ 1.67 | ||
| 19 | 09408-00200 Clamp
SKU: 09408-00200 Weight: 0.100000 Brand: Price: $ 1.73 |
Clamp | 1 | $ 1.73 | ||
| 20 | 13125-91J10 Carburetor Gasket
SKU: 13125-91J10 Weight: 0.060000 Brand: Price: $ 2.63 |
Carburetor Gasket | 1 | $ 2.63 | ||
| 21 | 13413-91J20 Choke Rod (NLA)
SKU: 13413-91J20 Weight: 0.100000 Brand: Price: $ 5.47 |
Choke Rod (NLA) | 1 | $ 5.47 | ||
| 22 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 23 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 24 | 01547-06857 BOLT 6X85
SKU: 01547-06857 Weight: 0.100000 Brand: Price: $ 2.84 |
BOLT 6X85 | 2 | $ 2.84 | ||
| 25 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
