Suzuki DF 6 Parts Listings - 2003
S/N 00601F-371001 to 00601F-371XXX

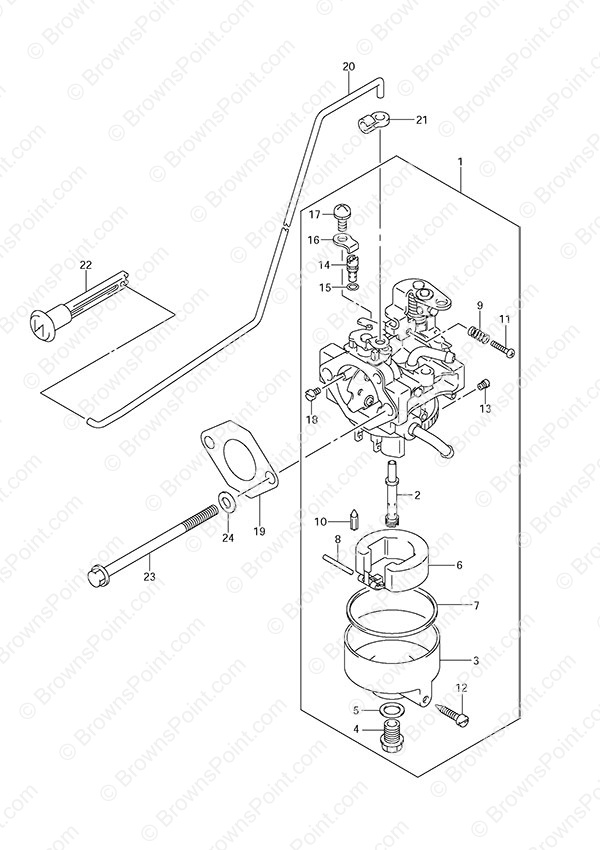

Fig. 6 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-91J50 Carburetor Assembly
SKU: 13200-91J50 Weight: 0.760000 Brand: Price: $ 185.54 |
Carburetor Assembly | 1 | $ 185.54 | ||
| 2 | 13236-91J10 Main Nozzle
SKU: 13236-91J10 Weight: 0.060000 Brand: Price: $ 27.05 |
Main Nozzle | 1 | $ 27.05 | ||
| 3 | 13245-986A0 Float Chamber
SKU: 13245-986A0 Weight: 0.250000 Brand: Price: $ 57.50 |
Float Chamber | 1 | $ 57.50 | ||
| 4 | 13247-986A0 Drain Plug
SKU: 13247-986A0 Weight: 0.100000 Brand: Price: $ 6.64 |
Drain Plug | 1 | $ 6.64 | ||
| 5 | 13249-90100 Drain Plug Gasket
SKU: 13249-90100 Weight: 0.060000 Brand: Price: $ 1.06 |
Drain Plug Gasket | 1 | $ 1.06 | ||
| 6 | 13250-87420 Carburetor Float
SKU: 13250-87420 Weight: 0.060000 Brand: Price: $ 35.33 |
Carburetor Float | 1 | $ 35.33 | ||
| 7 | 13251-87400 Float Chamber Gasket
SKU: 13251-87400 Weight: 0.060000 Brand: Price: $ 5.93 |
Float Chamber Gasket | 1 | $ 5.93 | ||
| 8 | 13254-98300 Float Pin
SKU: 13254-98300 Weight: 0.060000 Brand: Price: $ 3.28 |
Float Pin | 1 | $ 3.28 | ||
| 9 | 13268-92910 Spring
SKU: 13268-92910 Weight: 0.060000 Brand: Price: $ 2.44 |
Spring | 1 | $ 2.44 | ||
| 10 | 13371-91J00 Needle Valve
SKU: 13371-91J00 Weight: 0.060000 Brand: Price: $ 25.12 |
Needle Valve | 1 | $ 25.12 | ||
| 11 | 13534-98900 Screw
SKU: 13534-98900 Weight: 0.060000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 12 | 13279-90000 Adjuster
SKU: 13279-90000 Weight: 0.060000 Brand: Price: $ 6.36 |
Adjuster | 1 | $ 6.36 | ||
| 13-1 | 09491-85013 Main Jet #85
SKU: 09491-85013 Weight: 0.100000 Brand: Price: $ 8.45 |
Main Jet #85 | 1 | $ 8.45 | ||
| 13-2 | 09492-80007 Main Jet #80 (NLA)
SKU: 09492-80007 Weight: 0.100000 Brand: Price: $ 9.64 |
Main Jet #80 (NLA) | 1 | $ 9.64 | High Altitude Spec | |
| 14 | 09492-35028 Pilot Jet #35 (NLA)
SKU: 09492-35028 Weight: 0.100000 Brand: Price: $ 9.98 |
Pilot Jet #35 (NLA) | 1 | $ 9.98 | ||
| 15 | 13278-45010 O-Ring
SKU: 13278-45010 Weight: 0.060000 Brand: Price: $ 5.66 |
O-Ring | 1 | $ 5.66 | ||
| 16 | 13272-91J00 Plate (NLA)
SKU: 13272-91J00 Weight: 0.100000 Brand: Price: $ 3.35 |
Plate (NLA) | 1 | $ 3.35 | ||
| 17 | 02112-35087 Screw (NLA)
SKU: 02112-35087 Weight: 0.100000 Brand: Price: $ 1.29 |
Screw (NLA) | 1 | $ 1.29 | ||
| 18-1 | 09493-80010 Air Jet #0.8
SKU: 09493-80010 Weight: 0.100000 Brand: Price: $ 15.14 |
Air Jet #0.8 | 1 | $ 15.14 | ||
| 18-2 | 09493-18001 Air Jet #0.9 (NLA)
SKU: 09493-18001 Weight: 0.060000 Brand: Price: $ 11.35 |
Air Jet #0.9 (NLA) | 1 | $ 11.35 | High Altitude Spec | |
| 19 | 13125-91J00 Carburetor Gasket
SKU: 13125-91J00 Weight: 0.060000 Brand: Price: $ 2.94 |
Carburetor Gasket | 1 | $ 2.94 | ||
| 20 | 13413-91J00 Choke Rod
SKU: 13413-91J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Choke Rod | 1 | $ 7.28 | ||
| 21 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 22 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 23 | 01547-0680B BOLT
SKU: 01547-0680B Weight: 0.250000 Brand: Price: $ 3.22 |
BOLT | 2 | $ 3.22 | ||
| 24 | 08322-01067 Washer (6.5x13x1.0)
SKU: 08322-01067 Weight: 0.060000 Brand: Price: $ 1.85 |
Washer (6.5x13x1.0) | 2 | $ 1.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
