Suzuki DF 115 Parts Listings 2001 to 2004

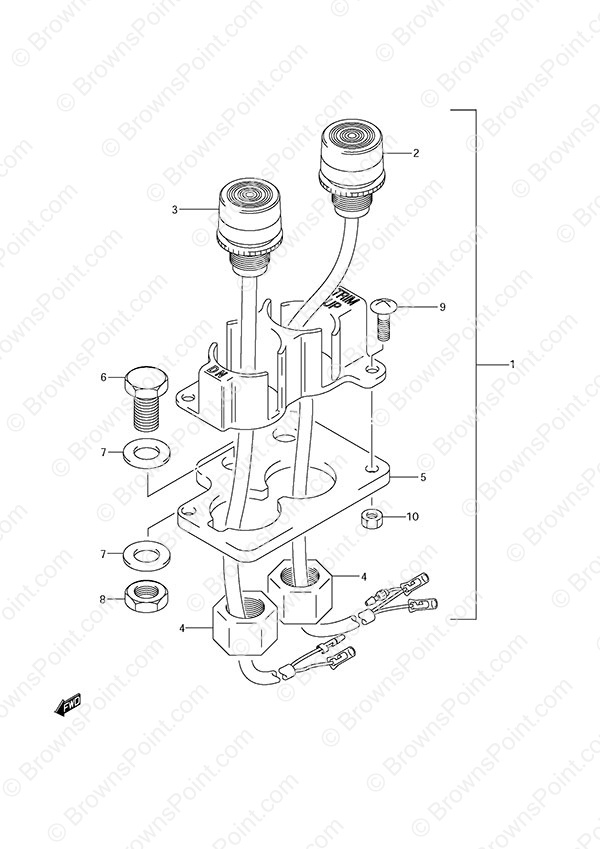

Fig. 58 - Opt: Trim Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37850-87D03 Tilt/Trim Switch Assembly (NLA)
SKU: 37850-87D03 Weight: 0.100000 Brand: Price: $ 80.07 |
Tilt/Trim Switch Assembly (NLA) | 1 | $ 80.07 | L:5000 | |
| 2 | 37860-95324 Up Trim Switch
SKU: 37860-95324 Weight: 0.250000 Brand: Price: $ 31.34 |
Up Trim Switch | 1 | $ 31.34 | ||
| 3 | 37870-95324 Down Trim Switch
SKU: 37870-95324 Weight: 0.250000 Brand: Price: $ 31.32 |
Down Trim Switch | 1 | $ 31.32 | ||
| 4 | 09159-14014 Nut (10mm)
SKU: 09159-14014 Weight: 0.060000 Brand: Price: $ 3.98 |
Nut (10mm) | 2 | $ 3.98 | ||
| 5 | 37852-95211 Trim Switch Plate (NLA)
SKU: 37852-95211 Weight: 0.100000 Brand: Price: $ 15.74 |
Trim Switch Plate (NLA) | 1 | $ 15.74 | ||
| 6 | 09100-08232 Bolt (8x30)
SKU: 09100-08232 Weight: 0.060000 Brand: Price: $ 3.57 |
Bolt (8x30) | 2 | $ 3.57 | ||
| 7 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 4 | $ 1.63 | ||
| 8 | 09140-08019 Nut (8mm)
SKU: 09140-08019 Weight: 0.060000 Brand: Price: $ 2.02 |
Nut (8mm) | 2 | $ 2.02 | ||
| 9 | 02142-04127 SCREW 4X12 CROS
SKU: 02142-04127 Weight: 0.060000 Brand: Price: $ 1.45 |
SCREW 4X12 CROS | 2 | $ 1.45 | ||
| 10 | 08310-00047 Nut
SKU: 08310-00047 Weight: 0.100000 Brand: Price: $ 1.93 |
Nut | 2 | $ 1.93 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
