Suzuki DF 115 Parts Listings 2001 to 2004

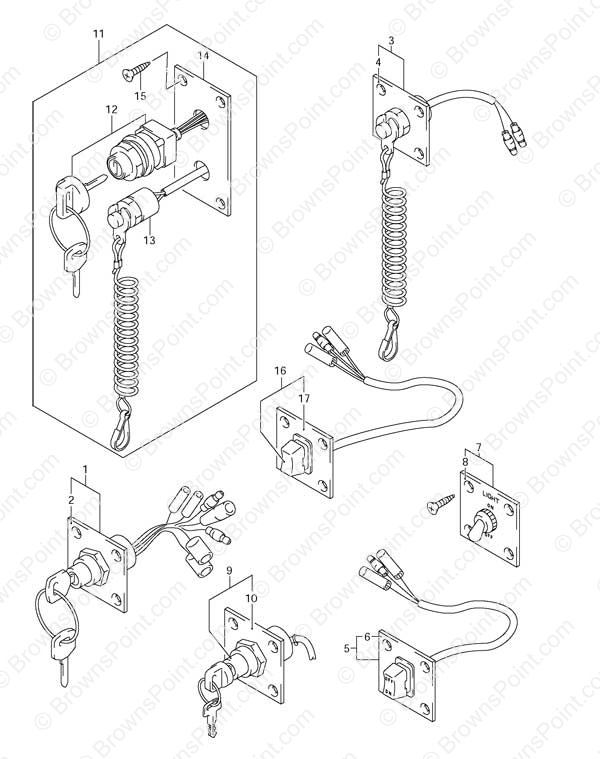

Fig. 56 - Opt: Switch
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 37100-92E00 Ignition Switch Panel Assembly (NLA)
SKU: 37100-92E00 Weight: 0.100000 Brand: Price: $ 60.05 |
Ignition Switch Panel Assembly (NLA) | 1 | $ 60.05 | ||
| 2 | 37139-92E01 Single Ingition Switch Panel
SKU: 37139-92E01 Weight: 0.100000 Brand: Price: $ 45.23 |
Single Ingition Switch Panel | 1 | $ 45.23 | ||
| 3-1 | 37803-92E00 Emergency Stop Switch Assembly (NLA)
SKU: 37803-92E00 Weight: 0.260000 Brand: Price: $ 47.40 |
Emergency Stop Switch Assembly (NLA) | 1 | $ 47.40 | ||
| 3-2 | 37803-99E05 Emergency Stop Switch Assembly
SKU: 37803-99E05 Weight: 0.250000 Brand: Price: $ 71.13 |
Emergency Stop Switch Assembly | 1 | $ 71.13 | 2004 | |
| 4-1 | 37825-92E00 Emergency Switch Panel
SKU: 37825-92E00 Weight: 0.100000 Brand: Price: $ 42.14 |
Emergency Switch Panel | 1 | $ 42.14 | ||
| 4-2 | 37825-99E00 Emergency Switch Panel
SKU: 37825-99E00 Weight: 0.125000 Brand: Price: $ 46.73 |
Emergency Switch Panel | 1 | $ 46.73 | For Ref# 3-2 | |
| 5 | 37805-92E00 PTT Switch Set (NLA)
SKU: 37805-92E00 Weight: 0.100000 Brand: Price: $ 61.10 |
PTT Switch Set (NLA) | 1 | $ 61.10 | ||
| 6 | 37855-92E00 PTT Switch Panel (NLA)
SKU: 37855-92E00 Weight: 0.100000 Brand: Price: $ 25.08 |
PTT Switch Panel (NLA) | 1 | $ 25.08 | ||
| 7 | 37210-92E00 Lighting Switch Set (NLA)
SKU: 37210-92E00 Weight: 0.100000 Brand: Price: $ 67.50 |
Lighting Switch Set (NLA) | 1 | $ 67.50 | ||
| 8 | 37212-92E00 Lighting Switch Panel (NLA)
SKU: 37212-92E00 Weight: 0.100000 Brand: Price: $ 22.90 |
Lighting Switch Panel (NLA) | 1 | $ 22.90 | ||
| 9-1 | 37100-92E01 Ignition Switch Panel Assembly (NLA)
SKU: 37100-92E01 Weight: 0.100000 Brand: Price: $ 60.05 |
Ignition Switch Panel Assembly (NLA) | 1 | $ 60.05 | ||
| 9-2 | 37100-99E00 Single Ignition Switch Assembly
SKU: 37100-99E00 Weight: 0.420000 Brand: Price: $ 71.33 |
Single Ignition Switch Assembly | 1 | $ 71.33 | 2004 | |
| 10-1 | 37139-92E01 Single Ingition Switch Panel
SKU: 37139-92E01 Weight: 0.100000 Brand: Price: $ 45.23 |
Single Ingition Switch Panel | 1 | $ 45.23 | ||
| 10-2 | 37139-99E00 Ignition Switch Panel
SKU: 37139-99E00 Weight: 0.125000 Brand: Price: $ 45.19 |
Ignition Switch Panel | 1 | $ 45.19 | For Ref# 9-2 | |
| 12 | 37110-99E02 Ignition Switch Assembly
SKU: 37110-99E02 Weight: 0.300000 Brand: Price: $ 96.58 |
Ignition Switch Assembly | 1 | $ 96.58 | ||
| 13 | 37820-92E05 Emergency Stop Switch Assembly
SKU: 37820-92E05 Weight: 0.250000 Brand: Price: $ 42.80 |
Emergency Stop Switch Assembly | 1 | $ 42.80 | ||
| 14 | 37139-99E20 Ignition Switch Panel
SKU: 37139-99E20 Weight: 0.125000 Brand: Price: $ 62.69 |
Ignition Switch Panel | 1 | $ 62.69 | ||
| 15 | 03121-0516A SCREW
SKU: 03121-0516A Weight: 0.060000 Brand: Price: $ 1.96 |
SCREW | 4 | $ 1.96 | ||
| 16 | 37805-99E00 PTT Switch Assembly
SKU: 37805-99E00 Weight: 0.300000 Brand: Price: $ 107.03 |
PTT Switch Assembly | 1 | $ 107.03 | 2004 | |
| 17 | 37855-99E00 PTT Switch Panel
SKU: 37855-99E00 Weight: 0.100000 Brand: Price: $ 48.50 |
PTT Switch Panel | 1 | $ 48.50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
