Suzuki DF 115 Parts Listings 2001 to S/N 11502F-11XXXX 2008 to S/N 11502Z-11XXXX

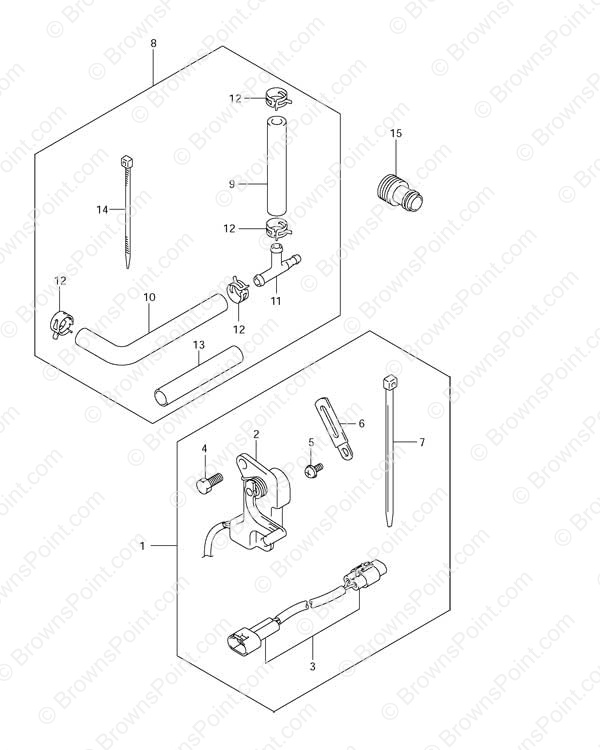

Fig. 53 - Opt: Trim Sender
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34804-99E00 Trim Sender Set - 2 Wire
SKU: 34804-99E00 Weight: 1.080000 Brand: Price: $ 160.29 |
Trim Sender Set - 2 Wire | 1 | $ 160.29 | 2001 | |
| 2 | 34804-99E00 Trim Sender Set - 2 Wire
SKU: 34804-99E00 Weight: 1.080000 Brand: Price: $ 160.29 |
Trim Sender Set - 2 Wire | 1 | $ 160.29 | ||
| 3 | 36682-90J00 Trim Wire Harness (NLA)
SKU: 36682-90J00 Weight: 1.000000 Brand: Price: $ 57.95 |
Trim Wire Harness (NLA) | 1 | $ 57.95 | 2001 | |
| 4 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 2001 | |
| 5 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | 2001 | |
| 6 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | 2001 | |
| 7-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | 2001 | |
| 7-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | 2001 | |
| 8 | 34660-90J04 Water Pressure Gauge Install Kit
SKU: 34660-90J04 Weight: 0.250000 Brand: Price: $ 10.05 |
Water Pressure Gauge Install Kit | 1 | $ 10.05 | ||
| 9 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->160 | |
| 10 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->210 | |
| 11 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 12 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 15 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
