Suzuki DF 250AP Parts Listings - 2017
S/N 25003P-710001 to 25003P-71XXXX

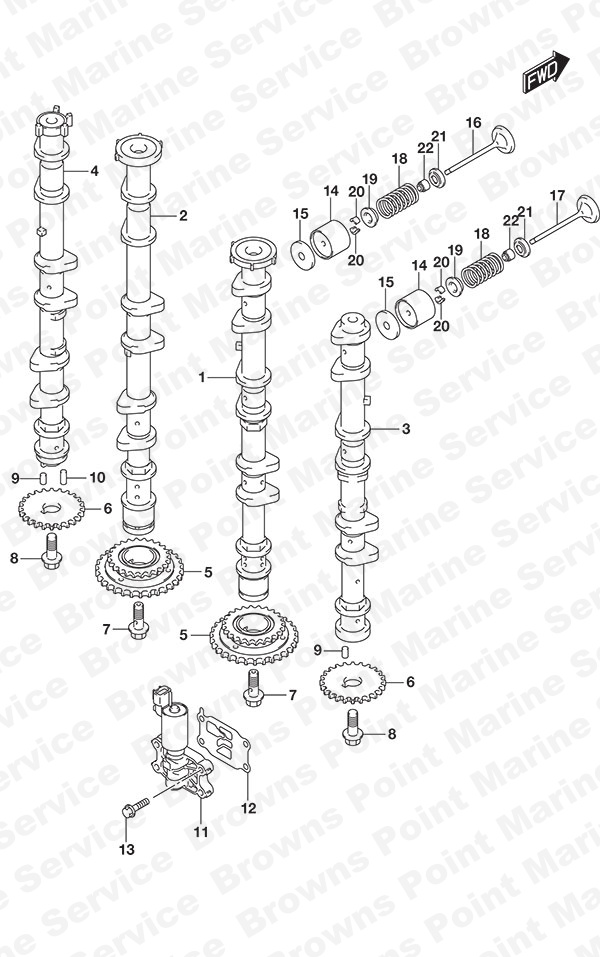

Fig. 121 - Camshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12701-98J20 Starboard Intake Camshaft
SKU: 12701-98J20 Weight: 5.000000 Brand: Price: $ 472.01 |
Starboard Intake Camshaft | 1 | $ 472.01 | ||
| 2 | 12705-98J10 Port Intake Camshaft
SKU: 12705-98J10 Weight: 5.000000 Brand: Price: $ 472.01 |
Port Intake Camshaft | 1 | $ 472.01 | ||
| 3 | 12721-98J10 Starboard Exhaust Camshaft
SKU: 12721-98J10 Weight: 5.000000 Brand: Price: $ 344.10 |
Starboard Exhaust Camshaft | 1 | $ 344.10 | ||
| 4 | 12729-98J20 Port Exhaust Camshaft
SKU: 12729-98J20 Weight: 0.100000 Brand: Price: $ 444.60 |
Port Exhaust Camshaft | 1 | $ 444.60 | ||
| 5 | 12740-93J00 Cam Timing Sprocket Assy
SKU: 12740-93J00 Weight: 1.000000 Brand: Price: $ 484.17 |
Cam Timing Sprocket Assy | 2 | $ 484.17 | ||
| 6 | 12748-93J00 Exhaust Camshaft Sprocket
SKU: 12748-93J00 Weight: 0.500000 Brand: Price: $ 28.55 |
Exhaust Camshaft Sprocket | 2 | $ 28.55 | ||
| 7 | 12753-93J00 Intake Camshaft Bolt
SKU: 12753-93J00 Weight: 0.060000 Brand: Price: $ 5.93 |
Intake Camshaft Bolt | 2 | $ 5.93 | ||
| 8 | 12749-93J00 Exhaust Camshaft Bolt
SKU: 12749-93J00 Weight: 0.125000 Brand: Price: $ 3.29 |
Exhaust Camshaft Bolt | 2 | $ 3.29 | ||
| 9 | 09202-05032 Pin (5x12)
SKU: 09202-05032 Weight: 0.060000 Brand: Price: $ 1.42 |
Pin (5x12) | 3 | $ 1.42 | ||
| 10 | 09261-05006 Pin (5x18)
SKU: 09261-05006 Weight: 0.100000 Brand: Price: $ 1.46 |
Pin (5x18) | 1 | $ 1.46 | ||
| 11 | 16550-93J00 Oil Control Valve
SKU: 16550-93J00 Weight: 0.500000 Brand: Price: $ 231.11 |
Oil Control Valve | 2 | $ 231.11 | ||
| 12 | 16555-93J01 OCV Gasket
SKU: 16555-93J01 Weight: 0.060000 Brand: Price: $ 6.92 |
OCV Gasket | 2 | $ 6.92 | ||
| 13 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 8 | $ 2.33 | ||
| 14 | 12891-93J00 Tappet
SKU: 12891-93J00 Weight: 0.200000 Brand: Price: $ 35.38 |
Tappet | 24 | $ 35.38 | ||
| 15-1 | 12892-93J00-218 Tappet Shim (2.175)
SKU: 12892-93J00-218 Weight: 0.060000 Brand: Price: $ 10.13 |
Tappet Shim (2.175) | 0 | $ 10.13 | ||
| 15-2 | 12892-93J00-220 Tappet Shim (2.200)
SKU: 12892-93J00-220 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.200) | 0 | $ 9.94 | ||
| 15-3 | 12892-93J10-223 Tappet Shim (2.225)
SKU: 12892-93J10-223 Weight: 0.060000 Brand: Price: $ 7.90 |
Tappet Shim (2.225) | 0 | $ 7.90 | ||
| 15-4 | 12892-93J10-225 SHIM,TAPPET(T:2
SKU: 12892-93J10-225 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-5 | 12892-93J10-228 SHIM,TAPPET(T:2
SKU: 12892-93J10-228 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-6 | 12892-93J00-230 Tappet Shim (2.300)
SKU: 12892-93J00-230 Weight: 0.060000 Brand: Price: $ 10.34 |
Tappet Shim (2.300) | 0 | $ 10.34 | ||
| 15-7 | 12892-93J10-233 SHIM,TAPPET(T:2
SKU: 12892-93J10-233 Weight: 0.000000 Brand: Price: $ 9.05 |
SHIM,TAPPET(T:2 | 0 | $ 9.05 | ||
| 15-8 | 12892-93J00-235 Tappet Shim (2.350)
SKU: 12892-93J00-235 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.350) | 0 | $ 9.94 | ||
| 15-9 | 12892-93J10-238 SHIM,TAPPET(T:2
SKU: 12892-93J10-238 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 15-10 | 12892-93J10-240 SHIM,TAPPET(T:2
SKU: 12892-93J10-240 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-11 | 12892-93J10-243 SHIM,TAPPET(T:2
SKU: 12892-93J10-243 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 15-12 | 12892-93J10-245 SHIM,TAPPET(T:2
SKU: 12892-93J10-245 Weight: 0.000000 Brand: Price: $ 8.37 |
SHIM,TAPPET(T:2 | 0 | $ 8.37 | ||
| 15-13 | 12892-93J00-248 Tappet Shim (2.475)
SKU: 12892-93J00-248 Weight: 0.060000 Brand: Price: $ 10.46 |
Tappet Shim (2.475) | 0 | $ 10.46 | ||
| 15-14 | 12892-93J10-250 SHIM,TAPPET(T:2
SKU: 12892-93J10-250 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-15 | 12892-93J00-235 Tappet Shim (2.350)
SKU: 12892-93J00-235 Weight: 0.060000 Brand: Price: $ 9.94 |
Tappet Shim (2.350) | 0 | $ 9.94 | ||
| 15-16 | 12892-93J00-255 Tappet Shim (2.550)
SKU: 12892-93J00-255 Weight: 0.060000 Brand: Price: $ 10.00 |
Tappet Shim (2.550) | 0 | $ 10.00 | ||
| 15-17 | 12892-93J10-258 SHIM,TAPPET(T:2
SKU: 12892-93J10-258 Weight: 0.000000 Brand: Price: $ 7.90 |
SHIM,TAPPET(T:2 | 0 | $ 7.90 | ||
| 15-18 | 12892-93J00-260 Tappet Shim (2.600)
SKU: 12892-93J00-260 Weight: 0.125000 Brand: Price: $ 9.76 |
Tappet Shim (2.600) | 0 | $ 9.76 | ||
| 15-19 | 12892-93J00-263 Tappet Shim (2.625)
SKU: 12892-93J00-263 Weight: 0.125000 Brand: Price: $ 10.34 |
Tappet Shim (2.625) | 0 | $ 10.34 | ||
| 15-20 | 12892-93J00-265 Tappet Shim (2.650)
SKU: 12892-93J00-265 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.650) | 0 | $ 10.13 | ||
| 15-21 | 12892-93J00-268 Tappet Shim (2.675)
SKU: 12892-93J00-268 Weight: 0.125000 Brand: Price: $ 9.94 |
Tappet Shim (2.675) | 0 | $ 9.94 | ||
| 15-22 | 12892-93J00-270 Tappet Shim (2.700)
SKU: 12892-93J00-270 Weight: 0.125000 Brand: Price: $ 10.13 |
Tappet Shim (2.700) | 0 | $ 10.13 | ||
| 15-23 | 12892-93J00-273 Tappet Shim (2.725)
SKU: 12892-93J00-273 Weight: 0.125000 Brand: Price: $ 10.86 |
Tappet Shim (2.725) | 0 | $ 10.86 | ||
| 15-24 | 12892-93J00-275 Tappet Shim (2.750)
SKU: 12892-93J00-275 Weight: 0.060000 Brand: Price: $ 10.86 |
Tappet Shim (2.750) | 0 | $ 10.86 | ||
| 15-25 | 12892-93J10-278 SHIM,TAPPET(T:2
SKU: 12892-93J10-278 Weight: 0.000000 Brand: Price: $ 8.53 |
SHIM,TAPPET(T:2 | 0 | $ 8.53 | ||
| 15-26 | 12892-93J10-280 SHIM,TAPPET(T:2
SKU: 12892-93J10-280 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-27 | 12892-93J10-283 SHIM,TAPPET(T:2
SKU: 12892-93J10-283 Weight: 0.000000 Brand: Price: $ 7.90 |
SHIM,TAPPET(T:2 | 0 | $ 7.90 | ||
| 15-42 | 12892-93J10-285 SHIM,TAPPET(T:2
SKU: 12892-93J10-285 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-29 | 12892-93J10-288 SHIM,TAPPET(T:2
SKU: 12892-93J10-288 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-30 | 12892-93J10-290 SHIM,TAPPET(T:2
SKU: 12892-93J10-290 Weight: 0.000000 Brand: Price: $ 10.67 |
SHIM,TAPPET(T:2 | 0 | $ 10.67 | ||
| 15-31 | 12892-93J10-293 SHIM,TAPPET(T:2
SKU: 12892-93J10-293 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-32 | 12892-93J10-295 SHIM,TAPPET(T:2
SKU: 12892-93J10-295 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-33 | 12892-93J10-298 SHIM,TAPPET(T:2
SKU: 12892-93J10-298 Weight: 0.000000 Brand: Price: $ 8.54 |
SHIM,TAPPET(T:2 | 0 | $ 8.54 | ||
| 15-34 | 12892-93J10-300 SHIM,TAPPET(T:3
SKU: 12892-93J10-300 Weight: 0.000000 Brand: Price: $ 8.53 |
SHIM,TAPPET(T:3 | 0 | $ 8.53 | ||
| 16 | 12911-98J00 Intake Valve
SKU: 12911-98J00 Weight: 0.150000 Brand: Price: $ 29.92 |
Intake Valve | 12 | $ 29.92 | ||
| 17 | 12915-93J60 Exhaust Valve
SKU: 12915-93J60 Weight: 0.120000 Brand: Price: $ 38.68 |
Exhaust Valve | 12 | $ 38.68 | ||
| 18 | 12921-93J11 Valve Spring
SKU: 12921-93J11 Weight: 0.250000 Brand: Price: $ 7.13 |
Valve Spring | 24 | $ 7.13 | ||
| 19 | 12931-78G00 Valve Spring Retainer
SKU: 12931-78G00 Weight: 0.060000 Brand: Price: $ 4.25 |
Valve Spring Retainer | 24 | $ 4.25 | ||
| 20 | 12932-24400 Valve Cotter
SKU: 12932-24400 Weight: 0.060000 Brand: Price: $ 2.04 |
Valve Cotter | 48 | $ 2.04 | ||
| 21 | 12933-69G10 Valve Spring Seat
SKU: 12933-69G10 Weight: 0.060000 Brand: Price: $ 3.33 |
Valve Spring Seat | 24 | $ 3.33 | ||
| 22 | 09289-05006 Valve Stem Seal
SKU: 09289-05006 Weight: 0.060000 Brand: Price: $ 4.02 |
Valve Stem Seal | 24 | $ 4.02 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
