Suzuki DF 250 Parts Listings - 2017
S/N 25004F-710001 to 25004F-71XXXX

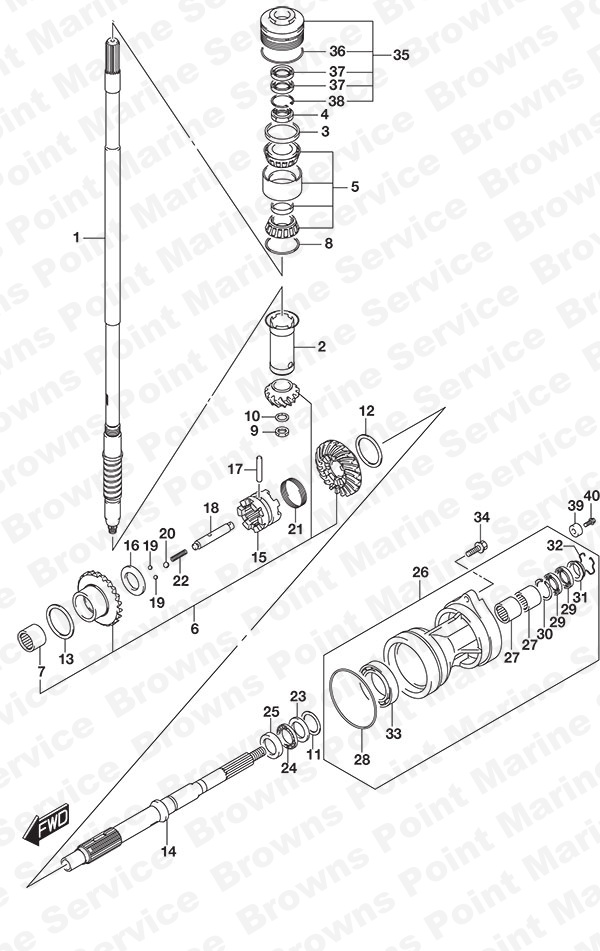

Fig. 220C - Transmission SS Model
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-98J22 Drive Shaft (L)
SKU: 57110-98J22 Weight: 20.000000 Brand: Price: $ 691.81 |
Drive Shaft (L) | 1 | $ 691.81 | w/Transom (L) | |
| 2 | 57133-98J00 Drive Shaft Collar
SKU: 57133-98J00 Weight: 0.100000 Brand: Price: $ 14.52 |
Drive Shaft Collar | 1 | $ 14.52 | ||
| 3 | 57134-93J00 Drive Shaft Bearing Spacer
SKU: 57134-93J00 Weight: 0.250000 Brand: Price: $ 25.91 |
Drive Shaft Bearing Spacer | 1 | $ 25.91 | ||
| 4 | 09159-28003 Drive Shaft Bearing Nut
SKU: 09159-28003 Weight: 0.100000 Brand: Price: $ 44.52 |
Drive Shaft Bearing Nut | 1 | $ 44.52 | ||
| 5 | 09269-32002 Bearing (32x66x49)
SKU: 09269-32002 Weight: 0.500000 Brand: Price: $ 205.05 |
Bearing (32x66x49) | 1 | $ 205.05 | ||
| 6 | 57300-98880 Pinion & Gear Set
SKU: 57300-98880 Weight: 5.000000 Brand: Price: $ 1,453.59 |
Pinion & Gear Set | 1 | $ 1,453.59 | ||
| 7 | 09263-25067 Bearing (25x32x26)
SKU: 09263-25067 Weight: 0.200000 Brand: Price: $ 33.34 |
Bearing (25x32x26) | 1 | $ 33.34 | ||
| 8-1 | 09181-60004 Shim (0.45)
SKU: 09181-60004 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.45) | 1 | $ 4.85 | ||
| 8-2 | 09181-60005 Shim (0.50)
SKU: 09181-60005 Weight: 0.060000 Brand: Price: $ 4.85 |
Shim (0.50) | 1 | $ 4.85 | ||
| 8-3 | 09181-60006 Shim (0.55)
SKU: 09181-60006 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.55) | 1 | $ 4.85 | ||
| 8-4 | 09181-60007 Shim (0.60)
SKU: 09181-60007 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.60) | 1 | $ 4.85 | ||
| 8-5 | 09181-60008 Shim (0.65)
SKU: 09181-60008 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.65) | 1 | $ 4.85 | ||
| 8-6 | 09181-60009 Shim (0.70)
SKU: 09181-60009 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.70) | 1 | $ 4.85 | ||
| 8-7 | 09181-60010 Shim (0.75)
SKU: 09181-60010 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.75) | 1 | $ 4.85 | ||
| 8-8 | 09181-60011 Shim (0.80)
SKU: 09181-60011 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.80) | 1 | $ 4.85 | ||
| 8-9 | 09181-60012 Shim (0.85)
SKU: 09181-60012 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.85) | 1 | $ 4.85 | ||
| 8-10 | 09181-60013 Shim (0.90)
SKU: 09181-60013 Weight: 0.100000 Brand: Price: $ 4.85 |
Shim (0.90) | 1 | $ 4.85 | ||
| 9 | 09140-16026 Nut 16mm
SKU: 09140-16026 Weight: 0.060000 Brand: Price: $ 5.16 |
Nut 16mm | 1 | $ 5.16 | ||
| 10 | 08221-16256 Washer
SKU: 08221-16256 Weight: 0.060000 Brand: Price: $ 1.91 |
Washer | 1 | $ 1.91 | ||
| 11-1 | 09160-35015 Washer (35x46x0.60)
SKU: 09160-35015 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.60) | 1 | $ 7.36 | Prop Shaft Rev | |
| 11-2 | 09160-35014 Washer (35x46x0.70)
SKU: 09160-35014 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.70) | 1 | $ 7.36 | ||
| 11-3 | 09160-35013 Washer (35x46x0.80)
SKU: 09160-35013 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.80) | 1 | $ 7.36 | ||
| 11-4 | 09160-35006 Washer (35x46x0.90)
SKU: 09160-35006 Weight: 0.100000 Brand: Price: $ 3.68 |
Washer (35x46x0.90) | 1 | $ 3.68 | ||
| 11-5 | 09160-35008 Washer (35x46x0.95)
SKU: 09160-35008 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x0.95) | 1 | $ 4.26 | ||
| 11-6 | 09160-35002 Washer (35x46x1.00)
SKU: 09160-35002 Weight: 0.060000 Brand: Price: $ 3.47 |
Washer (35x46x1.00) | 1 | $ 3.47 | ||
| 11-7 | 09160-35009 Washer (35x46x1.05)
SKU: 09160-35009 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x1.05) | 1 | $ 4.26 | ||
| 11-8 | 09160-35003 Washer (35x46x1.10)
SKU: 09160-35003 Weight: 0.060000 Brand: Price: $ 4.26 |
Washer (35x46x1.10) | 1 | $ 4.26 | ||
| 11-9 | 09160-35010 Washer (35x46x1.15)
SKU: 09160-35010 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (35x46x1.15) | 1 | $ 4.13 | ||
| 12-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | Rev Gear | |
| 12-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 12-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 12-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 12-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 12-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 12-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 12-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 12-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 12-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 13-1 | 09181-50020 Shim (0.45)
SKU: 09181-50020 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.45) | 1 | $ 5.20 | Fwd Gear | |
| 13-2 | 09181-50021 Shim (0.50)
SKU: 09181-50021 Weight: 0.060000 Brand: Price: $ 5.09 |
Shim (0.50) | 1 | $ 5.09 | ||
| 13-3 | 09181-50022 Shim (0.55)
SKU: 09181-50022 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.55) | 1 | $ 5.30 | ||
| 13-4 | 09181-50023 Shim (0.60)
SKU: 09181-50023 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.60) | 1 | $ 5.20 | ||
| 13-5 | 09181-50024 Shim (0.65)
SKU: 09181-50024 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.65) | 1 | $ 5.30 | ||
| 13-6 | 09181-50025 Shim (0.70)
SKU: 09181-50025 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.70) | 1 | $ 5.30 | ||
| 13-7 | 09181-50026 Shim (0.75)
SKU: 09181-50026 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.75) | 1 | $ 5.20 | ||
| 13-8 | 09181-50027 Shim (0.80)
SKU: 09181-50027 Weight: 0.060000 Brand: Price: $ 5.20 |
Shim (0.80) | 1 | $ 5.20 | ||
| 13-9 | 09181-50028 Shim (0.85)
SKU: 09181-50028 Weight: 0.100000 Brand: Price: $ 5.20 |
Shim (0.85) | 1 | $ 5.20 | ||
| 13-10 | 09181-50029 Shim (0.90)
SKU: 09181-50029 Weight: 0.060000 Brand: Price: $ 5.30 |
Shim (0.90) | 1 | $ 5.30 | ||
| 14 | 57610-98J20 Propeller Shaft Assembly
SKU: 57610-98J20 Weight: 5.000000 Brand: Price: $ 550.86 |
Propeller Shaft Assembly | 1 | $ 550.86 | ||
| 15 | 57621-98J10 Clutch Dog Shifter
SKU: 57621-98J10 Weight: 1.200000 Brand: Price: $ 372.51 |
Clutch Dog Shifter | 1 | $ 372.51 | ||
| 16 | 09160-25080 Thrust Washer
SKU: 09160-25080 Weight: 0.100000 Brand: Price: $ 16.76 |
Thrust Washer | 1 | $ 16.76 | ||
| 17 | 09202-08011 Clutch Dog Shifter Pin
SKU: 09202-08011 Weight: 0.250000 Brand: Price: $ 13.70 |
Clutch Dog Shifter Pin | 1 | $ 13.70 | ||
| 18 | 57631-98J10 Connector Pin
SKU: 57631-98J10 Weight: 0.200000 Brand: Price: $ 50.38 |
Connector Pin | 1 | $ 50.38 | ||
| 19 | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 20 | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 21 | 09440-56001 Clutch Dog Shifter Spring
SKU: 09440-56001 Weight: 0.187500 Brand: Price: $ 6.53 |
Clutch Dog Shifter Spring | 1 | $ 6.53 | ||
| 22 | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 23 | 09160-30056 Washer (32x47x3)
SKU: 09160-30056 Weight: 0.062500 Brand: Price: $ 36.35 |
Washer (32x47x3) | 1 | $ 36.35 | ||
| 24 | 09269-30014 Thrust Bearing (30x47x2)
SKU: 09269-30014 Weight: 0.060000 Brand: Price: $ 13.67 |
Thrust Bearing (30x47x2) | 1 | $ 13.67 | ||
| 25 | 09160-30055 Washer (30x47x6)
SKU: 09160-30055 Weight: 0.062500 Brand: Price: $ 115.57 |
Washer (30x47x6) | 1 | $ 115.57 | ||
| 26 | 56120-98J00-YAY Propeller Shaft Bearing Housing
SKU: 56120-98J00-YAY Weight: 2.000000 Brand: Price: $ 355.09 |
Propeller Shaft Bearing Housing | 1 | $ 355.09 | ||
| 27 | 09263-30063 Bearing (30x40x25)
SKU: 09263-30063 Weight: 0.200000 Brand: Price: $ 43.67 |
Bearing (30x40x25) | 2 | $ 43.67 | ||
| 28 | 09280-00040 O-Ring
SKU: 09280-00040 Weight: 0.060000 Brand: Price: $ 7.36 |
O-Ring | 1 | $ 7.36 | ||
| 29 | 09282-30006 Oil Seal (30x45x6)
SKU: 09282-30006 Weight: 0.060000 Brand: Price: $ 5.72 |
Oil Seal (30x45x6) | 2 | $ 5.72 | ||
| 30 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 31 | 56123-93J00 Oil Seal Protector
SKU: 56123-93J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Oil Seal Protector | 1 | $ 6.78 | ||
| 32 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 33 | 08113-62100 BEARING
SKU: 08113-62100 Weight: 0.100000 Brand: Price: $ 63.62 |
BEARING | 1 | $ 63.62 | ||
| 34 | 09116-10177 Bolt (10x35)
SKU: 09116-10177 Weight: 0.125000 Brand: Price: $ 7.48 |
Bolt (10x35) | 2 | $ 7.48 | ||
| 35 | 56130-93J02 Drive Shaft Bearing Housing
SKU: 56130-93J02 Weight: 0.560000 Brand: Price: $ 91.72 |
Drive Shaft Bearing Housing | 1 | $ 91.72 | ||
| 36 | 09280-66004 O-Ring
SKU: 09280-66004 Weight: 0.060000 Brand: Price: $ 5.59 |
O-Ring | 1 | $ 5.59 | ||
| 37 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 38 | 09381-40003 Circlip
SKU: 09381-40003 Weight: 0.060000 Brand: Price: $ 4.73 |
Circlip | 1 | $ 4.73 | ||
| 39 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 40 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
