Suzuki DF 250 Parts Listings - 2017
S/N 25003F-710001 to 25003F-71XXXX
S/N 25003Z-710001 to 25003Z-71XXXX
S/N 25004F-710001 to 25004F-71XXXX

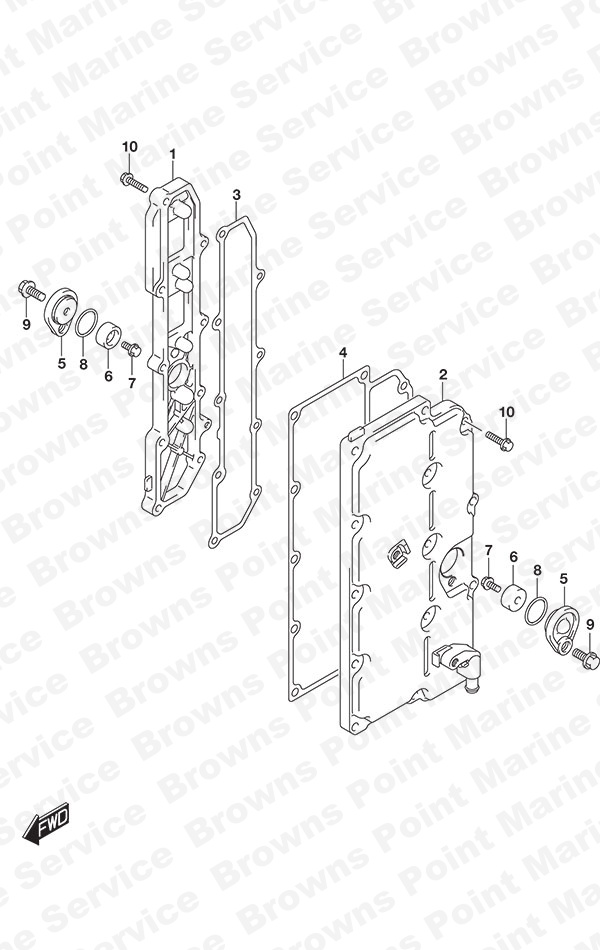

Fig. 140 - Exhaust Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 14141-93J01 Starboard Exhaust Cover
SKU: 14141-93J01 Weight: 1.000000 Brand: Price: $ 88.91 |
Starboard Exhaust Cover | 1 | $ 88.91 | ||
| 2 | 14140-98J01 Port Exhaust Cover
SKU: 14140-98J01 Weight: 2.000000 Brand: Price: $ 145.58 |
Port Exhaust Cover | 1 | $ 145.58 | ||
| 3 | 14151-93J00 Starboard Exhaust Cover Gasket
SKU: 14151-93J00 Weight: 0.200000 Brand: Price: $ 9.24 |
Starboard Exhaust Cover Gasket | 1 | $ 9.24 | ||
| 4 | 14152-93J00 Port Exhaust Cover Gasket
SKU: 14152-93J00 Weight: 0.150000 Brand: Price: $ 20.53 |
Port Exhaust Cover Gasket | 1 | $ 20.53 | ||
| 5 | 11261-93J00 Protection Anode Cover
SKU: 11261-93J00 Weight: 0.150000 Brand: Price: $ 16.29 |
Protection Anode Cover | 2 | $ 16.29 | ||
| 6 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 2 | $ 7.36 | ||
| 7 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 2 | $ 2.99 | ||
| 8 | 09280-22019 O-Ring
SKU: 09280-22019 Weight: 0.060000 Brand: Price: $ 2.38 |
O-Ring | 2 | $ 2.38 | ||
| 9 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 10 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 23 | $ 2.33 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
