Suzuki DF 250 Parts Listings - 2017
S/N 25003F-710001 to 25003F-71XXXX
S/N 25003Z-710001 to 25003Z-71XXXX
S/N 25004F-710001 to 25004F-71XXXX

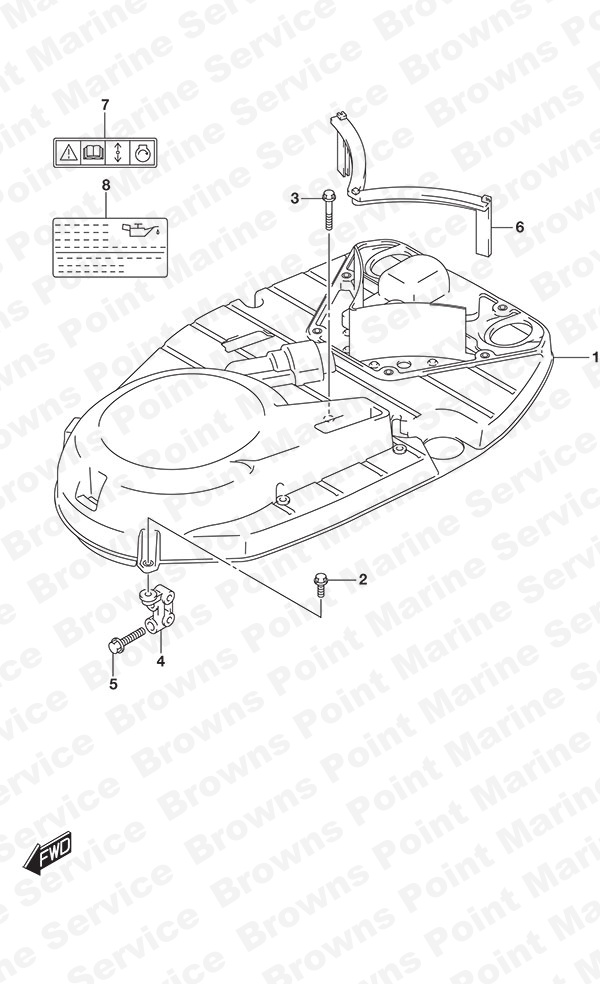

Fig. 136 - Ring Gear Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11510-93J04 COVER,RING GEAR
SKU: 11510-93J04 Weight: 0.000000 Brand: Price: $ 125.97 |
COVER,RING GEAR | 1 | $ 125.97 | ||
| 2 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 3 | 01550-06407 BOLT
SKU: 01550-06407 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 1 | $ 2.74 | ||
| 4 | 11515-93J00 Ring Gear Cover Brace
SKU: 11515-93J00 Weight: 0.100000 Brand: Price: $ 26.55 |
Ring Gear Cover Brace | 1 | $ 26.55 | ||
| 5 | 01550-08357 BOLT
SKU: 01550-08357 Weight: 0.060000 Brand: Price: $ 3.54 |
BOLT | 2 | $ 3.54 | ||
| 6 | 11516-93J00 Ring Gear Cover Flap
SKU: 11516-93J00 Weight: 1.000000 Brand: Price: $ 13.24 |
Ring Gear Cover Flap | 1 | $ 13.24 | ||
| 7 | 69711-93E11 Label (S.I.G.P)
SKU: 69711-93E11 Weight: 0.060000 Brand: Price: $ 4.45 |
Label (S.I.G.P) | 1 | $ 4.45 | ||
| 8 | 61494-93J01 Oil & Clearance Label
SKU: 61494-93J01 Weight: 0.060000 Brand: Price: $ 5.15 |
Oil & Clearance Label | 1 | $ 5.15 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
