Suzuki DF 115 Parts Listings 2008 to S/N 11502Z-11XXXX

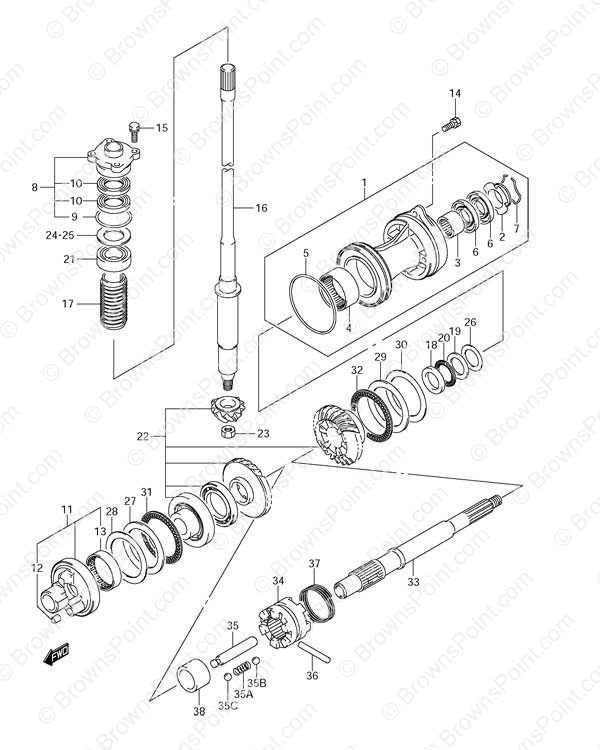

Fig. 44 - Transmission Counter Rotation
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 56120-92J12-0EP Propeller Shaft Bearing Housing
SKU: 56120-92J12-0EP Weight: 3.040000 Brand: Price: $ 444.19 |
Propeller Shaft Bearing Housing | 1 | $ 444.19 | ||
| 2 | 56123-92J00 Oil Seal Protector Washer
SKU: 56123-92J00 Weight: 0.060000 Brand: Price: $ 7.50 |
Oil Seal Protector Washer | 1 | $ 7.50 | ||
| 3 | 09263-30051 Bearing (30x37x26)
SKU: 09263-30051 Weight: 0.140000 Brand: Price: $ 32.73 |
Bearing (30x37x26) | 1 | $ 32.73 | ||
| 4 | 09263-50001 Bearing (50x62x25)
SKU: 09263-50001 Weight: 0.250000 Brand: Price: $ 62.82 |
Bearing (50x62x25) | 1 | $ 62.82 | ||
| 5 | 09280-97001 O-Ring
SKU: 09280-97001 Weight: 0.060000 Brand: Price: $ 4.24 |
O-Ring | 1 | $ 4.24 | ||
| 6 | 09282-30007 Oil Seal (30x50x6)
SKU: 09282-30007 Weight: 0.060000 Brand: Price: $ 8.06 |
Oil Seal (30x50x6) | 2 | $ 8.06 | ||
| 7 | 09387-52001 Set Ring (SUS)
SKU: 09387-52001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | ||
| 8 | 56130-90J00 Drive Shaft Housing
SKU: 56130-90J00 Weight: 0.500000 Brand: Price: $ 85.65 |
Drive Shaft Housing | 1 | $ 85.65 | ||
| 9 | 09280-46004 O-Ring
SKU: 09280-46004 Weight: 0.060000 Brand: Price: $ 3.14 |
O-Ring | 1 | $ 3.14 | ||
| 10 | 09282-24004 Oil Seal (24x40x7)
SKU: 09282-24004 Weight: 0.060000 Brand: Price: $ 6.96 |
Oil Seal (24x40x7) | 2 | $ 6.96 | ||
| 11 | 56140-92J30 Reverse Gear Housing
SKU: 56140-92J30 Weight: 1.000000 Brand: Price: $ 274.06 |
Reverse Gear Housing | 1 | $ 274.06 | ||
| 12 | 09206-09012 Knock Pin
SKU: 09206-09012 Weight: 0.060000 Brand: Price: $ 3.72 |
Knock Pin | 1 | $ 3.72 | ||
| 13 | 09263-45004 Bearing (45x52x16)
SKU: 09263-45004 Weight: 0.100000 Brand: Price: $ 31.99 |
Bearing (45x52x16) | 1 | $ 31.99 | ||
| 14 | 09117-08047 Bolt (8x30)
SKU: 09117-08047 Weight: 0.060000 Brand: Price: $ 5.05 |
Bolt (8x30) | 2 | $ 5.05 | ||
| 15 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 16 | 57110-92J70 Drive Shaft (X)
SKU: 57110-92J70 Weight: 10.000000 Brand: Price: $ 676.01 |
Drive Shaft (X) | 1 | $ 676.01 | ||
| 17 | 57133-90J02 Drive Shaft Collar
SKU: 57133-90J02 Weight: 0.250000 Brand: Price: $ 15.04 |
Drive Shaft Collar | 1 | $ 15.04 | ||
| 18 | 09160-30055 Washer (30x47x6)
SKU: 09160-30055 Weight: 0.062500 Brand: Price: $ 115.57 |
Washer (30x47x6) | 1 | $ 115.57 | Prop Shaft REV | |
| 19 | 09160-30056 Washer (32x47x3)
SKU: 09160-30056 Weight: 0.062500 Brand: Price: $ 36.35 |
Washer (32x47x3) | 1 | $ 36.35 | Prop Shaft REV | |
| 20 | 09269-30014 Thrust Bearing (30x47x2)
SKU: 09269-30014 Weight: 0.060000 Brand: Price: $ 13.67 |
Thrust Bearing (30x47x2) | 1 | $ 13.67 | Prop Shaft REV | |
| 21 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 22 | 57300-92850 Pinion & Gear Set
SKU: 57300-92850 Weight: 6.000000 Brand: Price: $ 985.34 |
Pinion & Gear Set | 1 | $ 985.34 | ||
| 23 | 09140-14024 Nut
SKU: 09140-14024 Weight: 0.060000 Brand: Price: $ 3.04 |
Nut | 1 | $ 3.04 | ||
| 24 | 57500-87873 Drive Shaft Shim Set
SKU: 57500-87873 Weight: 0.250000 Brand: Price: $ 40.67 |
Drive Shaft Shim Set | 1 | $ 40.67 | ||
| 25-1 | 09181-40186 Shim (0.50)
SKU: 09181-40186 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.50) | 1 | $ 4.06 | ||
| 25-2 | 09181-41002 Shim (0.55)
SKU: 09181-41002 Weight: 0.100000 Brand: Price: $ 5.52 |
Shim (0.55) | 1 | $ 5.52 | ||
| 25-3 | 09181-41003 Shim (0.60)
SKU: 09181-41003 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.60) | 1 | $ 6.73 | ||
| 25-4 | 09181-41004 Shim (0.65)
SKU: 09181-41004 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.65) | 1 | $ 6.73 | ||
| 25-5 | 09181-41005 Shim (0.70)
SKU: 09181-41005 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.70) | 1 | $ 6.73 | ||
| 25-6 | 09181-41006 Shim (0.75)
SKU: 09181-41006 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.75) | 1 | $ 6.73 | ||
| 25-7 | 09181-40190 Shim (0.80)
SKU: 09181-40190 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.80) | 1 | $ 4.06 | ||
| 25-8 | 09181-41008 Shim (0.85)
SKU: 09181-41008 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.85) | 1 | $ 6.73 | ||
| 25-9 | 09181-41009 Shim (0.90)
SKU: 09181-41009 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.90) | 1 | $ 6.73 | ||
| 25-10 | 09181-41010 Shim (0.95)
SKU: 09181-41010 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.95) | 1 | $ 6.73 | ||
| 25-11 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 25-12 | 09181-41012 Shim (1.05)
SKU: 09181-41012 Weight: 0.125000 Brand: Price: $ 6.73 |
Shim (1.05) | 1 | $ 6.73 | ||
| 25-13 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 25-14 | 09181-41014 Shim (1.15)
SKU: 09181-41014 Weight: 0.060000 Brand: Price: $ 6.73 |
Shim (1.15) | 1 | $ 6.73 | ||
| 26-1 | 09160-35015 Washer (35x46x0.60)
SKU: 09160-35015 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.60) | 1 | $ 7.36 | Prop Shaft REV | |
| 26-2 | 09160-35014 Washer (35x46x0.70)
SKU: 09160-35014 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.70) | 1 | $ 7.36 | ||
| 26-3 | 09160-35013 Washer (35x46x0.80)
SKU: 09160-35013 Weight: 0.100000 Brand: Price: $ 7.36 |
Washer (35x46x0.80) | 1 | $ 7.36 | ||
| 26-4 | 09160-35006 Washer (35x46x0.90)
SKU: 09160-35006 Weight: 0.100000 Brand: Price: $ 3.68 |
Washer (35x46x0.90) | 1 | $ 3.68 | ||
| 26-5 | 09160-35008 Washer (35x46x0.95)
SKU: 09160-35008 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x0.95) | 1 | $ 4.26 | ||
| 26-6 | 09160-35002 Washer (35x46x1.00)
SKU: 09160-35002 Weight: 0.060000 Brand: Price: $ 3.47 |
Washer (35x46x1.00) | 1 | $ 3.47 | ||
| 26-7 | 09160-35009 Washer (35x46x1.05)
SKU: 09160-35009 Weight: 0.100000 Brand: Price: $ 4.26 |
Washer (35x46x1.05) | 1 | $ 4.26 | ||
| 26-8 | 09160-35003 Washer (35x46x1.10)
SKU: 09160-35003 Weight: 0.060000 Brand: Price: $ 4.26 |
Washer (35x46x1.10) | 1 | $ 4.26 | ||
| 26-9 | 09160-35010 Washer (35x46x1.15)
SKU: 09160-35010 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (35x46x1.15) | 1 | $ 4.13 | ||
| 27 | 09160-60011 Washer (3.00)
SKU: 09160-60011 Weight: 0.100000 Brand: Price: $ 52.08 |
Washer (3.00) | 1 | $ 52.08 | REV Gear | |
| 28-1 | 09160-60008 Washer (0.80) (NLA)
SKU: 09160-60008 Weight: 0.100000 Brand: Price: $ 11.76 |
Washer (0.80) (NLA) | 1 | $ 11.76 | REV Gear | |
| 28-2 | 09160-60009 Washer (0.90)
SKU: 09160-60009 Weight: 0.100000 Brand: Price: $ 15.64 |
Washer (0.90) | 1 | $ 15.64 | ||
| 28-3 | 09160-60003 Washer (1.00)
SKU: 09160-60003 Weight: 0.100000 Brand: Price: $ 16.60 |
Washer (1.00) | 1 | $ 16.60 | ||
| 28-4 | 09160-60004 Washer (1.10)
SKU: 09160-60004 Weight: 0.100000 Brand: Price: $ 21.36 |
Washer (1.10) | 1 | $ 21.36 | ||
| 28-5 | 09160-60005 Washer (1.20)
SKU: 09160-60005 Weight: 0.100000 Brand: Price: $ 16.60 |
Washer (1.20) | 1 | $ 16.60 | ||
| 28-6 | 09160-60006 Washer (1.30)
SKU: 09160-60006 Weight: 0.080000 Brand: Price: $ 22.52 |
Washer (1.30) | 1 | $ 22.52 | ||
| 28-7 | 09160-60007 Washer (1.40)
SKU: 09160-60007 Weight: 0.100000 Brand: Price: $ 21.36 |
Washer (1.40) | 1 | $ 21.36 | ||
| 29 | 09160-70005 Washer (2.00)
SKU: 09160-70005 Weight: 0.100000 Brand: Price: $ 45.17 |
Washer (2.00) | 1 | $ 45.17 | FWD Gear | |
| 30-1 | 09181-70006 Shim (0.60)
SKU: 09181-70006 Weight: 0.100000 Brand: Price: $ 6.25 |
Shim (0.60) | 1 | $ 6.25 | FWD Gear | |
| 30-2 | 09181-70009 Shim (0.65)
SKU: 09181-70009 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.65) | 1 | $ 7.45 | ||
| 30-3 | 09181-70001 Shim (0.70)
SKU: 09181-70001 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.70) | 1 | $ 5.56 | ||
| 30-4 | 09181-70010 Shim (0.75)
SKU: 09181-70010 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.75) | 1 | $ 7.45 | ||
| 30-5 | 09181-70002 Shim (0.80)
SKU: 09181-70002 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.80) | 1 | $ 5.56 | ||
| 30-6 | 09181-70011 Shim (0.85)
SKU: 09181-70011 Weight: 0.100000 Brand: Price: $ 7.45 |
Shim (0.85) | 1 | $ 7.45 | ||
| 30-7 | 09181-70003 Shim (0.90)
SKU: 09181-70003 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (0.90) | 1 | $ 5.56 | ||
| 30-8 | 09181-70012 Shim (0.95)
SKU: 09181-70012 Weight: 0.100000 Brand: Price: $ 11.89 |
Shim (0.95) | 1 | $ 11.89 | ||
| 30-9 | 09181-70004 Shim (1.00)
SKU: 09181-70004 Weight: 0.100000 Brand: Price: $ 5.56 |
Shim (1.00) | 1 | $ 5.56 | ||
| 31 | 09269-60001 Bearing (60x85x3.0)
SKU: 09269-60001 Weight: 0.200000 Brand: Price: $ 39.31 |
Bearing (60x85x3.0) | 1 | $ 39.31 | REV | |
| 32 | 09269-70001 Bearing (70x95x4.0)
SKU: 09269-70001 Weight: 0.180000 Brand: Price: $ 61.10 |
Bearing (70x95x4.0) | 1 | $ 61.10 | FWD | |
| 33 | 57610-92J31 Propeller Shaft Assembly (C/R)
SKU: 57610-92J31 Weight: 4.000000 Brand: Price: $ 524.90 |
Propeller Shaft Assembly (C/R) | 1 | $ 524.90 | ||
| 34 | 57621-92J20 Clutch Dog Shifter
SKU: 57621-92J20 Weight: 0.900000 Brand: Price: $ 137.78 |
Clutch Dog Shifter | 1 | $ 137.78 | ||
| 35 | 57631-92J10 PIN,CONNECTOR
SKU: 57631-92J10 Weight: 0.000000 Brand: Price: $ 34.85 |
PIN,CONNECTOR | 1 | $ 34.85 | ||
| 35A | 09440-09040 Detent Spring
SKU: 09440-09040 Weight: 0.100000 Brand: Price: $ 2.82 |
Detent Spring | 1 | $ 2.82 | ||
| 35B | 06111-07004 STEEL BALL 7/32
SKU: 06111-07004 Weight: 0.060000 Brand: Price: $ 1.24 |
STEEL BALL 7/32 | 2 | $ 1.24 | ||
| 35C | 06111-11004 BALL
SKU: 06111-11004 Weight: 0.060000 Brand: Price: $ 1.87 |
BALL | 2 | $ 1.87 | ||
| 36 | 09202-07002 Pin (7x48)
SKU: 09202-07002 Weight: 0.060000 Brand: Price: $ 4.25 |
Pin (7x48) | 1 | $ 4.25 | ||
| 37 | 09440-49004 Clutch Dog Spring
SKU: 09440-49004 Weight: 0.060000 Brand: Price: $ 3.09 |
Clutch Dog Spring | 1 | $ 3.09 | ||
| 38 | 57616-92J00 Clutch Dog Forward Spacer (NLA)
SKU: 57616-92J00 Weight: 0.125000 Brand: Price: $ 40.20 |
Clutch Dog Forward Spacer (NLA) | 1 | $ 40.20 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
