Suzuki DF 225 Parts Listings - 2017
S/N 22503F-710001 to 22503F-71XXXX
S/N 22503Z-710001 to 22503Z-71XXXX

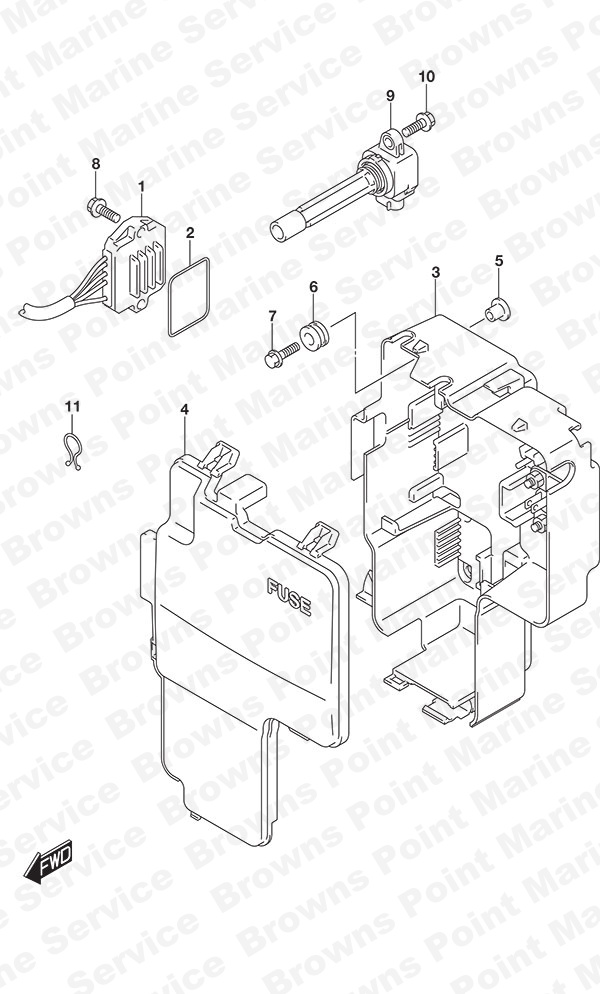

Fig. 310 - Rectifier/Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-93J03 Rectifier & Regulator
SKU: 32800-93J03 Weight: 0.500000 Brand: Price: $ 245.73 |
Rectifier & Regulator | 2 | $ 245.73 | ||
| 2 | 32805-93J00 Rectifier & Regulator O-Ring
SKU: 32805-93J00 Weight: 0.060000 Brand: Price: $ 3.75 |
Rectifier & Regulator O-Ring | 2 | $ 3.75 | ||
| 3 | 32890-93J01 Electric Parts Holder*
SKU: 32890-93J01 Weight: 0.700000 Brand: Price: $ 25.22 |
Electric Parts Holder* | 1 | $ 25.22 | ||
| 4 | 32891-93J00 Electric Parts Holder Cover
SKU: 32891-93J00 Weight: 0.280000 Brand: Price: $ 21.38 |
Electric Parts Holder Cover | 1 | $ 21.38 | ||
| 5 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 4 | $ 2.52 | ||
| 6 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 4 | $ 1.97 | ||
| 7 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 4 | $ 3.54 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 9 | 33410-93J00 Ignition Coil Assembly
SKU: 33410-93J00 Weight: 0.250000 Brand: Price: $ 139.04 |
Ignition Coil Assembly | 6 | $ 139.04 | ||
| 10 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 6 | $ 2.04 | ||
| 11 | 09408-00021 Clamp (NLA)
SKU: 09408-00021 Weight: 0.100000 Brand: Price: $ 0.85 |
Clamp (NLA) | 1 | $ 0.85 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
