Suzuki DF 115 Parts Listings 2001 to S/N 11502F-11XXXX 2008 to S/N 11502Z-11XXXX

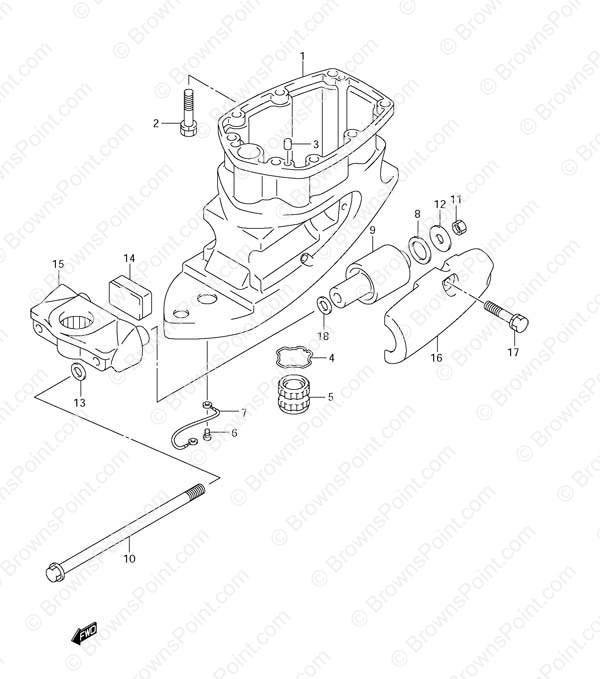

Fig. 40 - Drive Shaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-90J02-0EP Drive Shaft Housing (L)
SKU: 52111-90J02-0EP Weight: 18.000000 Brand: Price: $ 716.85 |
Drive Shaft Housing (L) | 1 | $ 716.85 | Type:L | |
| 1-2 | 52111-90J12-0EP Drive Shaft Housing (X)
SKU: 52111-90J12-0EP Weight: 18.000000 Brand: Price: $ 960.90 |
Drive Shaft Housing (X) | 1 | $ 960.90 | Type:X | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 8 | $ 6.81 | ||
| 3 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 4 | 09387-45001 Set Ring (SUS)
SKU: 09387-45001 Weight: 0.060000 Brand: Price: $ 2.81 |
Set Ring (SUS) | 1 | $ 2.81 | Type:X | |
| 5 | 57130-94501 Drive Shaft Bushing
SKU: 57130-94501 Weight: 0.250000 Brand: Price: $ 59.33 |
Drive Shaft Bushing | 1 | $ 59.33 | Type:X | |
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 7-1 | 36895-87D01 Wire Lead (L:210)
SKU: 36895-87D01 Weight: 0.060000 Brand: Price: $ 14.20 |
Wire Lead (L:210) | 1 | $ 14.20 | Swivel Bracket to Housing | |
| 7-2 | 36895-87D10 Wire Lead (L:310)
SKU: 36895-87D10 Weight: 0.060000 Brand: Price: $ 11.80 |
Wire Lead (L:310) | 1 | $ 11.80 | Swivel Bracket to Housing S/N 681518 Newer | |
| 8 | 54121-87D01 Damper
SKU: 54121-87D01 Weight: 0.250000 Brand: Price: $ 4.41 |
Damper | 2 | $ 4.41 | ||
| 9 | 54160-90J00 Lower Mount
SKU: 54160-90J00 Weight: 0.500000 Brand: Price: $ 88.55 |
Lower Mount | 2 | $ 88.55 | ||
| 10 | 54166-90J11 Lower Mount Bolt
SKU: 54166-90J11 Weight: 0.100000 Brand: Price: $ 45.81 |
Lower Mount Bolt | 2 | $ 45.81 | ||
| 11 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 12 | 09160-12112 Washer (12x40x3.0)
SKU: 09160-12112 Weight: 0.060000 Brand: Price: $ 5.18 |
Washer (12x40x3.0) | 2 | $ 5.18 | ||
| 13 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | ||
| 14 | 54151-90J00 Lower Thrust Mount
SKU: 54151-90J00 Weight: 0.100000 Brand: Price: $ 10.57 |
Lower Thrust Mount | 1 | $ 10.57 | ||
| 15 | 54211-90J01-0EP Lower Mount Bracket
SKU: 54211-90J01-0EP Weight: 1.000000 Brand: Price: $ 141.38 |
Lower Mount Bracket | 1 | $ 141.38 | ||
| 16 | 54221-90J02-0EP Lower Mount Cover
SKU: 54221-90J02-0EP Weight: 0.500000 Brand: Price: $ 103.74 |
Lower Mount Cover | 2 | $ 103.74 | ||
| 17 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 6 | $ 6.81 | ||
| 18 | 09160-12113 Washer (12.5x30x2.5)
SKU: 09160-12113 Weight: 0.060000 Brand: Price: $ 3.54 |
Washer (12.5x30x2.5) | 2 | $ 3.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
