Suzuki DF 200AP Parts Listings - 2017
S/N 20003P-710001 to 20003P-71XXXX

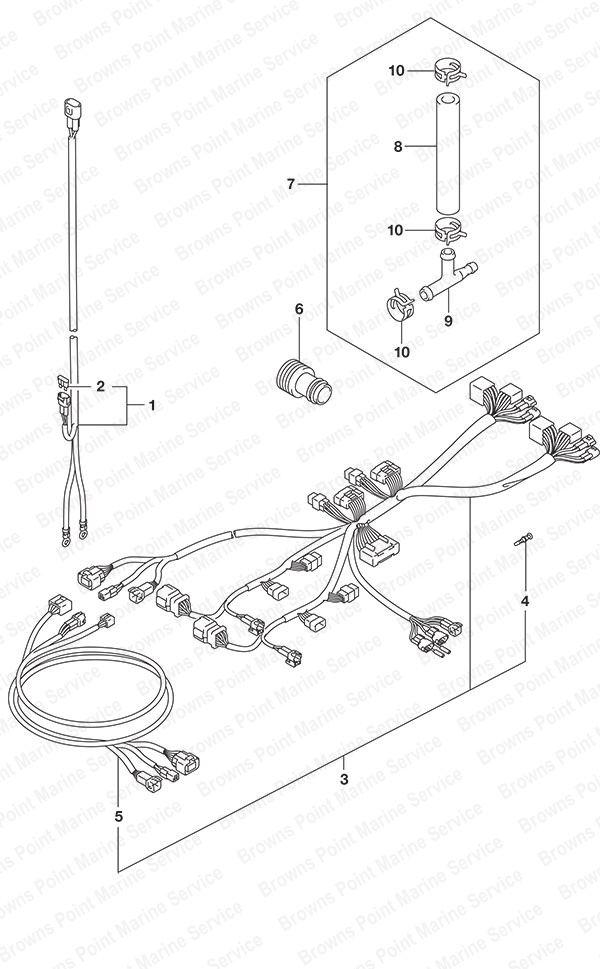

Fig. 523 - Opt: Harness (2)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 36625-98J10 Battery Wire Assembly
SKU: 36625-98J10 Weight: 0.500000 Brand: Price: $ 94.03 |
Battery Wire Assembly | 1 | $ 94.03 | ||
| 2 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 3 | 36623-98J40 BCM Harness No 1
SKU: 36623-98J40 Weight: 1.000000 Brand: Price: $ 913.69 |
BCM Harness No 1 | 1 | $ 913.69 | Quadruple | |
| 4 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 8 | $ 1.31 | ||
| 5 | 36627-98J00 Harness Extension
SKU: 36627-98J00 Weight: 2.000000 Brand: Price: $ 0.00 |
Harness Extension | 2 | $ 0.00 | ||
| 6 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 | ||
| 7 | 34660-96J01 Water Pressure Gauge Install Kit
SKU: 34660-96J01 Weight: 0.250000 Brand: Price: $ 18.18 |
Water Pressure Gauge Install Kit | 1 | $ 18.18 | ||
| 8 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->70 | |
| 9 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 10 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 3 | $ 2.09 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
