Suzuki DF 200AP Parts Listings - 2017
S/N 20003P-710001 to 20003P-71XXXX

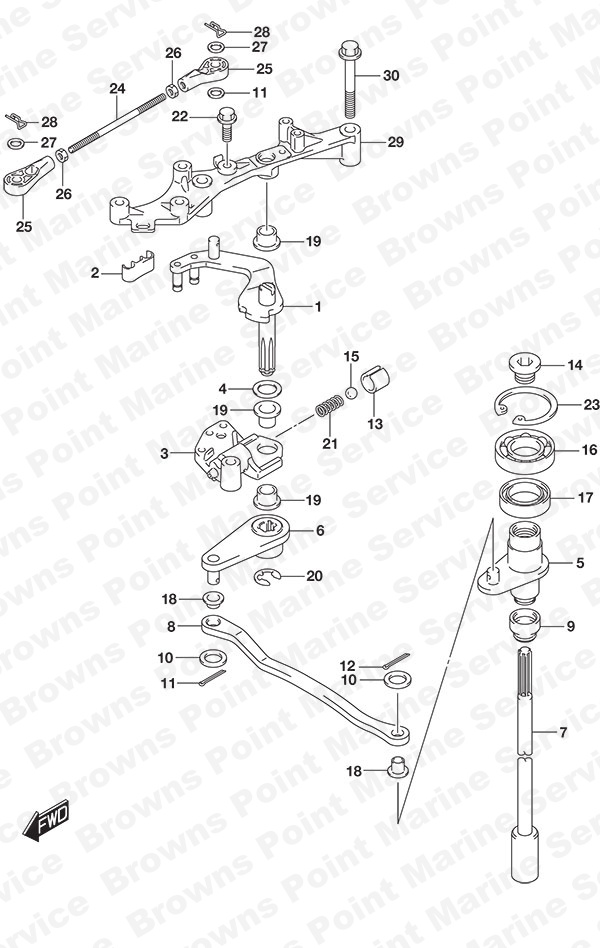

Fig. 204 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21110-96J11 Clutch Lever
SKU: 21110-96J11 Weight: 0.250000 Brand: Price: $ 92.00 |
Clutch Lever | 1 | $ 92.00 | ||
| 1 | 21110-96J11 Clutch Lever
SKU: 21110-96J11 Weight: 0.250000 Brand: Price: $ 92.00 |
Clutch Lever | 1 | $ 92.00 | ||
| 2 | 21131-93J00 Clutch Lever Bushing
SKU: 21131-93J00 Weight: 0.060000 Brand: Price: $ 1.72 |
Clutch Lever Bushing | 1 | $ 1.72 | ||
| 3 | 21151-93J00 Clutch Lever Holder
SKU: 21151-93J00 Weight: 0.100000 Brand: Price: $ 38.79 |
Clutch Lever Holder | 1 | $ 38.79 | ||
| 4 | 09160-10148 Washer (10x20x3)
SKU: 09160-10148 Weight: 0.100000 Brand: Price: $ 3.11 |
Washer (10x20x3) | 1 | $ 3.11 | ||
| 5 | 21210-98J01 Clutch Shaft
SKU: 21210-98J01 Weight: 0.250000 Brand: Price: $ 69.01 |
Clutch Shaft | 1 | $ 69.01 | ||
| 6 | 21230-98J01 Clutch Shaft Arm
SKU: 21230-98J01 Weight: 0.125000 Brand: Price: $ 41.91 |
Clutch Shaft Arm | 1 | $ 41.91 | ||
| 7-1 | 23111-96J00 Clutch Rod (L)
SKU: 23111-96J00 Weight: 5.000000 Brand: Price: $ 83.12 |
Clutch Rod (L) | 1 | $ 83.12 | w/Transom (L) | |
| 7-2 | 23111-93J00 Clutch Rod (X, XX)
SKU: 23111-93J00 Weight: 1.000000 Brand: Price: $ 84.47 |
Clutch Rod (X, XX) | 1 | $ 84.47 | w/Transom (X) | |
| 8 | 23115-96J10 Clutch Lever Link
SKU: 23115-96J10 Weight: 0.200000 Brand: Price: $ 23.10 |
Clutch Lever Link | 1 | $ 23.10 | ||
| 9 | 25223-96J00 Seal, Shift Rod Dust
SKU: 25223-96J00 Weight: 0.060000 Brand: Price: $ 5.56 |
Seal, Shift Rod Dust | 1 | $ 5.56 | ||
| 10 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 2 | $ 1.44 | ||
| 11 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 1 | $ 1.70 | ||
| 12 | 09204-01006 Cotter Pin
SKU: 09204-01006 Weight: 0.060000 Brand: Price: $ 1.40 |
Cotter Pin | 2 | $ 1.40 | ||
| 13 | 09205-10006 Pin (10.2x10)
SKU: 09205-10006 Weight: 0.060000 Brand: Price: $ 4.47 |
Pin (10.2x10) | 1 | $ 4.47 | ||
| 14 | 09248-12011 Plug (12x9)
SKU: 09248-12011 Weight: 0.250000 Brand: Price: $ 4.96 |
Plug (12x9) | 1 | $ 4.96 | ||
| 15 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 16 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 17 | 09289-18001 Clutch Shaft Seal
SKU: 09289-18001 Weight: 0.060000 Brand: Price: $ 22.80 |
Clutch Shaft Seal | 1 | $ 22.80 | ||
| 18 | 09306-06005 Bushing
SKU: 09306-06005 Weight: 0.100000 Brand: Price: $ 4.24 |
Bushing | 2 | $ 4.24 | ||
| 19 | 09306-10001 Bushing
SKU: 09306-10001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 3 | $ 2.81 | ||
| 20 | 09383-08004 E Ring
SKU: 09383-08004 Weight: 0.060000 Brand: Price: $ 0.91 |
E Ring | 1 | $ 0.91 | ||
| 21 | 09440-07051 Spring
SKU: 09440-07051 Weight: 0.060000 Brand: Price: $ 1.60 |
Spring | 1 | $ 1.60 | ||
| 22 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 23 | 08331-41359 Circlip
SKU: 08331-41359 Weight: 0.060000 Brand: Price: $ 2.27 |
Circlip | 1 | $ 2.27 | ||
| 24 | 21241-98J00 Clutch Lever Link No. 2
SKU: 21241-98J00 Weight: 0.125000 Brand: Price: $ 8.95 |
Clutch Lever Link No. 2 | 1 | $ 8.95 | ||
| 25 | 67467-89J01 Cable Connector
SKU: 67467-89J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Cable Connector | 2 | $ 7.75 | ||
| 26 | 67471-99E00 Remote Control Nut
SKU: 67471-99E00 Weight: 0.060000 Brand: Price: $ 3.35 |
Remote Control Nut | 2 | $ 3.35 | ||
| 27 | 09160-06055 Washer (7x12x1.0)
SKU: 09160-06055 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (7x12x1.0) | 2 | $ 1.70 | ||
| 28 | 09385-06012 Clip
SKU: 09385-06012 Weight: 0.060000 Brand: Price: $ 1.91 |
Clip | 2 | $ 1.91 | ||
| 29 | 19115-96J10 Clutch Lever Holder
SKU: 19115-96J10 Weight: 0.250000 Brand: Price: $ 83.94 |
Clutch Lever Holder | 1 | $ 83.94 | ||
| 30 | 01550-08507 BOLT
SKU: 01550-08507 Weight: 0.060000 Brand: Price: $ 3.61 |
BOLT | 2 | $ 3.61 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
