Suzuki DF 200AP Parts Listings - 2017
S/N 20003P-710001 to 20003P-71XXXX

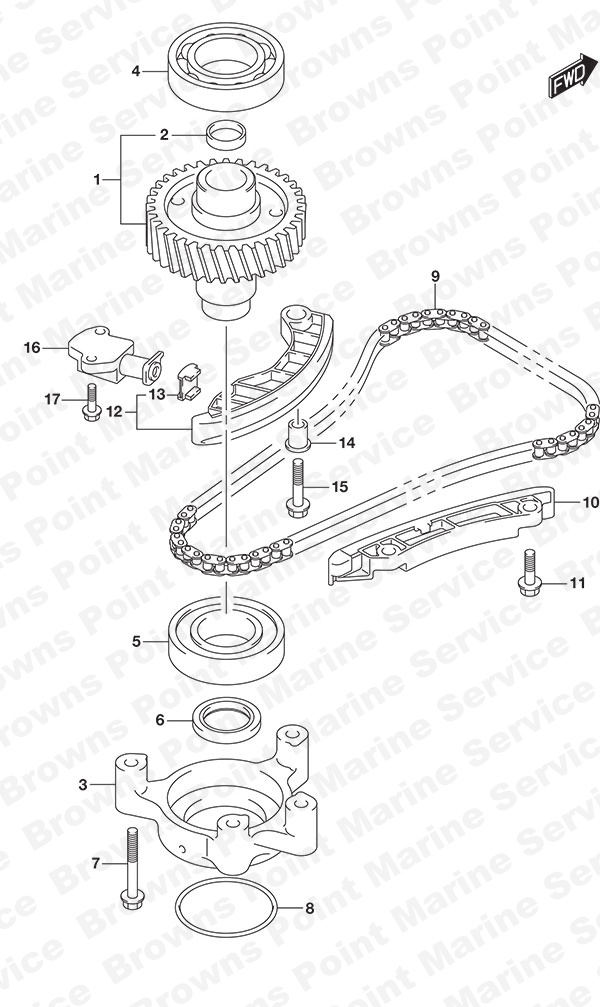

Fig. 119 - Timing Chain
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12730-96J01 Driven Gear
SKU: 12730-96J01 Weight: 4.000000 Brand: Price: $ 260.26 |
Driven Gear | 1 | $ 260.26 | ||
| 2 | 09241-25005 Plug
SKU: 09241-25005 Weight: 0.250000 Brand: Price: $ 3.91 |
Plug | 1 | $ 3.91 | ||
| 3 | 12734-96J01 Driven Gear Holder
SKU: 12734-96J01 Weight: 1.000000 Brand: Price: $ 69.14 |
Driven Gear Holder | 1 | $ 69.14 | ||
| 4 | 08110-62080 BEARING,UPPER
SKU: 08110-62080 Weight: 1.000000 Brand: Price: $ 40.21 |
BEARING,UPPER | 1 | $ 40.21 | ||
| 5 | 09262-40021 Bearing (40x80x18)
SKU: 09262-40021 Weight: 1.000000 Brand: Price: $ 105.07 |
Bearing (40x80x18) | 1 | $ 105.07 | ||
| 6 | 09283-32044 Oil Seal (32x47x6)
SKU: 09283-32044 Weight: 0.060000 Brand: Price: $ 19.24 |
Oil Seal (32x47x6) | 1 | $ 19.24 | ||
| 7 | 09103-08339 Bolt (8x55)
SKU: 09103-08339 Weight: 0.100000 Brand: Price: $ 3.54 |
Bolt (8x55) | 4 | $ 3.54 | ||
| 8 | 09280-70012 O-Ring
SKU: 09280-70012 Weight: 0.060000 Brand: Price: $ 18.39 |
O-Ring | 1 | $ 18.39 | ||
| 9 | 12761-96J00 Timing Chain
SKU: 12761-96J00 Weight: 1.000000 Brand: Price: $ 101.48 |
Timing Chain | 1 | $ 101.48 | ||
| 10 | 12772-96J00 Timing Chain Guide
SKU: 12772-96J00 Weight: 0.100000 Brand: Price: $ 80.05 |
Timing Chain Guide | 1 | $ 80.05 | ||
| 11 | 01550-0825A BOLT
SKU: 01550-0825A Weight: 0.100000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 12 | 12810-96J00 Timing Chain Tensioner
SKU: 12810-96J00 Weight: 0.250000 Brand: Price: $ 87.33 |
Timing Chain Tensioner | 1 | $ 87.33 | ||
| 13 | 12813-73G00 Timing Chain Tensioner Pad
SKU: 12813-73G00 Weight: 0.100000 Brand: Price: $ 4.09 |
Timing Chain Tensioner Pad | 1 | $ 4.09 | ||
| 14 | 12812-90J00 Timing Chain Tensioner Spacer
SKU: 12812-90J00 Weight: 0.100000 Brand: Price: $ 7.10 |
Timing Chain Tensioner Spacer | 1 | $ 7.10 | ||
| 15 | 01550-0835A BOLT
SKU: 01550-0835A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 1 | $ 3.09 | ||
| 16 | 12831-93J01 Tensioner Adjuster Assembly
SKU: 12831-93J01 Weight: 0.250000 Brand: Price: $ 100.53 |
Tensioner Adjuster Assembly | 1 | $ 100.53 | ||
| 17 | 01550-0620A BOLT
SKU: 01550-0620A Weight: 0.060000 Brand: Price: $ 1.97 |
BOLT | 2 | $ 1.97 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
