Suzuki DF 200A Parts Listings - 2017
S/N 20003F-710001 to 20003F-71XXXX
S/N 20003Z-710001 to 20003Z-71XXXX

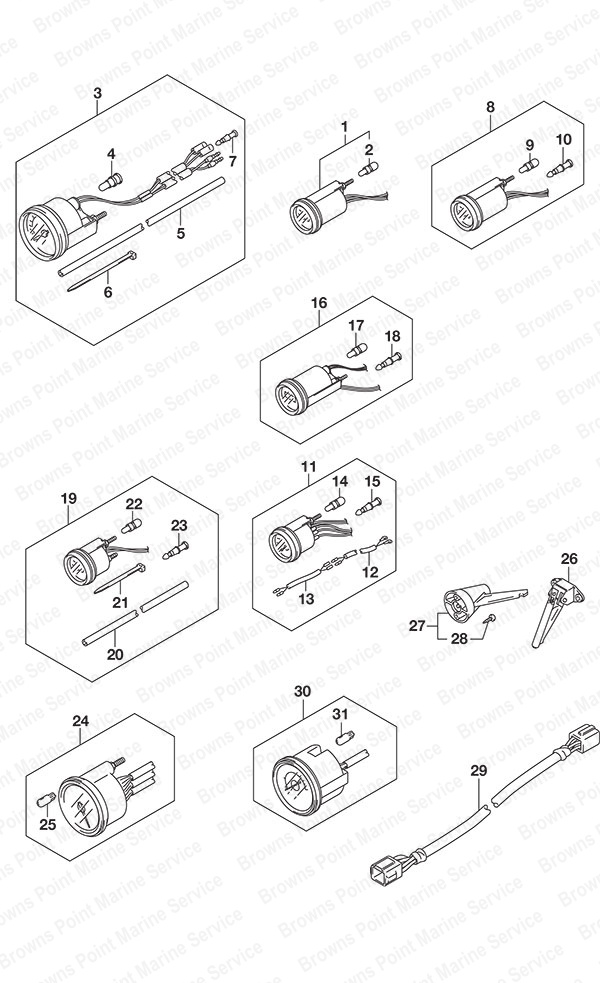

Fig. 501 - Opt: Meter

Ref# Part Number Description Req Qty* Price Each Order Remarks
1-1 34800-93J02 Black Trim Gauge 1 $ 101.46
1-2 34800-93J13 White Trim Gauge 1 $ 105.52
2 09471-12108 Bulb (12v 1.7w) 1 $ 3.48
3-1 34100-93J00 Black Speedometer 0-80 MPH 1 $ 156.43
3-2 34100-93J13 White Speedometer 0-80 MPH 1 $ 184.74
3-3 34100-93J22 Black Speedometer 0-50 MPH 1 $ 184.74
3-4 34100-93J33 White Speedometer 0-50 MPH 1 $ 184.74
4 09471-12028 Bulb (12v, 3.4w) 1 $ 1.99
5 34191-92E00 Water Pressure Tubing 1 $ 33.64
6 09407-14407 Clamp (L:140) 2 $ 3.09
7 36615-96300 Resin Terminal 2 $ 1.31
8-1 34600-93J02 Black Voltmeter 1 $ 115.67
8-2 34600-93J13 White Voltmeter 1 $ 115.67
9 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
10 36615-96300 Resin Terminal 4 $ 1.31
11-1 34300-93J02 Black Fuel Gauge 1 $ 173.44
11-2 34300-93J13 White Fuel Gauge 1 $ 173.44
12 34310-92E00 Fuel Gauge Lead (NLA) 1 $ 41.14

Not Available

13 34360-92E00 Adapter Harness (NLA) 1 $ 31.27

Not Available

14 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
15 36615-96300 Resin Terminal 5 $ 1.31
16-1 34500-93J02 Black Hour Meter 1 $ 164.43
16-2 34500-93J13 White Hour Meter 1 $ 164.43
17 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
18 36615-96300 Resin Terminal 4 $ 1.31
19-1 34650-93J20 Black Water Pressure Gauge* 1 $ 166.77

Not Available

15 psi
19-2 34650-93J33 White Water Pressure Gauge 1 $ 178.64
15 psi
20 34191-92E00 Water Pressure Tubing 1 $ 33.64
21 09407-14407 Clamp (L:140) 2 $ 3.09
22 09471-12103 Bulb (12v, 3.4w) 1 $ 3.90
23 36615-96300 Resin Terminal 2 $ 1.31
24-1 34200-93J02 Black Tachometer w/Monitor Function 1 $ 209.11
24-2 34200-93J14 Tachometer w/Monitor - White 1 $ 205.39
25 09471-12077 Bulb (12v, 1.7w) 1 $ 3.61
26 34190-87D00 Speedometer Sensor 1 $ 44.58
27 34190-95500 Speedometer Sensor (NLA) 1 $ 42.08

Not Available

28 03112-0630B Screw 2 $ 0.00
29 36682-92E00 Wire Harness 1 $ 82.25
L:6500
30-1 34200-93J43 Black Tachometer w/Troll Mode Scale 1 $ 223.34
30-2 34200-93J54 White Tachometer w/Troll Mode Scale 1 $ 200.44
31 09471-12077 Bulb (12v, 1.7w) 1 $ 3.61

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
