Suzuki DF 115 Parts Listings DF 115T (2001 to 2003)

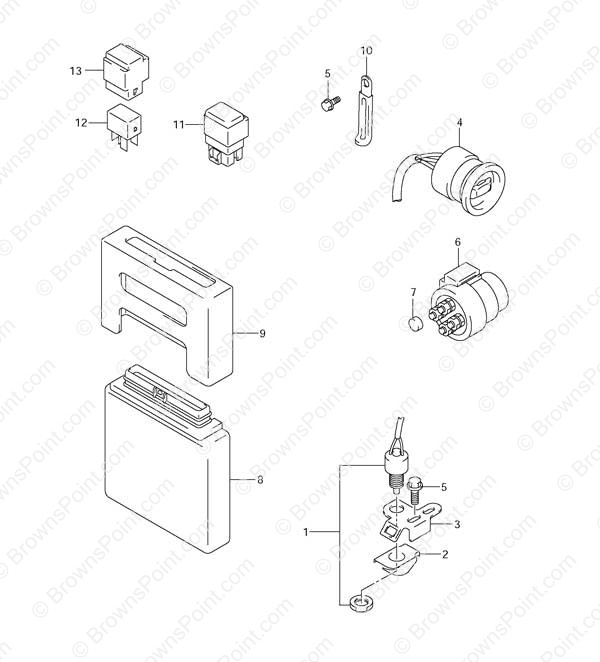

Fig. 32 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 37721-99E02 Neutral Switch Assembly
SKU: 37721-99E02 Weight: 0.120000 Brand: Price: $ 34.40 |
Neutral Switch Assembly | 1 | $ 34.40 | ||
| 1-2 | 37721-99E12 Neutral Switch Assembly
SKU: 37721-99E12 Weight: 0.120000 Brand: Price: $ 33.90 |
Neutral Switch Assembly | 1 | $ 33.90 | 2003 | |
| 2 | 37725-95600 Switch Actuator
SKU: 37725-95600 Weight: 0.060000 Brand: Price: $ 5.35 |
Switch Actuator | 1 | $ 5.35 | ||
| 3 | 37726-90J00 Switch Bracket
SKU: 37726-90J00 Weight: 0.060000 Brand: Price: $ 4.48 |
Switch Bracket | 1 | $ 4.48 | ||
| 4 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 5 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 6 | 38410-94552 PTT Relay Assembly
SKU: 38410-94552 Weight: 0.500000 Brand: Price: $ 140.10 |
PTT Relay Assembly | 2 | $ 140.10 | ||
| 7 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 1 | $ 3.56 | ||
| 8 | 33920-90JB4 Engine Control Unit
SKU: 33920-90JB4 Weight: 2.000000 Brand: Price: $ 2,055.88 |
Engine Control Unit | 1 | $ 2,055.88 | ||
| 9 | 33925-87J00 ECU Cushion
SKU: 33925-87J00 Weight: 0.100000 Brand: Price: $ 20.42 |
ECU Cushion | 1 | $ 20.42 | ||
| 10 | 09404-06432 Clamp (L:65)*
SKU: 09404-06432 Weight: 0.060000 Brand: Price: $ 1.86 |
Clamp (L:65)* | 2 | $ 1.86 | ||
| 11 | 38910-92E00 Relay
SKU: 38910-92E00 Weight: 0.080000 Brand: Price: $ 44.21 |
Relay | 1 | $ 44.21 | ||
| 12 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | 2003 | |
| 13 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | 2003 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
