Suzuki DF 115 Parts Listings 2001 to S/N 11502F-11XXXX 2008 to S/N 11502Z-11XXXX

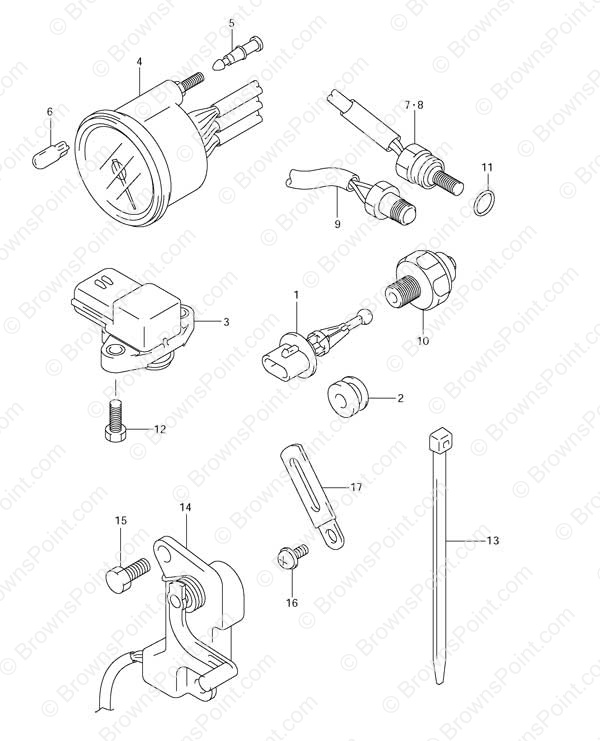

Fig. 30 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-52G00 Inlet Air Temp Sensor
SKU: 13650-52G00 Weight: 0.060000 Brand: Price: $ 113.36 |
Inlet Air Temp Sensor | 1 | $ 113.36 | ||
| 2 | 13655-87J01 Air Temp Sensor Grommet
SKU: 13655-87J01 Weight: 0.125000 Brand: Price: $ 2.91 |
Air Temp Sensor Grommet | 1 | $ 2.91 | ||
| 3-1 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 297.49 |
MAP Sensor | 1 | $ 297.49 | ||
| 3-2 | 18590-68H00 MAP Sensor
SKU: 18590-68H00 Weight: 0.120000 Brand: Price: $ 297.49 |
MAP Sensor | 1 | $ 297.49 | 2008 Newer | |
| 4 | 34200-99E01 Tachometer (NLA)
SKU: 34200-99E01 Weight: 0.100000 Brand: Price: $ 175.60 |
Tachometer (NLA) | 1 | $ 175.60 | ||
| 5 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 4 | $ 1.31 | ||
| 6 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 7 | 34830-87JA0 Temp Sensor Assy
SKU: 34830-87JA0 Weight: 0.060000 Brand: Price: $ 79.78 |
Temp Sensor Assy | 1 | $ 79.78 | Exhaust Temp 2001 to 2003 | |
| 8 | 34830-87JA0 Temp Sensor Assy
SKU: 34830-87JA0 Weight: 0.060000 Brand: Price: $ 79.78 |
Temp Sensor Assy | 1 | $ 79.78 | 2001 to 2003 | |
| 9 | 34830-87J20 Temp Sensor Assy
SKU: 34830-87J20 Weight: 0.060000 Brand: Price: $ 71.57 |
Temp Sensor Assy | 2 | $ 71.57 | Exhaust Temp 2004 Newer | |
| 10 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 11 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 2 | $ 3.76 | 2001 to 2003 | |
| 12 | 02162-05207 SCREW
SKU: 02162-05207 Weight: 0.060000 Brand: Price: $ 1.95 |
SCREW | 2 | $ 1.95 | ||
| 13-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | For Temp Sensor | |
| 13-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | For Trim Sender | |
| 14 | 34801-99E05 Trim Sender
SKU: 34801-99E05 Weight: 1.000000 Brand: Price: $ 221.38 |
Trim Sender | 1 | $ 221.38 | ||
| 15 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 16 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 17 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
