Suzuki DF 200AP Parts Listings - 2016
S/N 20003P-610001 to 20003P-61XXXX

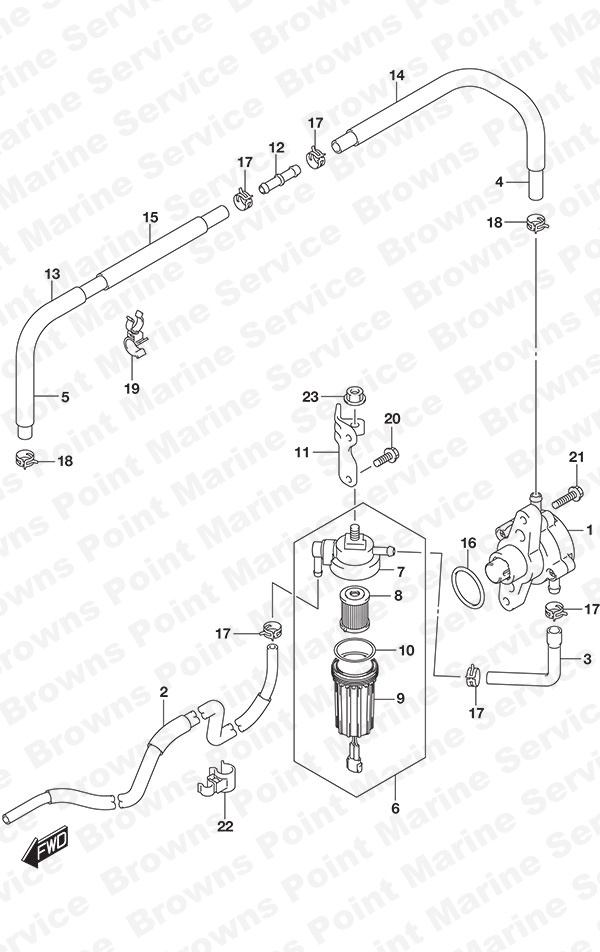

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-96J01 Fuel Pump Assembly
SKU: 15100-96J01 Weight: 0.500000 Brand: Price: $ 179.71 |
Fuel Pump Assembly | 1 | $ 179.71 | ||
| 2 | 15190-96L01 Fuel Hose
SKU: 15190-96L01 Weight: 0.750000 Brand: Price: $ 117.99 |
Fuel Hose | 1 | $ 117.99 | Connector to Filter | |
| 3 | 15192-96L00 Fuel Hose
SKU: 15192-96L00 Weight: 0.500000 Brand: Price: $ 21.13 |
Fuel Hose | 1 | $ 21.13 | Filter to Pump | |
| 4 | 15193-96J11 Fuel Hose
SKU: 15193-96J11 Weight: 0.220000 Brand: Price: $ 27.80 |
Fuel Hose | 1 | $ 27.80 | Pump to 2 Way | |
| 5 | 15194-96J11 Fuel Hose
SKU: 15194-96J11 Weight: 0.500000 Brand: Price: $ 31.27 |
Fuel Hose | 1 | $ 31.27 | 2 Way to Separator | |
| 6 | 15410-92J01 Fuel Filter Assembly
SKU: 15410-92J01 Weight: 1.000000 Brand: Price: $ 156.73 |
Fuel Filter Assembly | 1 | $ 156.73 | ||
| 7 | 15411-92J00 Fuel Filter Cap
SKU: 15411-92J00 Weight: 0.250000 Brand: Price: $ 48.28 |
Fuel Filter Cap | 1 | $ 48.28 | ||
| 8 | 15412-92J00 Fuel Filter
SKU: 15412-92J00 Weight: 0.180000 Brand: Price: $ 23.03 |
Fuel Filter | 1 | $ 23.03 | ||
| 9 | 15413-92J00 Fuel Filter Case
SKU: 15413-92J00 Weight: 0.250000 Brand: Price: $ 79.10 |
Fuel Filter Case | 1 | $ 79.10 | ||
| 10 | 15415-92J00 Fuel Filter Seal
SKU: 15415-92J00 Weight: 0.060000 Brand: Price: $ 8.50 |
Fuel Filter Seal | 1 | $ 8.50 | ||
| 11 | 15421-96L00 Fuel Filter Bracket
SKU: 15421-96L00 Weight: 0.250000 Brand: Price: $ 7.62 |
Fuel Filter Bracket | 1 | $ 7.62 | ||
| 12 | 15831-96J00 2 Way Union
SKU: 15831-96J00 Weight: 0.100000 Brand: Price: $ 7.13 |
2 Way Union | 1 | $ 7.13 | ||
| 13 | 18498-96L01 Hose Protector (13.5x16.5x240)
SKU: 18498-96L01 Weight: 0.250000 Brand: Price: $ 5.50 |
Hose Protector (13.5x16.5x240) | 1 | $ 5.50 | ||
| 14 | 18498-96J21 Hose Protector (13.5x16.5x370)
SKU: 18498-96J21 Weight: 0.250000 Brand: Price: $ 6.62 |
Hose Protector (13.5x16.5x370) | 1 | $ 6.62 | ||
| 15 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->280 | |
| 16 | 09280-33004 O-Ring
SKU: 09280-33004 Weight: 0.060000 Brand: Price: $ 2.27 |
O-Ring | 1 | $ 2.27 | ||
| 17 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 5 | $ 2.09 | ||
| 18 | 09401-13424 Clip
SKU: 09401-13424 Weight: 0.060000 Brand: Price: $ 2.16 |
Clip | 2 | $ 2.16 | ||
| 19 | 09408-00105 Clamp
SKU: 09408-00105 Weight: 0.100000 Brand: Price: $ 4.27 |
Clamp | 2 | $ 4.27 | ||
| 20 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 21 | 09103-06211 Bolt (6x25)
SKU: 09103-06211 Weight: 0.060000 Brand: Price: $ 2.88 |
Bolt (6x25) | 2 | $ 2.88 | ||
| 22 | 09408-00198 Clamp
SKU: 09408-00198 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 2 | $ 0.00 | ||
| 23 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
