Suzuki DF 115 Parts Listings DF 115T (S/N 681517 & Older)

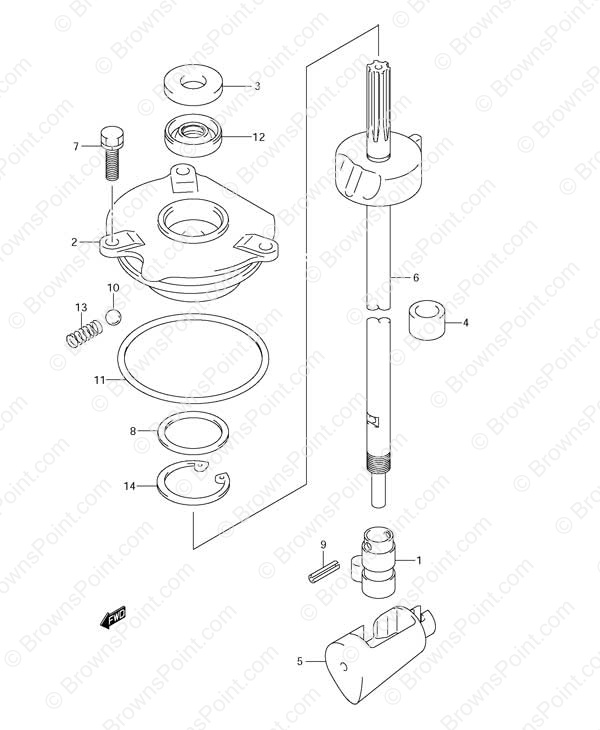

Fig. 23 - Clutch Rod
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 25131-90J01 Shifter Yoke
SKU: 25131-90J01 Weight: 0.800000 Brand: Price: $ 56.27 |
Shifter Yoke | 1 | $ 56.27 | ||
| 2 | 25141-90J03 Shift Rod Housing
SKU: 25141-90J03 Weight: 0.340000 Brand: Price: $ 51.54 |
Shift Rod Housing | 1 | $ 51.54 | ||
| 3 | 25222-90J01 Shift Guide Cover Seal
SKU: 25222-90J01 Weight: 0.060000 Brand: Price: $ 1.57 |
Shift Guide Cover Seal | 1 | $ 1.57 | ||
| 4 | 25232-90J00 Gear Case Magnet
SKU: 25232-90J00 Weight: 0.100000 Brand: Price: $ 6.49 |
Gear Case Magnet | 1 | $ 6.49 | ||
| 5 | 25321-90J00 Horizontal Shift Slider
SKU: 25321-90J00 Weight: 0.100000 Brand: Price: $ 102.53 |
Horizontal Shift Slider | 1 | $ 102.53 | ||
| 6-1 | 25350-90J01 Shift Assist Rod (L)
SKU: 25350-90J01 Weight: 0.500000 Brand: Price: $ 129.09 |
Shift Assist Rod (L) | 1 | $ 129.09 | ||
| 6-2 | 25350-90J11 Shift Assist Rod (X)
SKU: 25350-90J11 Weight: 0.100000 Brand: Price: $ 134.46 |
Shift Assist Rod (X) | 1 | $ 134.46 | ||
| 7 | 09117-06031 Bolt (6x20)
SKU: 09117-06031 Weight: 0.060000 Brand: Price: $ 3.53 |
Bolt (6x20) | 3 | $ 3.53 | ||
| 8 | 09160-30037 Thrust Washer (1.90)
SKU: 09160-30037 Weight: 0.100000 Brand: Price: $ 4.57 |
Thrust Washer (1.90) | 1 | $ 4.57 | ||
| 9 | 09205-04014 Pin
SKU: 09205-04014 Weight: 0.060000 Brand: Price: $ 1.65 |
Pin | 1 | $ 1.65 | ||
| 10 | 09260-10005 Ball
SKU: 09260-10005 Weight: 0.060000 Brand: Price: $ 1.86 |
Ball | 1 | $ 1.86 | ||
| 11 | 09280-69001 O-Ring
SKU: 09280-69001 Weight: 0.060000 Brand: Price: $ 3.73 |
O-Ring | 1 | $ 3.73 | ||
| 12 | 09283-10011 Oil Seal (10x22x8)
SKU: 09283-10011 Weight: 0.060000 Brand: Price: $ 5.87 |
Oil Seal (10x22x8) | 1 | $ 5.87 | ||
| 13 | 09440-07033 Cam Notch Spring
SKU: 09440-07033 Weight: 0.060000 Brand: Price: $ 1.51 |
Cam Notch Spring | 1 | $ 1.51 | ||
| 14 | 08331-4138A Circlip
SKU: 08331-4138A Weight: 0.060000 Brand: Price: $ 2.43 |
Circlip | 1 | $ 2.43 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
